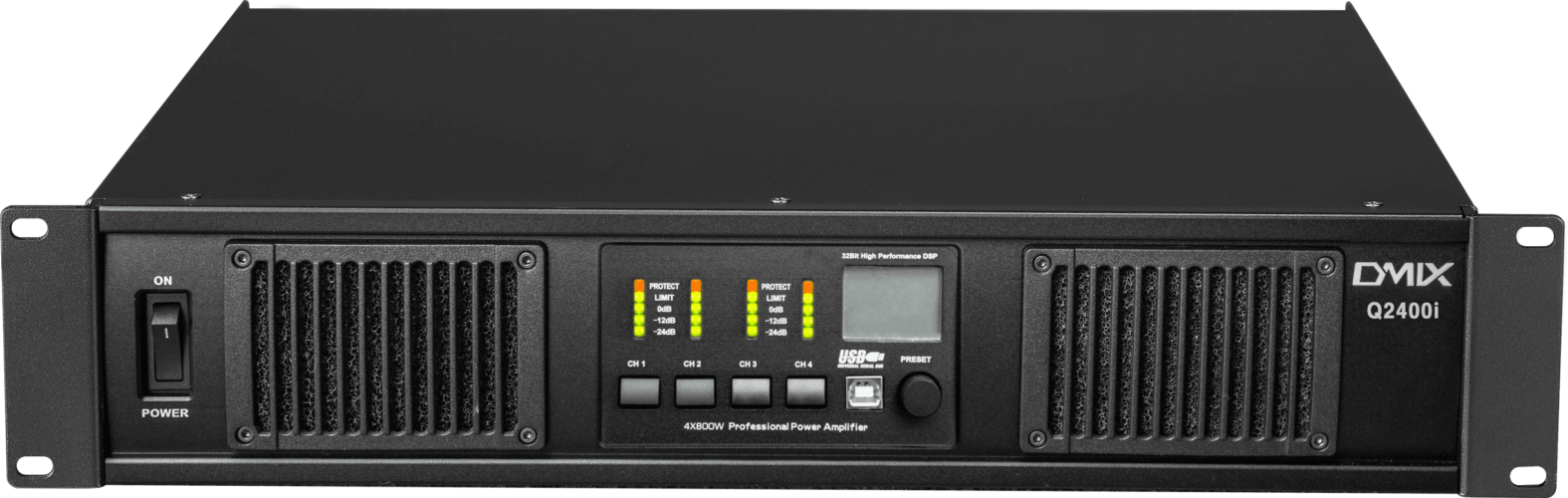

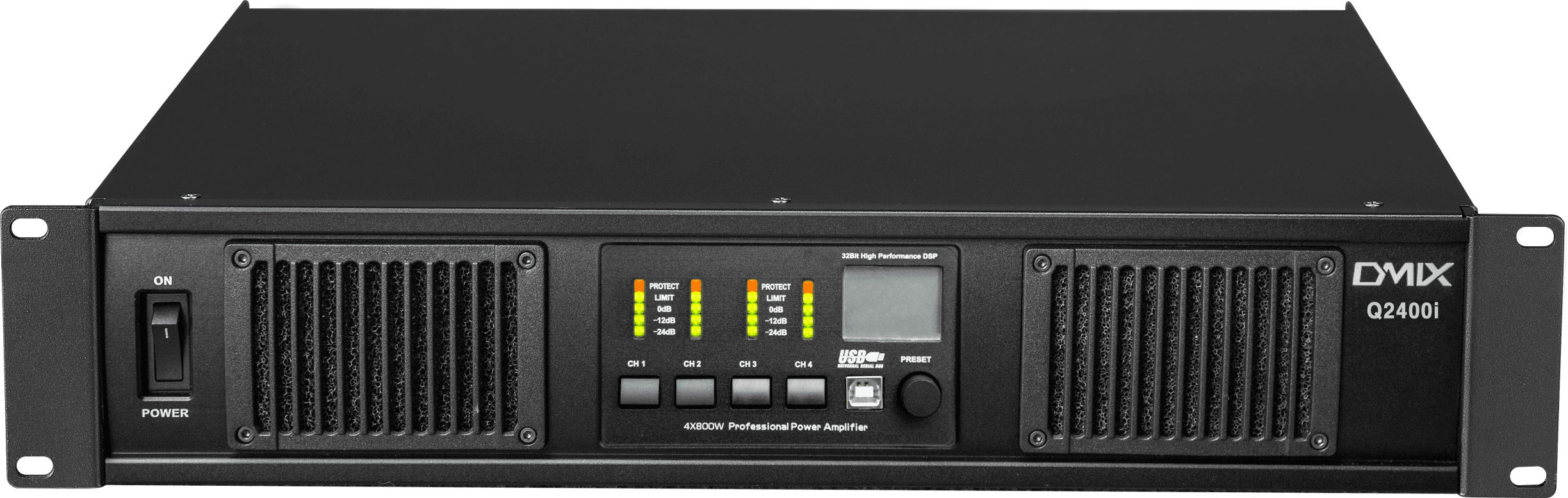

DMIX – Q2400i

Amplifiers

More details

Similar Products

ashly-nXp-8002_600px
  • Ashly Audio

Ashly – nXp8002d

The nXp8002d is a 2 channel multi-mode amplifier capable of driving 2 Ohm loads at full power. The maximum rated output power is 800W per channel at Low Z, 70V, and 100V mode. There is an automatic but defeatable sleep mode consuming <1W, and instant standby mode controlled by contact closure or software. A switch mode power supply auto-detects 120VAC or 240VAC mains, and a Neutrik® powerCON is used for the AC cord. Each channel has selectable output mode of Low Z, 70V, or 100V, an 80Hz high-pass filter, input limiter, and input gain settings of 26dB, 32dB, 38dB, or 1.4V. Each channel has remote DC level control. Input connectors are Neutrik® XLR/TRS combo jack and Euroblock, while output connectors are Neutrik® speakON. The unit has a front panel power switch and level controls that can be disabled. LEDs indicate Protect, Sleep, Disabled, Com, and Bridge mode status, as well as Temperature, Output Current, Output Signal, and Clipping/Mute status per channel. The unit has Ethernet control with a real-time clock for event scheduling. The unit has serial data remote control, aux preamp outputs, preset control, fault condition logic outputs, optional network audio and AES3 digital audio capability. The unit has 32-bit DSP processing at 48kHz or 96kHz sampling rate. DSP functions include swept load impedance, gain, dynamics including autoleveler and ambient noise compensation, equalization including graphic, parametric, feedback suppressor, and FIR filters, a matrix mixer including automixing, crossover, delay, and a signal generator. The amplifier has temperature dependent variable speed forced-air cooling.
    Amplifiers
  • Dante Ch: 16x16
  • 24-bit
See the product
marani-MDA2-2500P
  • Marani

Marani – MDA2-2500P

MDA2-2500P is a highly flexible, powerful and intelligent 2-Channel power amplifier delivering up to a total of 2x2150W @ 4ohms. MDA2-2500P is a highly flexible, powerful and intelligent 2-Channel power amplifier delivering up to a total of 2x2150W @ 4ohms. Designed to meet the most demanding portable and fixed installation sound systems, it provides a full set of value added features such as high output power, efficient cooling system, on board DSP and USB/Ethernet for monitoring and control via PC software. MDA2-2500P includes a highly efficient Switch Mode Power Supply, which provides power to the output stages. The 2 output stages use Class D amplifier module-full bandwidth PWM modulator obtaining ultra low distortion, high efficiency and also equipped with a full set of circuit protections. Furthermore the Clip/Limiter function provides output monitoring to prevent speaker damage with gentle gain reduction at clip threshold, in addition to the efficient heat dissipation system and Over-Heat protection which themselves ensure uncompromised reliability. MDA2-2500P is more than just an amplifier. It is also a capable and sophisticated loudspeaker processor, thanks to its powerful MARANI® DSP running 96 kHz / 24 bit [ 96 bits precision for the internal intermediate processes] and high performance 24bit AD/DA Converters. It offers 2 channels of slope up to 48dB/Oct IIR HP/LP crossover filters, or up to 512 taps FIR filters[FIR coefficients can be imported as .txt/.csv file from external application] , RMS compressor, parametric Eqs , alignment delay and white/pink noise internal generator, everything needed to optimize a loudspeaker system.
    Amplifiers
  • 24-bit
  • 96kHz
See the product
Q20i
  • DMIX

DMIX – Q20i

Advantages:

● High power density and light body weight, not only can meet the needs of large sound amplifying system, but also easy to move and install;

● Powerful DSP function, including routing control, level adjustment, filtering, equalization, voltage limit, delay, inverting, mute, etc.

● Accurate and intuitive status indicator and LCD function display, working status;

● Power amplifier built-in DSP front stage, without external signal front stage, you can match different styles of speakers, easily adjust the required effect, and can be stored in the parameters of multiple speakers, convenient access;

● Environmental monitoring unit can be used to collect voltage, current, temperature and other parameters;

● Accurate and sensitive temperature detection protection, to ensure that the machine during heating work in a safe range.

Technical parameters：

Product Model: Q20i

Product type: Two channel DSP digital power amplifier

8 Ω power: 600W X2

4 Ω power: 1200W X2

Analog maximum input： 22dBu

AES maximum input： 0dBS

Frequency response： 20-20KHz +/- 1dB

THD+N： <0.8%

Damping coefficient： 150

Signal to noise ratio： 100

Working voltage： 100V-240V

    Amplifiers
See the product
