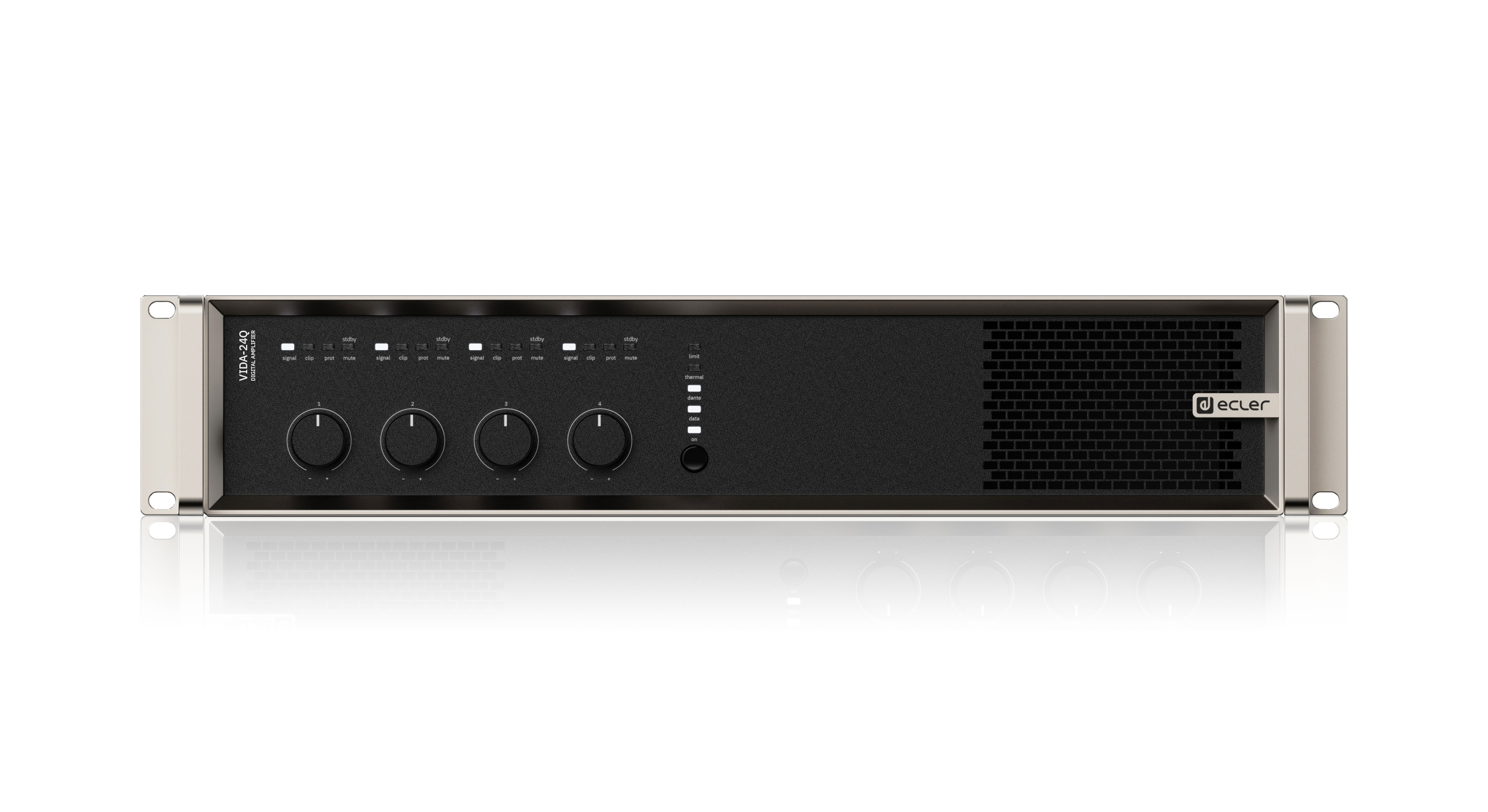

Ecler – VIDA-24Q

VIDA-24Q is a 2400W digital amplifier, with 4 amplified outputs that can be independently configured in high (100/70V) or low (8/4/2ohm) impedance. The VersaPower technology, developed by Ecler, allows an asymmetrical power distribution, and thanks to the Smart VersaPower tool it helps installers by facilitating a smart and fast configuration. In addition, the Class D amplification technology as well as the configurable 4-outputs auto standby and sleep mode functions, both configurable, further improve energy efficiency. This device offers a wide range of possibilities thanks to its 4 analogue and 4 Dante™/AES67 digital inputs, audio player – with microSD slot for local audio files – as well as signal generator, plus 2 auxiliary line outputs and Dante™/AES67 digital outputs.

All these features are managed from its intuitive web application which, among other functionalities, allows signal routing – matrix -, audio signal processing – such as equalisation or limiters -, priority management, GPIO configuration through events, as well as calendar events, playlist management and SD card content, thus facilitating the start-up of the audio-visual installation, its maintenance and customisation. Thanks to the Android/iOS/Web application available to the end user, the audio installation can be managed by them in an easy, intuitive, and customised way.

• Dante Ch: 4x4
• AES67 Enabled
