Product Information

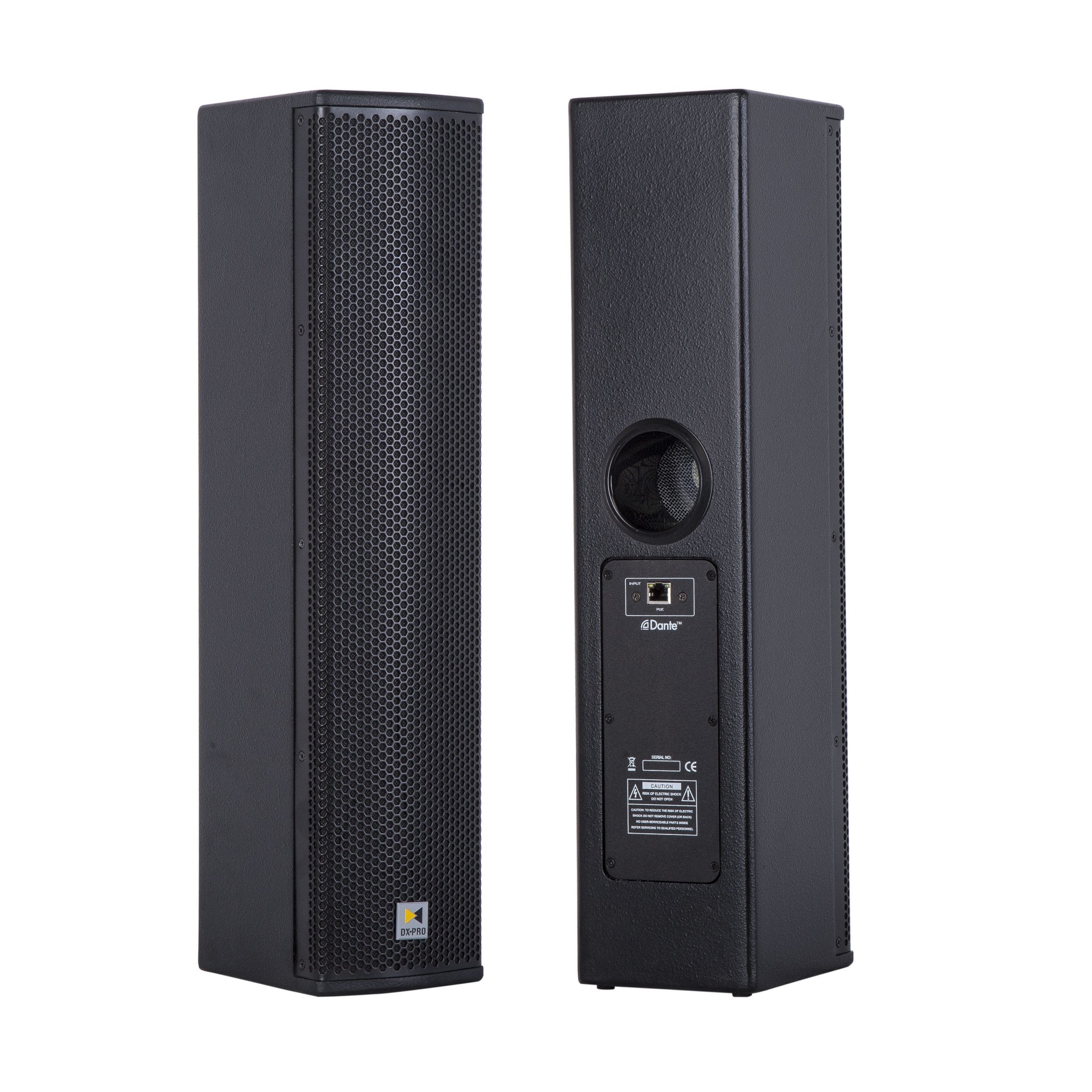

CA-306Dante is a 6×3″ full range column speaker with PoE and Dante connectivity.
Similar Products
- MONISMS
MONISMS – MNS-18011CPS
The MONISMS MNS-18011CPS speaker is specially designed for PA systems based on Dante audio networks. It is a Cylinder Pendant Speaker (whole aluminum) for open architecture ceilings and other locations where a pendant form factor is desired.
The MONISMS MNS-18011CPS speaker is specially designed for PA systems based on Dante audio networks. It is a Cylinder Pendant Speaker (whole aluminum) for open architecture ceilings and other locations where a pendant form factor is desired.
The speaker features a Class-D amplifier, with a maximum digital input signal, the amplifier will provide 30W power.
MONISMS MNS-18011CPS is a Dante™ audio network addressable and self-amplified Cylinder Pendant Speakers system.
- Speakers
- WorxAudio
WorxAudio – TrueLine X3i-P/D
The X3 is a two-way, high efficiency, line array loudspeaker. It is designed as an all-in-one ultra compact high performance system for the reproduction of speech and music program material and includes Dante networking and control.
The X3 is a two-way, high efficiency, line array loudspeaker. It is designed as an all-in-one ultra compact high performance system for the reproduction of speech and music program material. It includes Dante networking and control, providing users with audio networking capability without sacrificing SL Room Control remote control capabilities. Dante’s no-hassle, self-configuring, plug and play networking is a total solution for transporting low latency uncompressed audio over standard IP Ethernet networks with sample accurate synchronization, automatic device and channel discovery, and easy to use signal routing.
The X3 incorporates three medium format 1” exit compression drivers coupled to a stabilized proprietary FlatWave Former that delivers clear but penetrating high frequencies over a predictable and controlled coverage area. The X3 has a Horizontal pattern of 160 degrees and a Vertical of 40 degrees. Six 8” cone transducers coupled to the (A.I.M.) Acoustic Integrating Module minimizes comb filtering throughout the entire operating range. A sturdy multi-ply plywood enclosure, with a multi layered catalyzed Polyurea finish, will withstand the most demanding portable applications. A perforated, powder coated steel grill with a high transmission ratio offers excellent protective properties. The custom designed flyware enables the user to easily array the system to the precise desired coverage area.
- Speakers
- Magnetic
Magnetic – PK-828A+Dante
| Model: | PK-828A+Dante |
| LF Unit: | 8" x2(neodymium) |
| HF Unit: | 1.75"x1(neodymium) |
| Cabinet and paiting: | Birch of plywood and Polyurea |
| Frequency Response: | 55Hz-18KHz(±3dB) |
| Nominal Impedance: | LF 4ohm,HF 8ohm |
| Input Sensitivity: | 108dB (1W/1m) |
| AES Power: | 800W LF,70W HF |
| Peak Power: | 1600W LF,100W HF |
| Max SPL: | 132dB |
| Input Connector: | 1xXLR female+1xXLR male1xVolume,1xpreset,USB,Dante |
| Amplifier @THD1%RMS: | 800Wx800W@4ohm |
| DSP: | 96KHz sample rate,floating point DSPPhase,All past filter,12 EQ,Crossover,Limiter1000ms for each input and outputDriver freeAPP for IOS/Androi(new version) |
| Dante: | Yes |
| WIFI: | Ethernet by TCP/IP |
| Standby and Green energy: | Yes(<0.9W) |
| Working Voltage: | 85-265V,with PFC |
| Dimensions(WxDxH): | 280x335x693mm |
| Weight: | 23kg |
- Speakers
