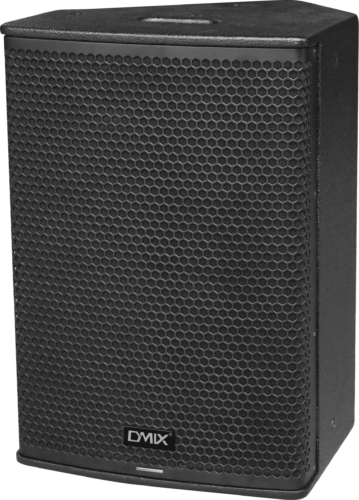

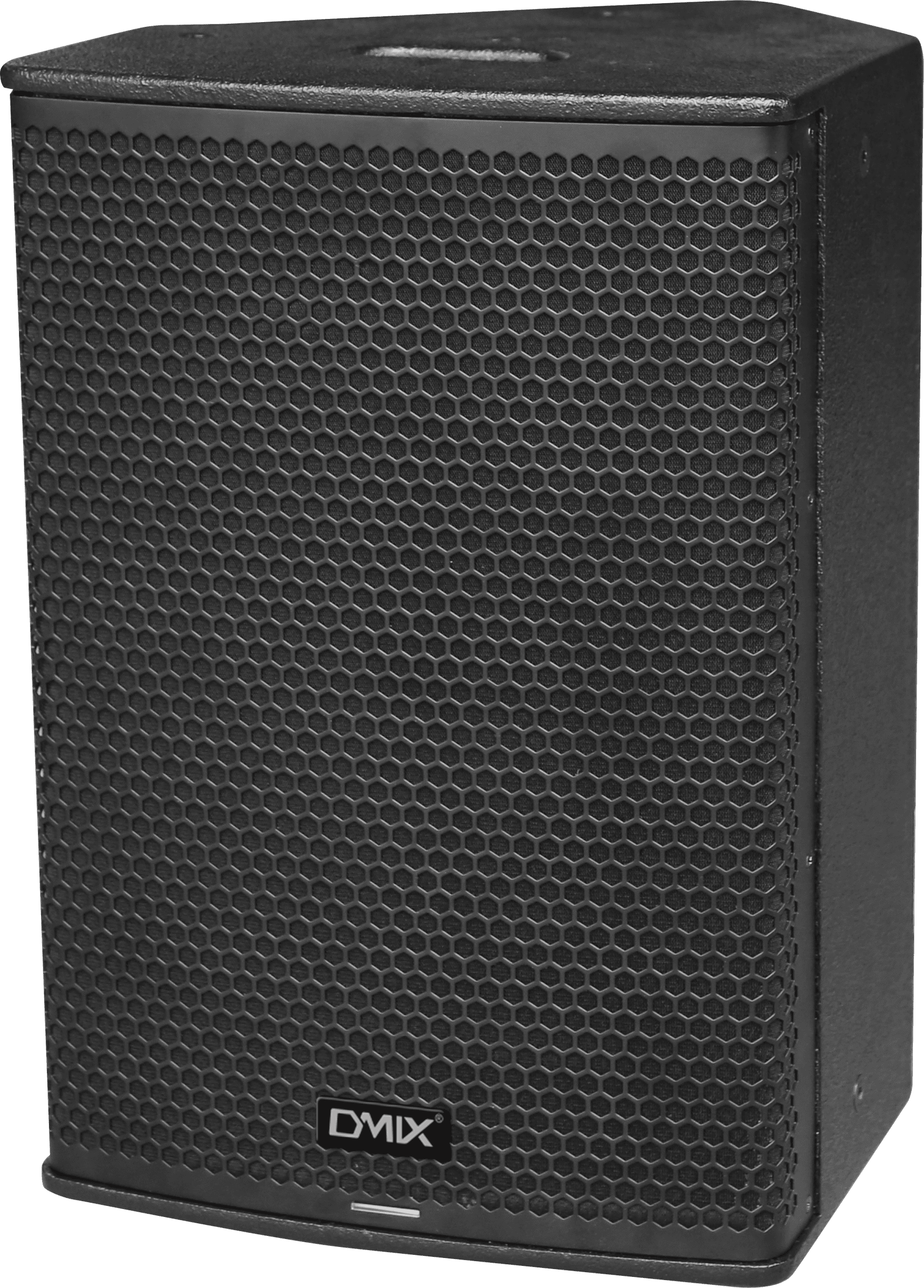

Dmix – CX110P

Speaker model: CX110P

Speaker type: 10”Active coaxial loudspeaker

Unit configuration: LF: 10″ unit 2″(50mm)Voice coil

HF: 1.7″(44mm)Voice coil driver

Frequency response: 75Hz-17kHz(-10dB)

Rated power: LF: 160W, HF: 40W

Sensitivity: LF: 95dB, HF: 105dB

Sound pressure level: 124dB (peak)

Radiation Angle: 90°×90°

Crossover point: DSP control

Size (mm) : 480×332×340 (W×H×D)

Module amplifier power: HF:100W,LF:500W (Class D)

Module input link: 1 balanced XLR input / 1 set of Dante signal input and output / 1 set of LINK output

Module DSP control: RS485、USB 或 Dante
