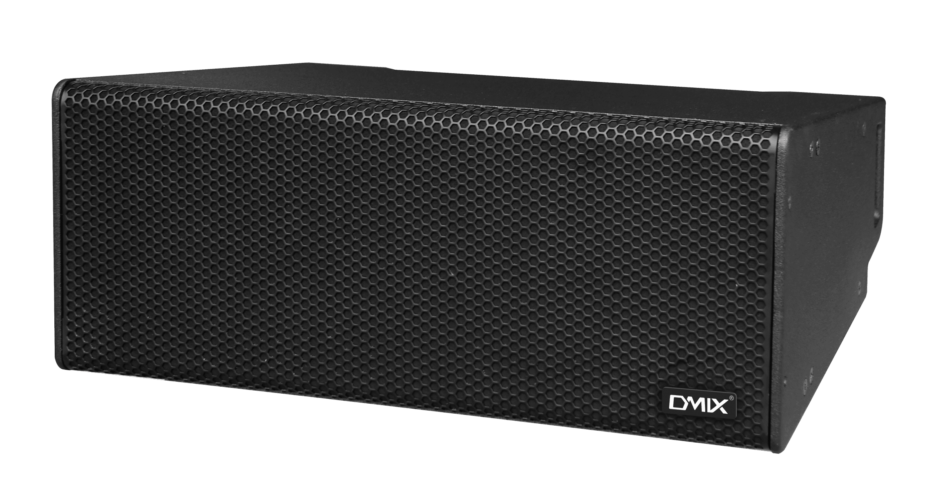

Dmix – MLA 210a

Speaker model: MLA 210a

Speaker type: Dual 10 “two frequency active line array loudspeakers

Unit configuration: LF: 2×10″ woofer 2.5″(65mm)Voice coil

HF: 1×3″(75mm) Voice coil high frequency driver

Frequency response: 55Hz-20kHz (-10dB)

Rated power: LF: 600W , HF: 90W

Sensitivity: LF: 99dB , HF: 110dB

Sound pressure level: 136dB (peak)

Radiation Angle: 100°×10° (adjustable)

Crossover point: DSP control

Size (mm) : 740×294×547 (W×H×D)

Module amplifier power: HF:300W,LF:1000W (Class D)/8Ω

Module input link: 2 balanced XLR inputs or 2 AES inputs or a set of Dante signal inputs and outputs

Module DSP control: RS485、USB or Dante
