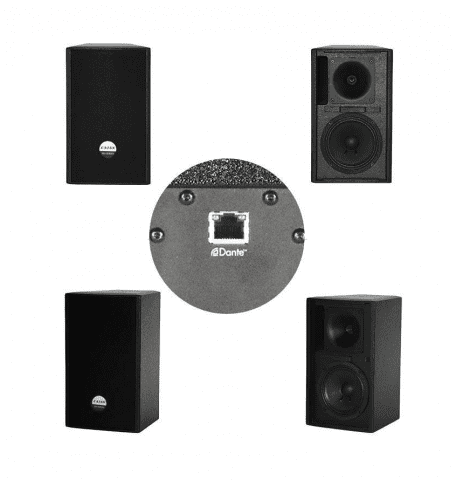

The MA601 is a coaxial full-range speaker with network transmission and a pure digital power amplifier.
The MA601 is a coaxial full-range speaker with network transmission and a pure digital power amplifier.
The speaker uses the Dante digital audio interface and the POE network to power the power amplifier module. Only one network cable is needed to supply the audio signal and power simultaneously.
| Model: | PK-828B+Dante |
| LF Unit: | 8" x2 |
| HF Unit: | 1.4"x1 |
| Cabinet and paiting: | Plywood and water-based |
| Frequency Response: | 55Hz-18KHz(±3dB) |
| Nominal Impedance: | LF 4ohm,HF 8ohm |
| Input Sensitivity: | 106dB (1W/1m) |
| AES Power: | 700W LF,50W HF |
| Peak Power: | 1400W LF,100W HF |
| Max SPL: | 132dB |
| Input Connector: | 1xXLR female+1xXLR male1xVolume,1xpreset,USB,Dante |
| Amplifier @THD1%RMS: | 500Wx100W@4ohm |
| DSP: | 96KHz sample rate,fixed point DSPPhase,All past filter,12 EQ,Crossover,LimiterDriver free |
| Dante: | Yes |
| WIFI: | Ethernet by TCP/IP |
| Standby and Green energy: | Yes(<0.9W) |
| Working Voltage: | 85-265V,with PFC |
| Dimensions(WxDxH): | 280x335x693mm |
| Weight: | 22kg |
Speaker model: CX110P
Speaker type: 10”Active coaxial loudspeaker
Unit configuration: LF: 10" unit 2"(50mm）Voice coil
HF: 1.7"（44mm）Voice coil driver
Frequency response: 75Hz-17kHz(-10dB)
Rated power: LF: 160W， HF: 40W
Sensitivity: LF: 95dB， HF: 105dB
Sound pressure level： 124dB (peak)
Radiation Angle: 90°×90°
Crossover point: DSP control
Size (mm) : 480×332×340 (W×H×D)
Module amplifier power: HF：100W，LF：500W (Class D)
Module input link: 1 balanced XLR input / 1 set of Dante signal input and output / 1 set of LINK output
Module DSP control: RS485、USB 或 Dante
Genelec's 4430A offers power, audio and loudspeaker management via a single standard CAT cable, delivering unrivalled flexibility, cost-effectiveness and simplicity of installation.
