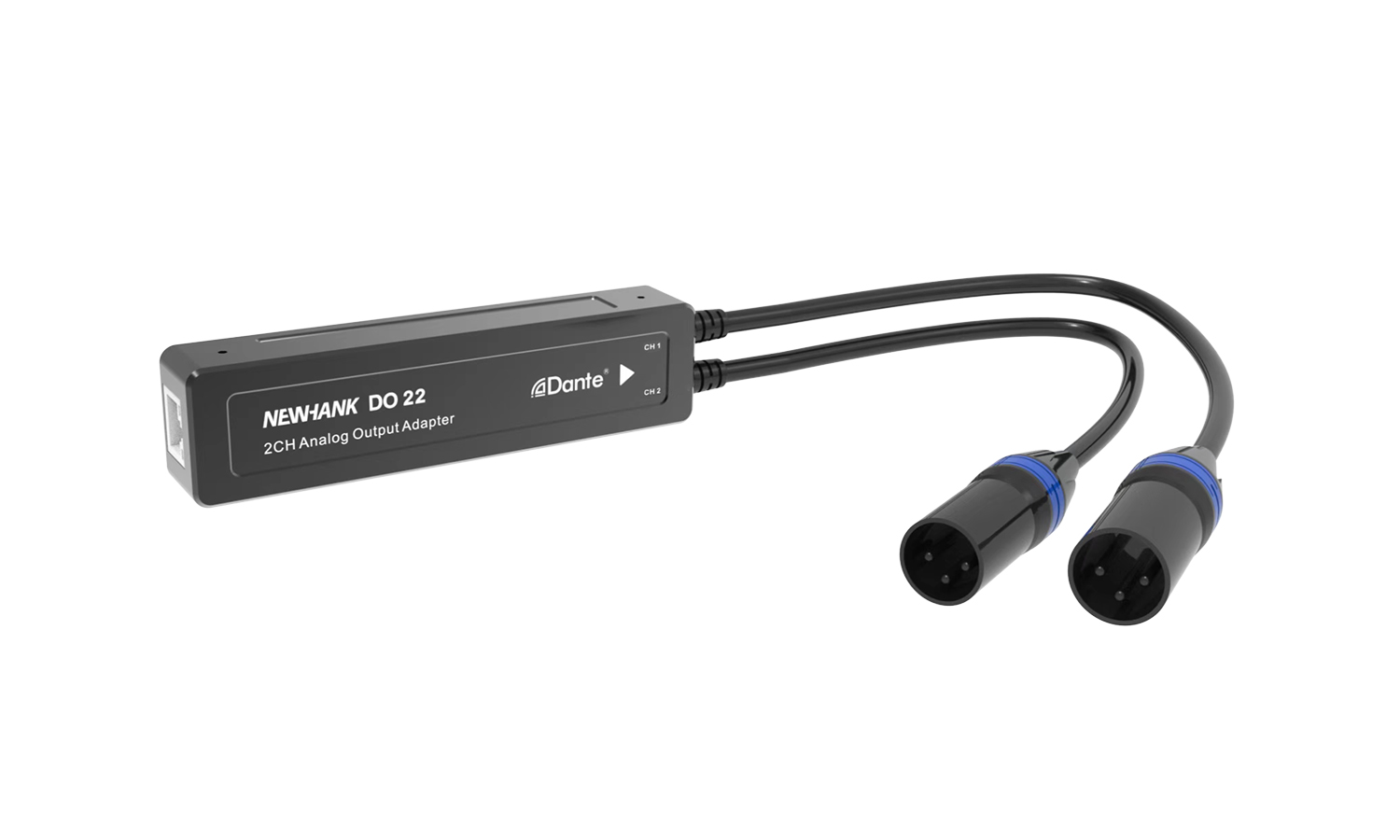

DO 22

I/O Interfaces

Learn more

Similar Products

rdl-ddb-bn22_1200px
  • RDL

RDL – DDB-BN22

The DD-BN22 is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs and two XLR mic or line outputs on the front panels. The DD-BN22 is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs and two XLR mic or line outputs on the front panels. Special software is not required to configure the DD-BN22. Each XLR input provides three switches that may be set from the front of the unit when the cover plate is not installed. One switch enables or disables P48 phantom; the second switch selects the mic or line gain range; the third switch sets the gain. Each XLR output provides a switch to set the output to balanced professional line level or mic level. The DD-BN22 fits a standard US dual-gang electrical box or an RDL WB-2 back box for installations in thinner European or equivalent walls. The DD-BN22 is PoE powered, and is available in multiple finishes with optional customized graphics. The two XLR inputs are each converted to a separate Dante network transmit channel. Three gain settings are switch-selectable for both the mic and line input ranges to match condenser or dynamic mic levels and standard line levels. Two Dante audio channels are converted to balanced line level on front-panel XLR jacks. Each output provides +4 dBu balanced for a network digital audio level of -18 dBFS. Each output is equipped with a selector to set the output to line level or attenuate the output by 50 dB to mic level. These switches are located on the top of the chassis and are set by the installer prior to mounting the unit. Valid PoE power and synchronization to the Dante network are indicated by green LEDs visible from the front of the unit. The DD-BN22 is a professional grade product with discrete mic preamplifiers for studio quality fidelity and low noise performance, coupled through metal XLR jacks housed in a stainless steel chassis with dual powder-coated or stainless steel Decora front plates. The DD-BN22’s superior performance specifications make it ideally suited to the most demanding installations, and an exceptional value in commercial networked audio systems. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. Designed to outperform. Built to last.
    I/O Interfaces
See the product
fp-nml2v_400px|fp-nml2v_400px
  • RDL

RDL – FP-NML2V

The FP-NML2V is a high quality Dante network to mic/line interface that converts two Dante channels to two balanced outputs. Each output provides a mic/line switch and VCA for remote level control. The FP-NML2 is ideal for adapting standard audio amplifiers to a Dante network. Model FP-NML2VP operates from PoE. The FP-NML2V is a high quality Dante network to mic/line interface that converts two Dante channels to two balanced outputs. Each output provides a mic/line switch and VCA for remote level control. Separate remote controls may be used for each output, or a single remote control may be connected to adjust both outputs simultaneously. VCA control uses industry standard 0 to 10 Volts compatible with a range of RDL passive and multi-point rotary-encoder remote controls. The FP-NML2V is ideal for adapting standard audio amplifiers to a Dante network. Each line output provides +4 dBu balanced for a network digital audio level of -18 dBFS with crosstalk below the noise floor. The FP-NML2V operates from 24 Vdc and is available in a PoE version: FP-NML2VP. If powered by 24 Vdc and PoE, the FP-NML2VP seamlessly switches over to PoE power upon loss of the external 24 V supply.
    I/O Interfaces
See the product
Core256-Front_150dpi
  • DAD

DAD – Core 256

Core 256 is a digital router and monitoring interface with 256 ch. Thunderbolt 3 I/O, 256 ch. Dante AoIP I/O, MADI 64 ch. BNC I/O, 128 ch. 128 ch. MADI SFP I/O module option and 16 ch. ADAT dual TosLink I/O with 256x64 ch. Pro|Mon summing and speaker eq processing.

The Thunder|Core-driven Core 256 does not take up much space, but the power you can squeeze out of this little box is might make your jaw drop to the floor. With tons of channels, a wide palette of digital connectivity, built-in SPQ processing, Eucon control compatibility, internal summing engine and drivers for macOS and Windows 10, it is a pristine digital audio interface by any measure and for just about any application.

    I/O Interfaces
  • Dante Ch: 256x256
  • 24-bit
See the product
