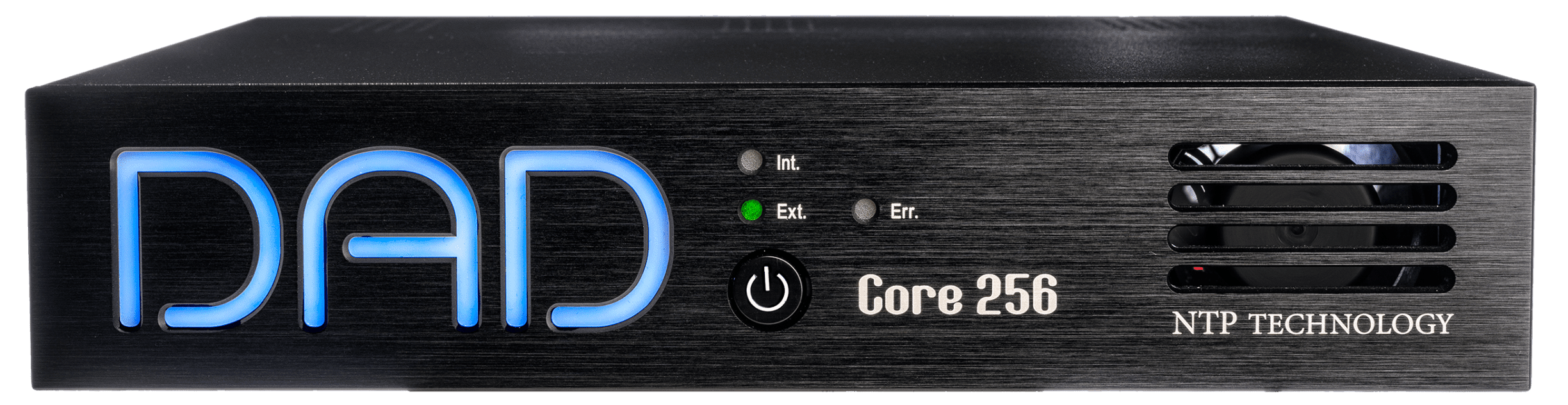

DAD – Core 256

I/O Interfaces

More details

Similar Products

ru-fnp_400px
  • RDL

RDL – RU-FNP

The RU-FN is a high quality Format-A to Dante network interface compatible with RDL Format-A twisted pair audio products. The RU-FN converts three Format-A audio pairs to Dante networked digital audio channels. The unit also converts a balanced or unbalanced line-level AUX input to Dante. Model RU-FNP operates from PoE. The RU-FN is a high quality Format-A to Dante network interface compatible with RDL Format-A twisted pair audio products. The RU-FN converts three Format-A audio pairs to Dante networked digital audio channels. The unit also converts a fourth input, balanced or unbalanced line-level AUX, to Dante. RDL’s Format-A system utilizes the 4 pairs of a standard CATx cable; 3 pairs (pairs A, B and C) are designated for sending and receiving audio and the fourth pair is used to distribute 24 Vdc to connected Format-A products.  The RU-FN provides signal presence metering and is equipped to power connected Format-A endpoints. The RU-FN is also available in a PoE version (RU-FNP). If PoE power and an external 24 Vdc supply are both feeding an RU-FNP, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external supply.
    I/O Interfaces
See the product
junger-option-board-aoip-dante_1200px|junger-option-board-aoip-dante_1200px
  • Jünger

Jünger – Option Board Dante I/O

With up to 16 channels, the Dante™ I/O option board is meant to extend the interface capabilities of any Jünger Audio D*AP device. The modular approach of these devices allows combining different interface standards. Note: This product is not sold separately. It is an option card for Dante compatibility with Junger's product suite. With up to 16 channels, the Dante™ I/O option board is meant to extend the interface capabilities of any Jünger Audio D*AP device. The modular approach of these devices allows combining different interface standards. Thus, it is possible to add advanced audio processing to your Dante™ network and bridge to other interface standards like AES/EBU, 3G SDI, MADI and analog. The Dante™ option board user interface is capable of displaying all signal names and labels within the D*AP device to make the routing as easy as possible. Further, the network configuration can easily be set up. D*AP devices equipped with this option board may work as sync slaves or can operate as a clock master (preferred master) for a Dante™ network. When configured as a sync master, it is possible to sync a Dante™ network to a SDI video signal.
    I/O Interfaces
  • Dante Ch: 64x64
  • 24-bit
See the product
pinanson-dante-box|pinanson-dante-box
  • PINANSON

PINANSON – Dante Box

Dante network digital audio adapters for the conversion of 2 Dante signal into 2 analogue line level signals and vice versa.

Pinanson offers two models:

  1. Dante box D-A: for the conversion from 2 channel Dante signal (1 RJ-45 connector) into 2 channel analogue line level signal (2 XLR-3-M connectors).
  2. Dante box A-D: for the conversion from 2 channel analogue line level signal (2 XLR-3-F connectors) into 2 channel Dante signal (1 RJ-45 connector).

Characteristics:

  • The adapter is available in a MF box Pinanson format that is a mobile aluminium box format.
  • Dante signal: for 44.1/48/96 KHz. 24 bits and 100 Mbps.
  • Analogue signals: +4 dBu line level. Balanced signals.
  • Power: PoE Class 1 802.3 af POE PD
    I/O Interfaces
See the product
