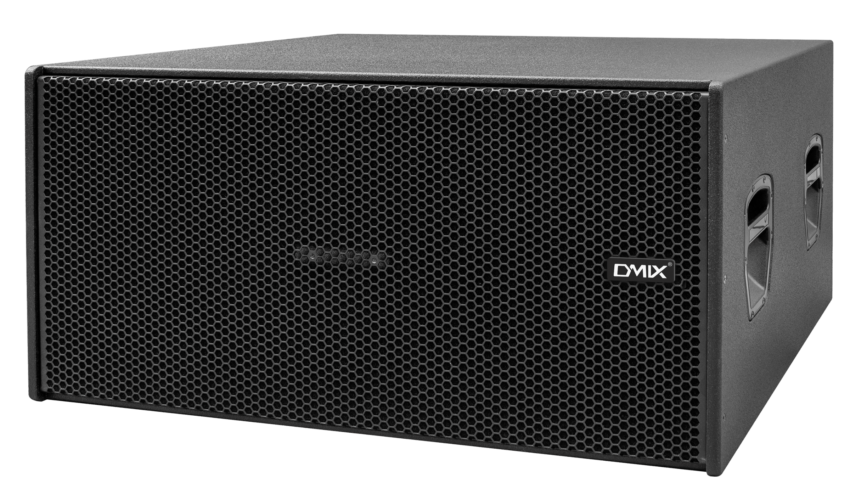

DMIX – GLB218a

Speakers

More details

Similar Products

MLA210a
  • DMIX

DMIX – MLA 210a

Speaker model: MLA 210a

Speaker type: Dual 10 "two frequency active line array loudspeakers

Unit configuration: LF: 2×10" woofer 2.5"(65mm）Voice coil

HF: 1×3"(75mm) Voice coil high frequency driver

Frequency response: 55Hz-20kHz (-10dB)

Rated power: LF: 600W , HF: 90W

Sensitivity: LF: 99dB , HF: 110dB

Sound pressure level： 136dB (peak)

Radiation Angle: 100°×10° (adjustable)

Crossover point: DSP control

Size (mm) : 740×294×547 (W×H×D)

Module amplifier power: HF：300W，LF：1000W (Class D)/8Ω

Module input link: 2 balanced XLR inputs or 2 AES inputs or a set of Dante signal inputs and outputs

Module DSP control: RS485、USB or Dante

    Speakers
See the product
vue-audiotechnik-es-269
  • VUE Audiotechnik

VUE Audiotechnik – es-269

The es-269 compact ACM subwoofer system redefines small subwoofer capabilities by producing high output exceptionally high-quality sound from a very compact dual driver system.  The es-269 compact ACM subwoofer system redefines small subwoofer capabilities by producing high output exceptionally high-quality sound from a very compact dual driver system. With reference quality flat low-end response from 200 to 45 Hz, the es-269 is capable of output levels of systems typically twice the size. The es-269 apples VUE’s patent-pending ACM -Active Compliance Management- technology from the hm-class subwoofers, to a new compact even “mini” subwoofer breaking the normal size ratio to SPL output standards. ACM technology combines both band-pass and vented alignments into a single enclosure. The s-269 places two high performance, 6×9-inch transducers into this configuration, with both woofers sharing a common vented chamber. One woofer’s frontal radiation is direct, while the second woofer’s frontal radiation drives the band-pass chamber. Using sophisticated DSP the two ACM subsections combine acoustically precisely aligning the phase arrivals of the front facing woofer, the common chamber vent, and output of the bandpass chamber vent. The powerful amplifier sends 200W of pure sine wave power (350W “burst”) with a unique optimized signal to each woofer. The combination of 700 watts of burst power produces over 124 dB peak output in a half space environment (ground stacked). The combination of ACM, precision-engineered transducers, and sophisticated electronics allows the s-269 to deliver much higher output throughout its operating bandwidth from a remarkably small enclosure. Features
  • Exceptionally low front profile: Architect-pleasing design with esoteric audiophile quality and professional audio output down to 40 Hz
  • ACM (Active Compliance Management): Patent-pending hybrid design combines both band-pass and vented alignments into a single, compact footprint for more output and definition.
  • Very low distortion with professional sound pressure output
  • Innovative Purpose-designed dual 6×9-inch high output cone transducers
  • Premium birch plywood enclosure with extensive internal bracing and a highly-durable Dura Coat finish.
  • Specially designed for use with the VUEDrive V242 Systems  Engine to provide a new level of sonic accuracy and output
  • Flexible mounting bracket allows fixed installation on the wall or to the ceiling
    Speakers
See the product
x606
  • Cadac

Cadac – X606

The X606 beam forming array module combines a comprehensive package in all relevant disciplines without compromise. With the X606, even at most demanding and complex sound installations can be realized. The combination of mapping optimization and direct array definition is the most comprehensive and powerful loudspeaker management system on the market. The X606 is a self-powered 3-
way high-end beam forming array loudspeaker, which features 6 x 6.5" ported woofers for LF, 12 x 3.5" woofers for the MF and 24 x 1" dome tweeters for the HF. The X606 can be used as single cabinet with programmable vertical dispersion (point source functionality) and as beamforming array for fixed installation as well as for mobile applications. If one X606 is combined with one X606-CARDIOD cabinet, the system will have cardioid dispersion for the LF range. The array is used as straight line in most applications as the coverage on listener areas is adjusted by beamforming. Due to the fully integrated connection hardware, the column can be stacked to realize larger systems with up to 10 meters of acoustic length. With the small source distances, the beamforming capabilities of the column are excellent even at very high frequencies. Internally, one X606 has 42 amplifier and 42 DSP channels. The CADAC DSP-core module platform is integrated with the amplifier section into the loudspeaker. Cabinets are electrically connected by the CADAC C-Link audio and command interface. The CCP control and prediction software can connect to the array via LAN for command and control, Auto-EQ and to calculate sound prediction on listener areas. With the CMAP (mapping optimization mode), the vertical dispersion can be adjusted and optimized according to the listener area.

    Speakers
See the product
