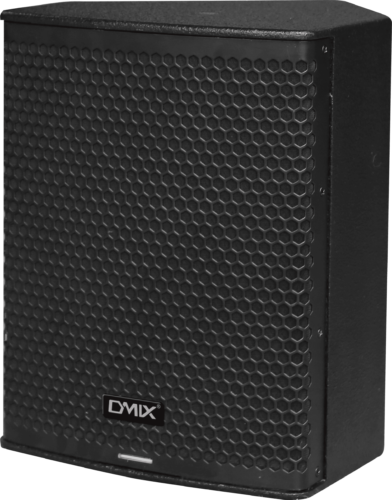

Dmix - CX108P

Speaker model: CX108P

Speaker type: 8”Active coaxial loudspeaker

Unit configuration: LF: 8″ unit 2″(50mm）Voice coil

HF: 1.7″（44mm）Voice coil driver

Frequency response: 80Hz-20kHz(-10dB)

Rated power: LF: 140W， HF: 40W

Sensitivity: LF: 95dB， HF: 105dB

Sound pressure level： 121dB (peak)

Radiation Angle: 90°×90°

Crossover point: DSP control

Size (mm) : 344×270×256 (W×H×D)

Module amplifier power: HF：100W，LF：200W (Class D)

Module input link: 1 balanced XLR input / 1 set of Dante signal input and output / 1 set of LINK output

Module DSP control: RS485、USB or Dante
