Product Information
Dante Network Transmission
Dante is used for audio transmission to achieve digital and network transmission management. Dante is based on layer 3 IP network technology and adopts Zeroconf protocol to simplify the network operation mode. It can realize long-distance transmission of two-way high-quality big data and perfect synchronous playback with low delay. The device is plug and play, system construction has no topology limitation, installation and configuration is convenient, and wiring is simple and easy.
PoE power supply
Ethernet power supply and audio and data transmission are integrated, simplifying cable layout and meeting Ethernet engineering specifications. PoE network cabling uses 50V dc power supply for bearing Ethernet cables, without restrictions on high-voltage ac cabling, and better meets site safety and fire prevention specifications.
Technical parameters：

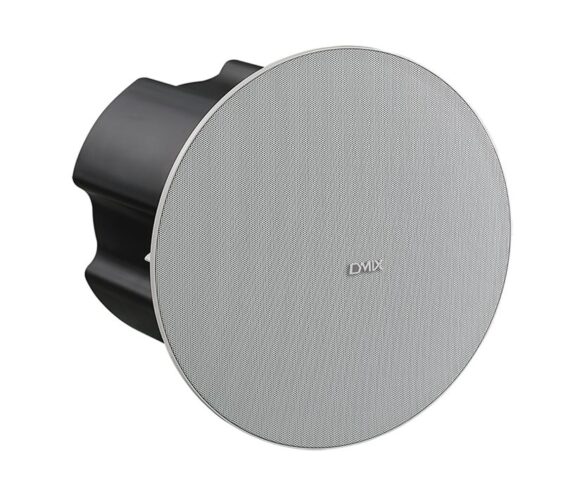

Speaker model: CS-6D
Unit configuration: 6.5″(165mm) Speaker unit，1″ Tweeter
Frequency range: 95Hz-20kHz
Rated power: 50W
Sound pressure level: 112dB
Sensitivity: 93dB
Coverage Angle: 100°×100°
DSP processing: 1 DSP, with gain, equalization, voltage limit, noise gate, mute control adjustment
Connection mode: RJ45 interface
Product size (mm) : 264×210 (Ф×H)
Opening size (mm) : Ф221
