Technical parameters：

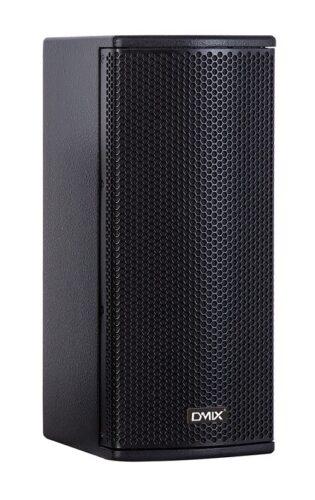

Speaker model: CA-402D
Unit configuration: 2×4″(100mm) Full frequency unit
Frequency range: 110Hz-20kHz
Rated power: 60W
Sound pressure level: 113dB
Sensitivity: 93dB
Coverage Angle: 100°×60°
DSP processing: 1 DSP, with gain, equalization, voltage limit, noise gate, mute control adjustment
Connection mode: RJ45 interface
Size (mm) : 145×344×180 (W×H×D)
The AMK DS84-C-X loudspeaker assembly is powered by a POE+ network amplifier with Dante™ input. No external power supply is required. The speaker includes a Class D amplifier which provides efficient use of power.
The assembly comes with AMK's CX 802, highly efficient coaxial loudspeaker. This system will solve the issue of having to provide a separate amplifier or I/O interface for speaker installations.
One PoE amplified speaker can power a total of (4) speakers, including (3) additional passive speakers, with one speaker per audio zone. The CX802 loudspeaker driver has excellent dispersion, wide bandwidth and a smooth frequency response which makes this the top choice for today’s overhead commercial applications.
The audio network system is also compatible with AES67 and it is Dante Domain Manager Ready. Which makes this speaker system to be flexible with other audio network systems as well.
This assembly can be used in wide range of projects for paging and background music applications. The DS84-C-X is ideal for hotels, education, hospitals, retail stores, performing art centers, restaurants, airports, houses of worship, and board rooms.
Technical parameters：
Speaker model: CA-412DA
Speaker type: Active Speaker
Unit composition: 12×4" Full frequency unit
Frequency response: 90Hz-17kHz （-10dB）
Sensitivity: 98dB
Rated impedance: 6Ω
Sound pressure level: 130dB（peak）
Rated power: 360W
Horizontal coverage Angle: 100°x30°-40°，Electronic control
The speaker uses a patented design of a 4-inch bass + 3 0.5-inch tweeter coaxial unit. In terms of sound quality, it not only has the characteristics of high phase fidelity of the full-range speaker, but also realizes the output of a more natural sound in the form of a standard point source. At the same time, it also has the powerful expressive power of the crossover speakers in the high and low frequencies, making its sound level more distinct and the sense of detail more prominent. Three tweeters are arranged in a vertical line to form a linear array pattern, which makes the high-frequency horizontal pointing wider and can take care of more areas. The coaxial unit design can reduce the volume of the speaker as much as possible, and the appearance is more compact and elegant.
The speakers use Dante digital audio interface and POE network power supply to drive the power amplifier module. Only one network cable is needed to supply audio signals and power at the same time. In a digital audio system, our product is a terminal node that provides the terminal playback function of a digital audio system.
