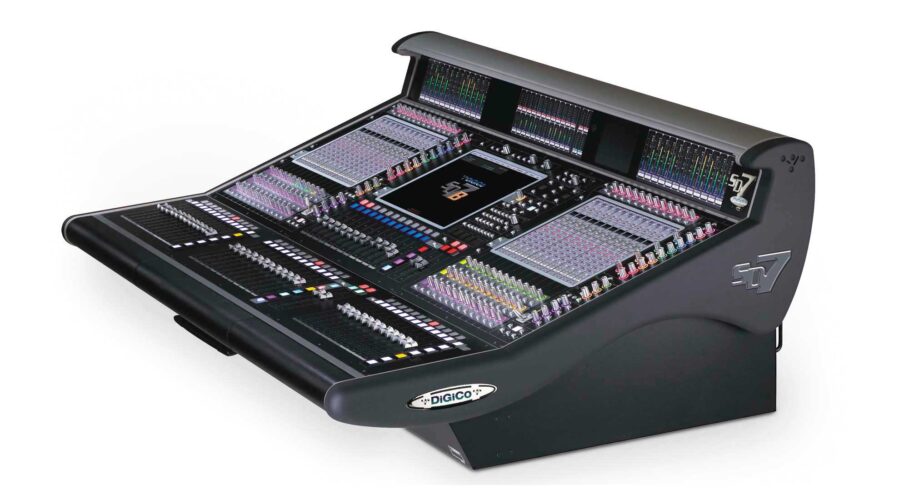

Though identical in appearance to the SD7, the SD7B goes a stage further as it has been developed for broadcast applications.
Though identical in appearance to the SD7, the SD7B goes a stage further as it has been developed for broadcast applications. As well as full Flexi channel capability, routing flexibility has been vastly increased to allow for LCRS and 5.1 mixes as well as stereo and LCR.
In addition, broadcast-specific features include a complete 5.1 monitor matrix with 48 x 6 source to speaker selection; mutli channel folding; user defined stem order selection; Mix Minus busses (one per mono channel); backstop PFL (over press) and Auto PFL; and Audio Follow Video implementation.
Scratching the surface
A combination of technologies have been seamlessly integrated into the SD7B’s worksurface to meet the everyday needs of any engineer. We’ve managed to pack them into three user-friendly interactive 15-inch high-resolution touch screens, each of which accommodates a bank of 12 faders, to provide the user with the perfect platform – everything is just ‘where it should be’.
To make navigation even easier, we’ve added high-definition interactive meter bridges and multicoloured knobs and switches; and for further functionality and flexibility, 16 assignable faders (one bank of 12, one bank of four) sit neatly below the master screen in the centre of the console, taking the SD7B’s fader tally to a sizeable 52.
To increase the fader count further for multi-engineer applications and shows, an EX-007 Fader Expansion unit is available. Two EX-007s can be connected via a simple Cat5e connector for remote control or simply to increase your fader count to 100.
Specifications
- Dante Ch: 64x64
- Bit Depth: 24-bit
- Sample Rate: 48kHz, 96kHz
- AES67 Enabled
