DiGiCo - DMI-DANTE64@96

DiGiCo – DMI-DANTE64@96

Product Information

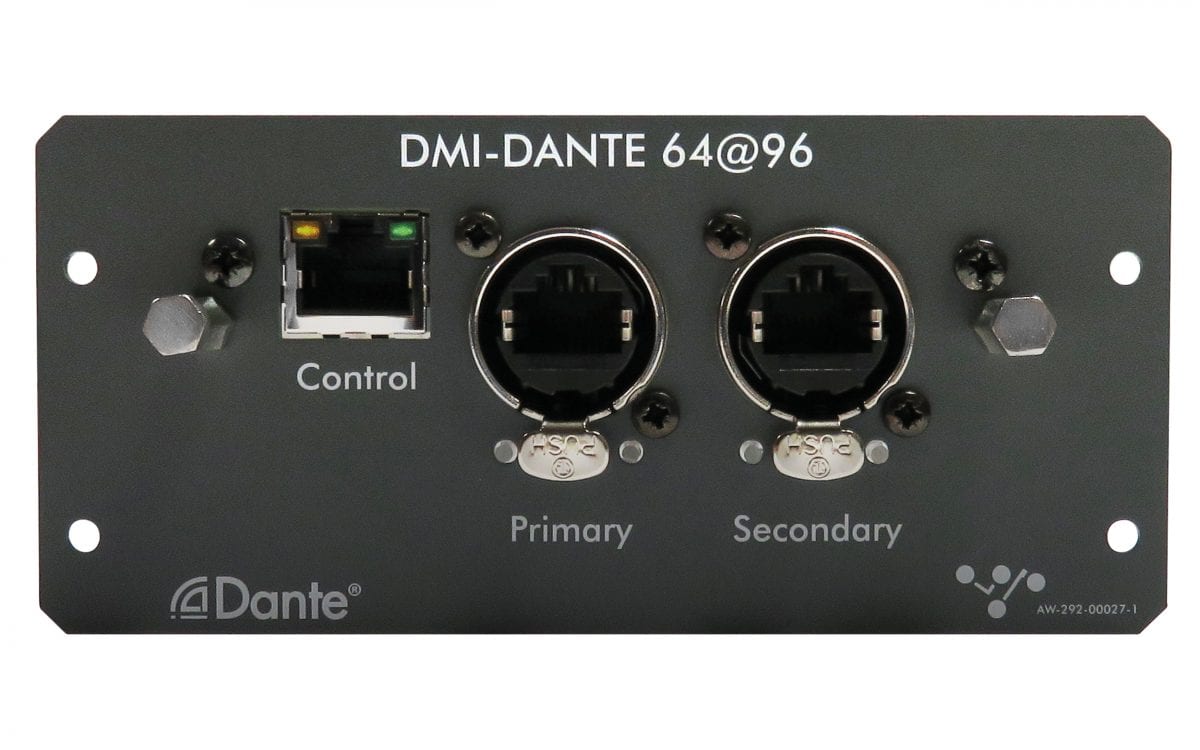

The DiGiCo DMI-DANTE64@96 allows 64 channels in and 64 channels out at both 48kHz and 96kHz. It has a Primary and a Secondary port, both of which are Ethercon ports, and an RJ45 Control port. The card has two modes that can be changed in Dante Controller. In Switched Mode, the three ports are switched together. In redundant mode, the Control and Primary ports shall be switched together and work as a redundant pair with the Secondary port, each having separate IP addresses so that if the primary connection fails, the secondary connection will take over.

Specifications

Dante Ch: 64x64
Bit Depth: 16-bit, 24-bit, 32-bit
Sample Rate: 44.1kHz, 48kHz, 88.2kHz, 96kHz
AES67 Enabled

Klark Teknik – NM-DANTE32

Audinate dante legacy module with up to 32 bidirectional channels. Primary and secondary Ethernet interfaces for dual-redundant Dante networking. Optional Dante Controller software for remote configuration (PC or Mac computer).

Audinate Dante Legacy Module in Cirrus Logic CobraNet CM-1 format
Up to 32 bidirectional channels at 48 kHz and 16 bidirectional channels at 96 kHz
Enables multichannel recording and playback through Dante Virtual Soundcard (PC or Mac computer)
Primary and secondary Ethernet interfaces for dual-redundant Dante networking
Operates from internal Dante network Precision Time Protocol (PTP) clock
Optional Dante Controller software for remote configuration (PC or Mac computer)
LED indicators monitor network activity and speed
3-Year Warranty Program
Designed and engineered in England

Dante Interface Cards

Dante Ch: 32x32
24-bit

See the product

Apogee

Apogee – Symphony I/O MK II Dante Option Card

With the Symphony I/O Mk II Dante option card and a simple ethernet cable, Symphony I/O Mk II can be easily connected and shared across post production, broadcast, live sound or recording studio networks, unleashing legendary sound quality on the world’s most popular audio-over-IP solution. With the Symphony I/O Mk II Dante option card and a simple ethernet cable, Symphony I/O Mk II can be easily connected and shared across post production, broadcast, live sound or recording studio networks, unleashing legendary sound quality on the world’s most popular audio-over-IP solution. The Symphony I/O Mk II Dante option card also includes Pro Tools connectivity for integration of Pro Tools | HD systems into a Dante network environment. No other Dante-enabled audio interface offers this level of quality, flexibility and modularity.

Dante Interface Cards

Dante Ch: 64x64
24-bit

See the product

Focusrite

Focusrite – RedNet PCIe Soundcard

[Discontinued] For situations in which low-latency performance is critical, such as tracking, the RedNet PCIe card provides the best possible performance for your system. This dedicated card fits into a Windows or Mac computer standard PCIe card slot or with a laptop using a Thunderbolt PCIe Chassis. It delivers up to 128 channels I/O with under 3ms latency dependending on ASIO/Core Audio buffer size. A standard RJ45 Gigabit Ethernet connector links your audio computer to the rest of the network via a GigE switch.

Dante Interface Cards

See the product

DiGiCo – DMI-DANTE64@96

Product Information

Specifications

Similar Products

Klark Teknik – NM-DANTE32

Apogee – Symphony I/O MK II Dante Option Card

Focusrite – RedNet PCIe Soundcard
