Product Information

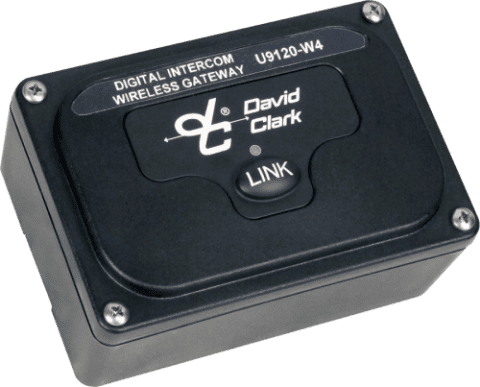

The U9120-W4 Wireless Gateway is a relay for all audio interface between Wireless Belt Station users and the U9100 Master Station and connected ancillaries (two-way radio, IP networks, etc.)
The U9120-W4 Wireless Gateway is a relay for all audio interface between Wireless Belt Station users and the U9100 Master Station and connected ancillaries (two-way radio, IP networks, etc.)
Features
- Wireless DECT protocol interface provides wireless connectivity for up to four (4) users with full system functionality and wireless mobility and a reliable range of up to 400 feet
- IP-68 sealed Ethernet jack provides out-of-the-box connectivity to the U9100 Master Station,offering superior dust and water ingress when mated for worry-free installations in demanding environments
- Offers superior dust and water ingress when mated for worry-free, reliable installations in demanding environments
- Rugged, marine-grade design provides salt-fog/corrosion resistance, wide ranging temperature tolerance and superior shock/vibration absorption to ensure optimal, mission-ready performance
- Features a built-in, internal antenna and reverse-polarity external SMA connector provides connection to either a whip antennae (included) or a remote antenna kit, further ensuring proper RF signal propagation
- Flexible installation with surface or flush mount options – while maintaining watertight integrity – provides numerous install location alternatives for facility or mobile platforms
- EU version available (Model U9120-W4-EU)
The Model 391 Dante Alerting Unit builds on the limited capabilities of the "beacon" or a "strobe" devices that are ubiquitous with analog party-line (PL) intercom systems and adds a broad range of new and enhanced features. The Model 391 will respond to 20 kHz tone "call" signals that are commonly utilized in both legacy analog and modern digital party-line intercom circuits. Upon detecting a call signal the Model 391 can provide a visual indicator, enable an audible "buzzer" output, and even activate an analog line output. Each of the Model 391's alerting resources can be individually optimized to meet the unique requirements of many applications. The STcontroller personal computer application is used to select from a wide range of operating choices. The compact, portable unit is compatible with Dante audio-over-Ethernet installations and requires only an Ethernet connection with Power-over-Ethernet (PoE) capabilities for operation. Typical Model 391 applications will include use in theaters, sports facilities, corporate events, and broadcast studios.
Key Features
