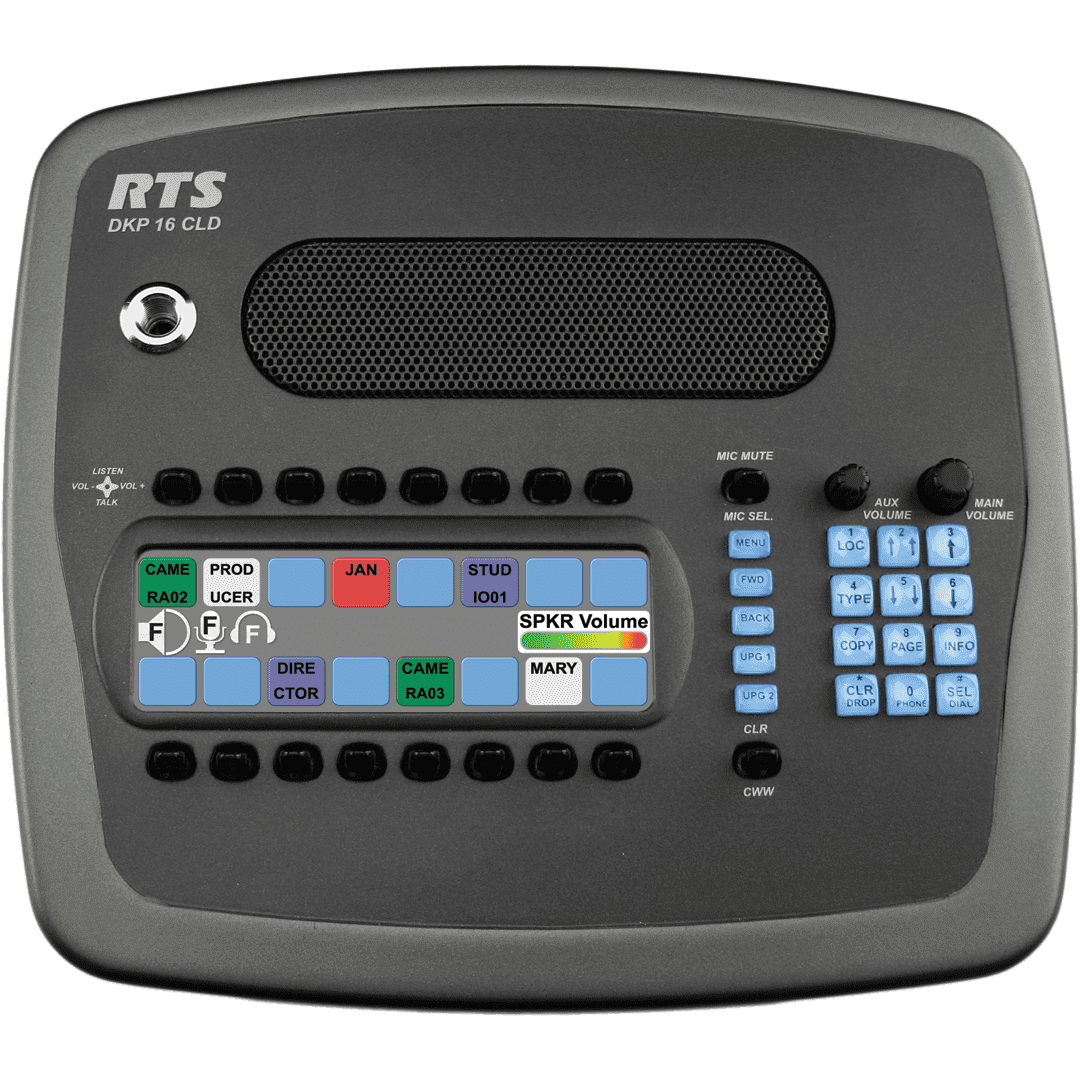

RTS – DKP 16 CLD

Intercoms

More details

Similar Products

RTS_DBP_Hero_TopDownLeft_46598
  • RTS

RTS – DBP

DBP is a four-channel/four-button wired beltpack that runs on PoE+ (Power over Ethernet 802.3af and 802.3at) and connects using OMNEO IP technology. Its unique hybrid design supports both digital partyline and matrix keypanel modes: for use as a digital partyline device, DBP connects to an OMS; for use as a portable keypanel, including functionality like point-to-point communication, DBP can be connected to any RTS digital/IP matrix product using OMNEO – including OMI cards in ADAM/ADAM-M frames or OMNEO ports on ODIN frames. DBP automatically selects the correct mode of operation (digital partyline/OMS or keypanel/matrix) when connected and switched on.

DBP’s PoE-driven design gives it an unmatched level of scalability and makes it easy to add new users. In and Out PoE ports (two etherCON locking RJ45 connectors) allow up to six DBP devices to be daisy-chained together from the same PoE switch port when used in partyline mode. Up to 40 DBPs can be connected to an OMS, allowing for the creation of an extensive digital partyline system – all in addition to the other wired and wireless devices OMS supports. Depending on the matrix model/configuration, up to 64 DBPs can be connected to an OMI card for ADAM matrices, and up to 128 DBPs can be connected to one ODIN.

    Intercoms
  • Dante Ch: 4x4
  • AES67 Enabled
See the product
rts-DKP-3016_1200px|rts-DKP-3016_1200px
  • RTS

RTS – DKP-3016 Keypanel

The DKP-3016 is a 16-Position HD Color Display Desktop/Wall-Mount Keypane. The DKP-3016 is a 16-Position HD Color Display Desktop/Wall-Mount Keypane. Depending on the intercom environment, these products can be connected to both digital and analog RTS matrices and utilized as entry-level keypanels while still off ering the same intuitive, easy handling features. They can also be quickly installed in applications with predefi ned requirements where the comprehensive connectivity options of the existing KP-series models are not needed, but with the same consistent industrial design, hardware and software platform and high-quality audio performance.
  • Backward compatible with older technologies such as analog audio in USOC and 568-B connector formats.
  • Comes with 4 and 5-pin female XLR connectors, analog matrix connection, and RJ45 connector for OMNEO.
  • Talk/listen lever keys. Volume may be adjusted with the volume control knob.
  • New wide-angle high-definition display.
  • Enhanced navigation menus optimized for ease of use.
    Intercoms
See the product
rts-adam_1200px|rts-adam_1200px
  • RTS

RTS – ADAM

The ADAM is a full-size modular matrix intercom. The ADAM is a full-size modular matrix intercom.
  • 8 GPIO's Standard per Frame
  • Compatible with ALL Current & Legacy RTS Digital Matrix Intercom Keypanels & Accessories
  • Dual-Purpose Ports Support BOTH Keypanel and Four-Wire Audio
  • Fully Redundant Power Supplies & Controllers Standard
  • Individual Cross-Point Level Controls
  • Integrated Support for RTS Intelligent Trunking
  • Multi-Level IFB, ISO, Party Lines, Groups, and GPI's all STANDARD
  • Non-Volatile Configuration & Crosspoint Memory
  • RealTime Online Configuration & Monitoring
  • RTS UPL (User-Programmable Language) for Custom System Configurations via Pull-down Menus
  • Supports 16 to 880 users per system based on 7 RU frame(s)
  • Supports Custom Cards for Widely Used Industry Interface
  • Widest Variety of Interface Cards in the Industry
  • Widest Variety of Wiring Options in the Industry
    Intercoms
  • Dante Ch: 64x64
  • AES67 Enabled
See the product
