Product Information

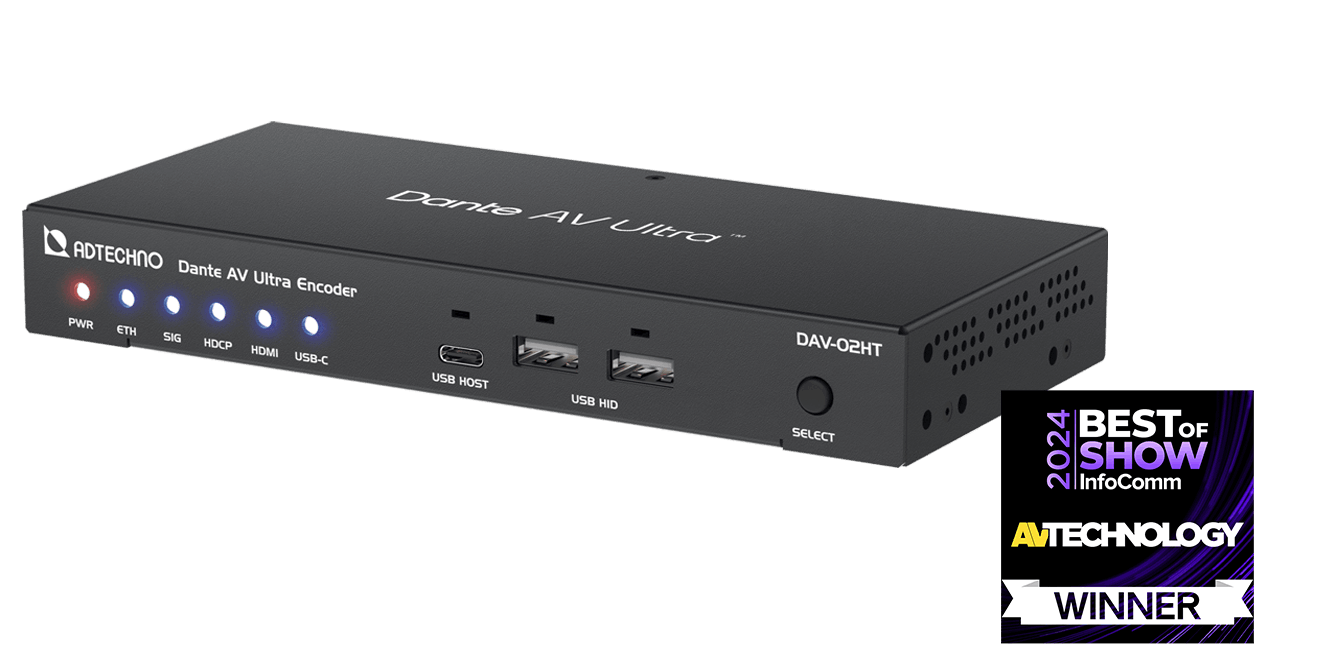

The DAV-02HT and DAV-02HR are state-of-the-art Dante AV Ultra Encoder and Decoder, offering 4K HDR UHD video with subframe latency over 1GbE networks.
Specifications
- Dante AV Enabled
Similar Products
- ZenWin
ZW-B404
Features
- Microphone/line input: 4 x balanced audio inputs.
- Line output: 4x balanced audio output.
- Dante：1 x Dante ® Ethernet interface connector, supporting POE power supply; 1 x Dante ® Ethernet interface connector; Two interfaces implement data exchange function.
- DC 12V: A DC connector used for connecting DC 12V1A power adapters.
- Input interface: 4-channel microphone/line input,
- 3-pin green wiring terminal Output interface: 4-channel line output,
- 3-pin green terminal block Gain: Input: 0~+48dB, 6dB per step;
- Output: -60~0dB,
- 1dB per step Maximum level: Input:+18dBu @ 0dB input gain;
- Output:+18dBu @ 0dB output gain
- Input impedance:>1.8k Ω Effective
- Input Noise (EIN): -119dB @ 48dB gain
- Effective output noise:<-79dBu @ 0dB gain
- Harmonic distortion:<0.05%
- Sampling rate: 44.1kHz or 48kHz
- AV Encoders & Decoders
- Dante Ch: 4x4
- 24-bit
- Prodys
Prodys – Quantum XL
Quantum XL is a powerful portable IP audio codec with a built-in audio mixer that extends the technology introduced in the existing Prodys Nomada codec family.
Quantum XL is a powerful portable IP audio codec with a built-in audio mixer that extends the technology introduced in the existing Prodys Nomada codec family.
Quantum codecs inherit world-class IP technology from the Prodys Ikusnet Video Codec Family: Automatic Jitter Buffer, Adaptive Bit rate, bonding of up to 7 IP links (Ethernet, 3G/4G, Wi-Fi) for secure audio streaming with the best possible audio quality.
A Wireless Communication Module is available with up to four 3G/4G data links with bonding capabilities. This module is external for better reception and versatile installation options.
The codec has 5 mic/line mono inputs and one stereo USB input/output that can be mixed, encoded and transmitted to form two independent stereo streams.
As an option, it is possible to replace the audio inputs for a Dante/AES67 or a Ravenna/AES67 interface.
- AV Encoders & Decoders
- NTP
NTP Technology – AES3 / AES67
AES Interface Card
8 x AES I/O
- 16 channels in and out
- 8 cards = 128 channels in and out
- Built-in Sample Rate Converter on input
- Sample rates from 44.1 to 192 kHz
- AV Encoders & Decoders
- Dante Ch: 64x64
- AES67 Enabled
