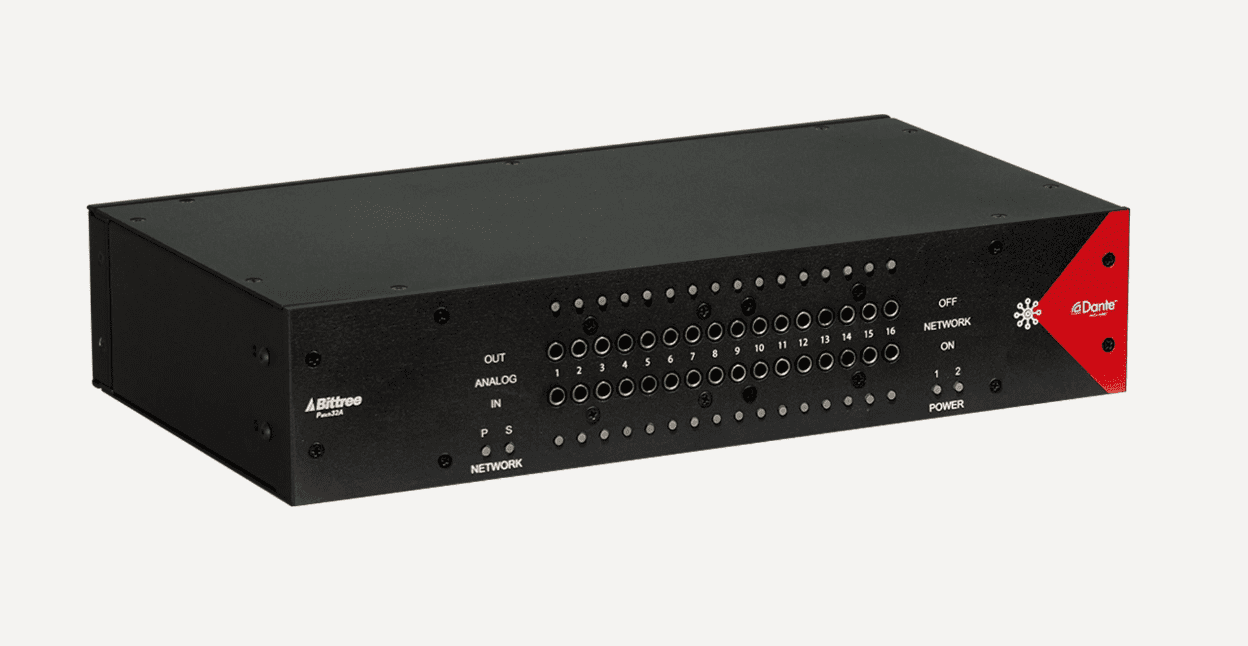

Bittree – Patch32A

I/O Interfaces

More details

Similar Products

GDP_1132_Kompl
  • GHIELMETTI

Ghielmetti – GDP 1232 Dante Plus

After the Release of the «Digital Patchbay 1132 Dante» in September last year, we are now proud to release the next generation of Ghielmetti device.

The new Digital Patchbay GDP 1232 Dante, goes now full Digital.

As in its analog version, this AES3 version offers you again efficiently the possibility to connect the “old world” with the “new world”. Thanks to the new GDP 1232 Dante, you can patch your Dante signals, add effortless 16 AES3 inputs to your Dante network or extract 16 Dante channels as AES3 outputs, just by simple patching.

The GDP 1232 Dante is not only a patching solution as it enable you also to mix all signals.

These newly mixed signals are then available to be fed into your Dante network. Through its front display and navigation knobs, there is no need for a Dante Controller.

Furthermore, Monitoring, mixing and setting can be made either from the front display or via a remote web browser. The GDP 1232 Dante is a 19”, 1 RU device, its assembly depth is 220 mm, which make it very interesting for integration in tight spaces.

    I/O Interfaces
See the product
musicrown-df16-8mne|musicrown-df16-8mne
  • Musicrown

Musicrown – DF16.8MNE

Musicrown's DF16.8MNE is a network digital matrix processor. Musicrown's DF16.8MNE is a network digital matrix processor.
  • 32 bit SHARC DSP, 96kHz sampling rate, 24 bit AD/DA convert.
  • 22x12 channels whole sound mixing matrix design, including 16 local analog input channels, 8 local analog output channels, 4 Dante network input channels and 4 Dante network output channels, 1 AUX internal sound mixing channel, 1 double effector internal marshaling channel.
  • Fully supports scalable DANTE digital network audio card and AEC automatic echo noise cancellation card, the users can freely configure and choose according to their requirements.
  • Dante digital network audio card configuration is a double standard network interface, which fully supports the function of unite switching and hot backup, hardware system can distinguish automatically, can use immediately when it inserts. Software internal and local analog signal can realize fully sound mixing matrix processing. Each channel has independent DSP processing function.
  •  AEC automatic echo cancellation card has powerful automatic echo cancellation function, automatic feedback cancellation and system environmental noise filtering. Effectively reducing the pickup of the speakers and the terrible echo which caused by the reflection of wall. It can also eliminates environmental noise that generated by the feedback of pickup, moreover the noise of air conditioner and fan. Making sure any environment have a noise-free, high definition audio and video system for many conference applications.
  •  AUX channel has powerful mixing function, such as threshold, level, attack time, release time, continually, adjustment, also with the automatic function of camera-tracking, threshold, level, attack& release time. And has independent PEQ processing function.
  • Unique design for EFX channel, has professional ECHO&REVERB double engine multiple stereo effectors inside. Can realize the meeting according to different voices to beautify and modify personalized , and also perfectly support various performance and karaoke effector requirement, very suitable for conference rooms, multifunctional halls, hotels, private clubs and other complex, with multiple function demand for the occasion.
  • Each analog input channels with +48V phantom power, MIC/LINK input gain switchable, MIC input sensitivity adjustable.
  • Input including low cut, independent feedback inhibition, PEQ, noise gate, gain, mute, phase, linkage adjustment and volume adjustment.
  • Output including X-over, PEQ, Gain, mute, compressor/limiter, phase, delay, linkage adjustment and volume adjustment.
  • Front panel has level indicator for input/output, USB port, standard Ethernet remote control RJ45 port and RS232&485 at rear panel. IP and ID address can set, network and unite management can realize maximal 250 units link control, but also has remote visit password protected function, make the system more stable and safe.
  • Design has thorough control code, fully support the third-party centre control and management, including all volume control, preset scene recall, parameter inquire and return code, current level return display, every input and output channels control. Etc.
  • 12 user presets can be save and recall, system work in power-off memory status, ensure the date would not lose.
    I/O Interfaces
See the product
product_detail_x2_desktop_DIGITAL_6000_EM_6000_DANTE_Sennheiser
  • Sennheiser

Sennheiser – EM6000 Dante

Higher channel density with maximum signal reliability at the same time: Digital 6000 is intermodulation-free and assures through its equidistant frequency grid excellent spectral efficiency and the simplest frequency configuration– even in the toughest frequency environments where other systems already fail. Error correction and audio error masking recognize and fix problems long before they even become audible. When it comes to setup and the user interface, the EM 6000 stands out for clarity, relevance and short pathways.

Digital 6000 can be seamlessly integrated into existing digital or analog infrastructures. The EM 6000 receiver has a digital AES-3 output with word clock inputs and outputs, high-quality transformer-balanced analog XLR and 6.3 mm jack outputs as well as a 6.3 mm headphone output. The Dante™ version with an Audinate Brooklyn ll card additionally offers two Amphenol RJ-45 connectors for integrating the receiver into a Dante™ network, for redundant networks or daisy chain cabling.

Whether we’re talking about reducing information down to the really meaningful key values or smart menus on a high-contrast OLED display, every operating element is a result of practical experience and designed for practical use. All the vital parameters are summarized in one view. Important functions can be reached directly via home screens without long navigation paths. The auto-setup enables scanning and frequency distribution to all connected devices directly via the receiver; naturally Digital 6000 can also be monitored and configured via the Wireless System Manager (WSM).

The EM 6000 is compatible with UHF Sennheiser antenna systems.

    I/O Interfaces
  • Dante Ch: 0x2
  • 24-bit
See the product
