Ghielmetti – GDP 1232 Dante Plus

Product Information

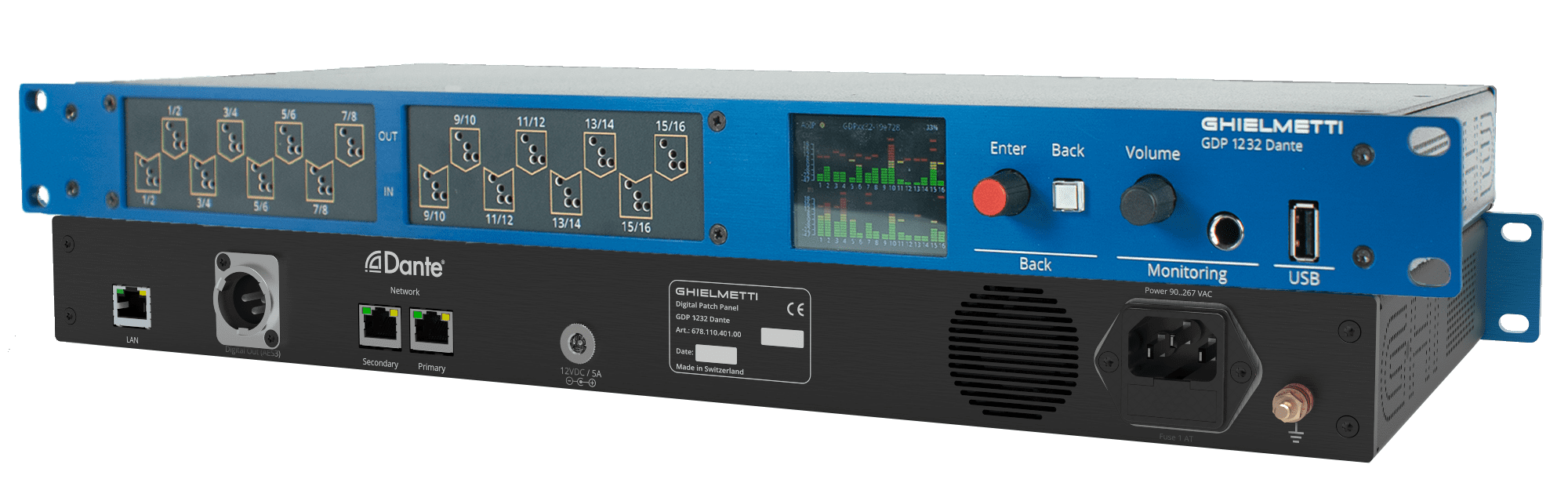

After the Release of the «Digital Patchbay 1132 Dante» in September last year, we are now proud to release the next generation of Ghielmetti device.

The new Digital Patchbay GDP 1232 Dante, goes now full Digital.

As in its analog version, this AES3 version offers you again efficiently the possibility to connect the “old world” with the “new world”. Thanks to the new GDP 1232 Dante, you can patch your Dante signals, add effortless 16 AES3 inputs to your Dante network or extract 16 Dante channels as AES3 outputs, just by simple patching.

The GDP 1232 Dante is not only a patching solution as it enable you also to mix all signals.

These newly mixed signals are then available to be fed into your Dante network. Through its front display and navigation knobs, there is no need for a Dante Controller.

Furthermore, Monitoring, mixing and setting can be made either from the front display or via a remote web browser. The GDP 1232 Dante is a 19”, 1 RU device, its assembly depth is 220 mm, which make it very interesting for integration in tight spaces.

SSL – Network I/O MADI-Bridge

The SSL Network I/O: MADI-Bridge is a broadcast specification bridge between the industry standard MADI audio format and IP audio networks using Dante. The MADI-Bridge enables any standard MADI device to connect to Dante based IP Audio networks with full redundancy maintained. Standard Broadcast Specification MADI to IP Audio Network Interface The SSL Network I/O: MADI-Bridge is a broadcast specification bridge between the industry standard MADI audio format and IP audio networks using Dante. MADI-Bridge can carry up to 64 channels per Bridge (@ 48kHz). Redundant PSU, MADI ports and IP Network ports mean the Bridge is built for uninterrupted operation. In addition to the inbuilt clock redundancy options in Dante controller, the MADI-Bridge also includes a pair of redundant sync inputs for use with black and burst video, tri-level and word clock sync sources. A front panel headphone socket (with rotary level control) provides inbuilt headphone monitor routing, to replace traditional patch bay fault finding functionality with equivalents in the IP Audio domain. 32bit MADI control tunnelling allows a pair of MADI-Bridges to be used to pass audio and user bits of a whole MADI stream across a network.

I/O Interfaces

Dante Ch: 64x64
24-bit

See the product

Focusrite

Focusrite – RedNet A16R MkII

RedNet A16R MkII is a 16-channel analogue Interface for Dante networks, with two channels of AES3 I/O. Individual input and output channel level controls allow for precise adjustment of all I/O levels using RedNet Control. With two power supplies and primary and secondary etherCON network connectors, RedNet A16R MkII is perfect for critical-path applications in recording, post-production, live sound and broadcast. Built-in redundancy features allow for silent fail-over in the event of power or network outage, providing reassurance for system technicians.

Analogue inputs and outputs are connected through four rear-panel AES59-configured DB25 connectors, while an additional pair of AES3 I/O is provided through male and female XLR for added flexibility. The XLR input can accept DARS signals in addition to AES3. Word Clock I/O on BNC connectors allows external devices to clock to RedNet A16R MkII, or alternatively allows RedNet A16R MkII to act as a network clock grand master, synchronised to external input. RedNet A16R MkII is well suited to permanent installation and repeated strike and setup: all connectors lock and remain terminated even under stress, providing worry-free installation and peace of mind once situated in a rack. In addition, all Focusrite Pro products come with a three-year warranty and award-winning customer support.

I/O Interfaces

Dante Ch: 18x18
24-bit

See the product

BARE

BARE – G-10AD

Features: The exquisite and minimal structural design highlights the modern atmosphere and conforms to ergonomics. Special electret capacitive dual microphone core design, clear and bright sound quality, high sensitivity; Support mainstream network audio protocols, use network cables to connect to the switch, and transmit audio in the network to realize signal interconnection and intercommunication; Using POE (Power over Ethernet) power supply and analog phantom power supply, digital and analog dual backup, the system is more stable. Provide standard balanced XLR interface to transmit analog audio: Provide standard RJ45 network interface to transmit digital audio: The entire expandable Dante system has 512 two-way audio channels; Original microphone adjustable directivity technology, supports 5 modes: omnidirectional, cardioid directivity, super cardioid directivity, sharp cardioid directivity, figure 8 directivity, etc. Equipped with 5 switch mode options: 1. Power-on mute mode, then press to speak; 2. Power-on speaking mode, and then press mute; 3. Long press the speaking mode to release the mute; 4. Long press the mute mode to release the speech; 5. , Voice control mode; Customizable remote control switch Anti-radio frequency and mobile phone interference; The base is equipped with damping rubber to effectively reduce the noise caused by external vibration to the microphone.

I/O Interfaces

See the product
