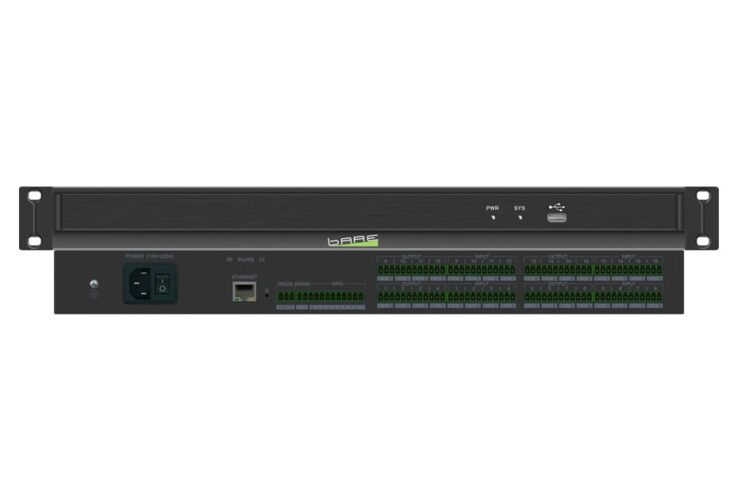

BARE – BR-106A


More details

Similar Products

TASCAM_-_MM-4D-IN-E
  • TASCAM

TASCAM – MM-4D/IN-E

Built-in DSP 4 mic/line input Dante converter to respond to various needs of contractor market and professional audio scene. Built-in DSP 4 mic/line input Dante converter to respond to various needs of contractor market and professional audio scene. The MM-4D/IN-E is a compact converter that converts 4-channel mic/line input signals into Dante signals. With half the size of a standard 1U rack, the MM-4D/IN-E is suitable for different Dante systems as an exquisite analog output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. MM-4D/IN-E supports up to 96kHz/24bit and uses Euroblock connectors for analog mic/line input.
    I/O Interfaces
  • Dante Ch: 4x4
  • 16-bit, 24-bit
inter-m-DASR-288_600px|inter-m-DASR-288_600px
  • Inter-M

Inter-M – DASR-288

The DASR-288 is a digital audio transport system utilizing Audinate’s Dante™ network audio solution. The DASR-288 is a digital audio transport system utilizing Audinate’s Dante™ network audio solution. The DASR-288 connects to your network with a single Ethernet cable. It is a Dante Break Out / ecoder interface in a 2RU form factor designed for all types of commercial AV installations. It offers eight channels of line-level analogue in and 8 line-level analogue outputs. Precision 24-bit A-D and D-A converters are used for superb audio performance with a 119dB dynamic range at sample rates up to 192kHz. This product is used as the audio matrix, each having eight inputs, where you can send uncompressed audio with low latency using standard TCP/ IP Ethernet network. It’s remotely controlled via the network and can be placed anywhere in a facility. Unique to the DASR-288 is its Data tunneling. No other manufacturer offers this feature, which allows you to transport with the Digital audio, 8 contact closures in and 8 contact closures out together combined with either RS-232C serial data. Each of the 8 balanced analog inputs and 8 outputs may be assigned to any Dante flow in the system, either by means of the Audinate’s Dante Controller Windows or OSX application or Inter-M’s own S-Connect Windows Software. The S-Connect allows for system configuration as well as easy channel switching. The S-Connect Software is designed to operate by simple touch screen. Dual redundant Gigabit Dante Network connections are available. Both primary and secondary connections support full Gigabyte ports for full redundancy. Signal Monitoring is available for all 8 inputs and 8 outputs with a front panel mounded dual LEDs, indicating signal presence and clipping. Network status LEDs also monitor network connectivity and transition speed. Brand Interoperability Based on industry standards, Audinate’s Dante, is an uncompressed, multi-channel digital media networking technology, with near-zero latency and synchronization. Dante is the preferred audio networking solution that has been adopted by more pro-audio AV manufacturers than any other networking technology. Interoperability is a reality today. The Inter-M DASR-288 is compatible with hundreds of other Dante-enabled products available from the world’s leading manufacturers, enabling you to mix devices from multiple manufacturers.
    I/O Interfaces
peai9090a
  • Profitt

Profitt – PEAI-9091

The devices are designed for:

- connection of analog or digital audio signals in AES 3 format to the local audio transmission network ( AoIP ) using AES 67, Dante protocol ;

- connection of microphones to the local audio transmission network ( AoIP ) via AES 67, Dante protocol ;

- audio data exchange between Ethernet Dante , AES 67 and 3 G / HD / SD SDI digital video signals (devices with index ' V '); - creation of a distributed network of audio switches with a common switching field; - transfers

Ethernet ( AES 67, Dante ) over optical links;

- indication of audio signal levels ( PEAI -9090, PEAI -9091).

Ethernet Dante audio interfaces , AES 67 support:

- 8 in, 8 out ( PEAI -9088, PEAI -9090) and 16 in, 16 out ( PEAI -9091) balanced analog audio

or 4 in, 4 out ( PEAI -9088, PEAI -9090) and 8 in, 8 out ( PEAI -9091) AES 3 digital audio channels .

Devices with suffix ' V ' contain a 4-channel audio communication module between Ethernet Dante , AES 67 and 3G / HD / SD SDI digital video signals . The devices have an SDI input and two SDI outputs . Up to 16 audio channels of SDI embedded audio are supported .

Devices with suffix ' R ' contain an AES 3 digital audio input/output module with support for User Bits and Channel Bits (compatible with Riedel intercom equipment ).

The PEAI -9090 and PEAI -9091 devices can be equipped with submodules with microphone inputs (suffix ' M ' in code). This provides a voltage supply of '+48 V ' to the microphones and control of the gain of signals from the microphones.

The front panel of the PEAI -9090 and PEAI -9091 has a display that shows indicators for input and output signals.

The type of audio signals for inputs and outputs, independently of each other, is selected by the User (should be reflected in the device code).

The devices have two electrical Ethernet 100/1000 BaseT ports - primary ( Primary ) and backup ( Secondary ) and one optical (except for PEAI -9091). A redundant electrical Ethernet port provides connection to a redundant audio transmission network or device cascading. The presence of an optical transmission line through a separate SFP module allows you to transmit Ethernet ( AES 67, Dante ) over optical communication lines over long distances

( Ethernet SFP module not included in the device; see section 'SFP modules optical and electrical', section II , pos. 1.1:1.6).

Management and monitoring are carried out over the Ethernet network using the proprietary Dante Controller program and via the WEB interface.

Separate power inputs for main and backup power supply. 'Hot' replacement of power supplies.

Audio connectors DB 25 and RJ 45 (on module ' R ').

    I/O Interfaces
