Product Information

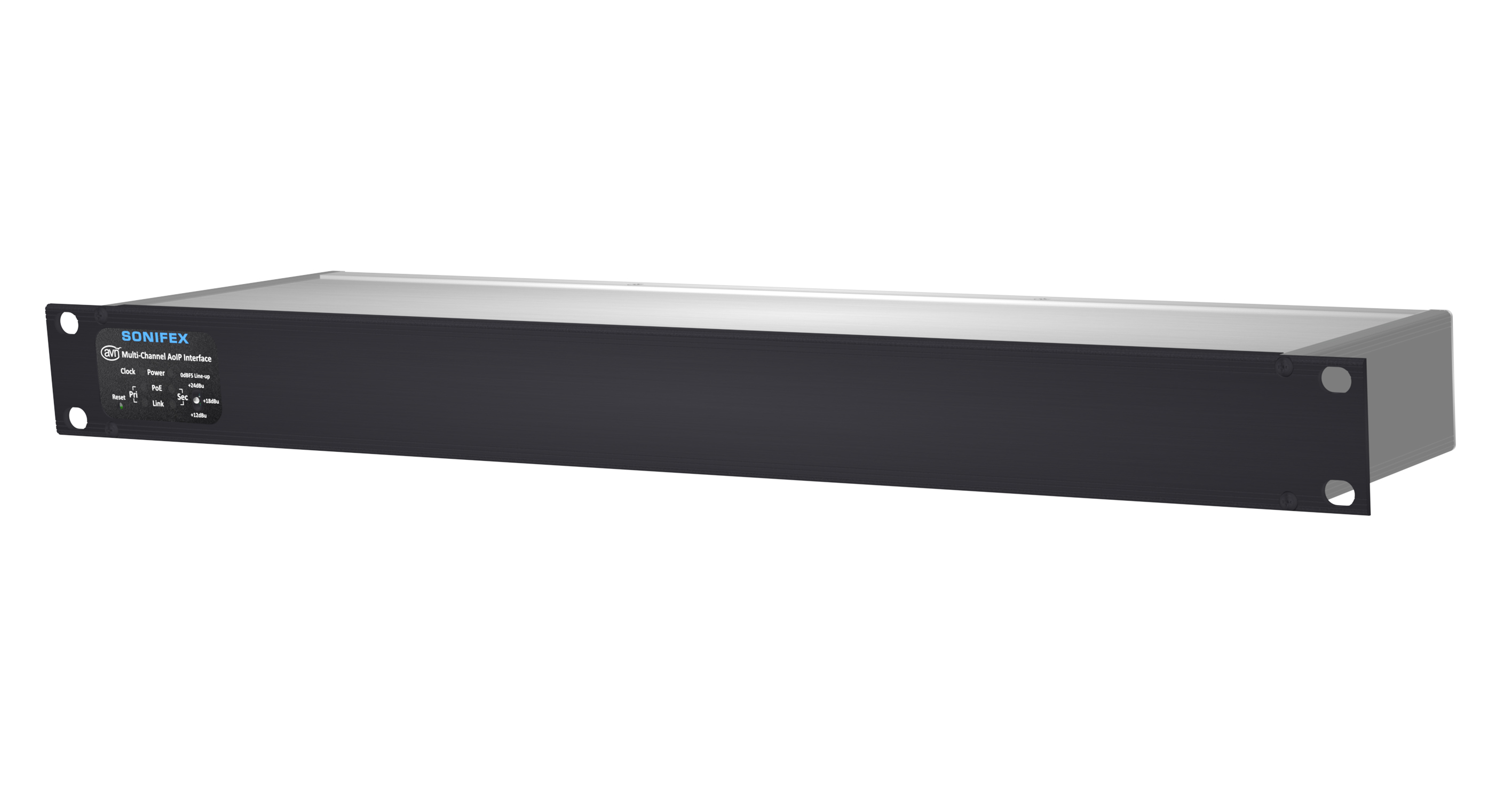

Designed for broadcast, live production, and professional AV environments, the AVN-AO16-DNT provides a cost-effective and dependable solution for transporting low-latency audio between analogue and Dante network domains.
Product Features
- Dante AoIP.
- 16 x balanced analogue outputs on Neutrik XLR.
- Adjustable global 0dBFS line up selection (+12dBu/+18dBu/+24dBu).
- Powered by PoE on either (or both) Ethernet ports, offering power supply redundancy.
- Alternative USB-C DC power input, when PoE is unavailable.
- 2 x RJ45 connector, (1Gb/s Ethernet Port), allowing the unit to operate in redundant or switched modes.
- PoE and Link LED status indicators for each Ethernet port.
- Rear-panel mount for single/top locking USB-C cables.
- Rear-panel cable tie mount to provide strain relief.
- Clock LED status indicator.
- Configuration using Dante Controller.
- AES67 operation & Dante Domain Manager compliant.
- 1U 19″ rack-mount aluminium chassis.
Specifications
- Dante Output Channels: 16
- Bit Depth: 16-bit, 24-bit, 32-bit
- Sample Rate: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
- AES67 Enabled
