Product Information

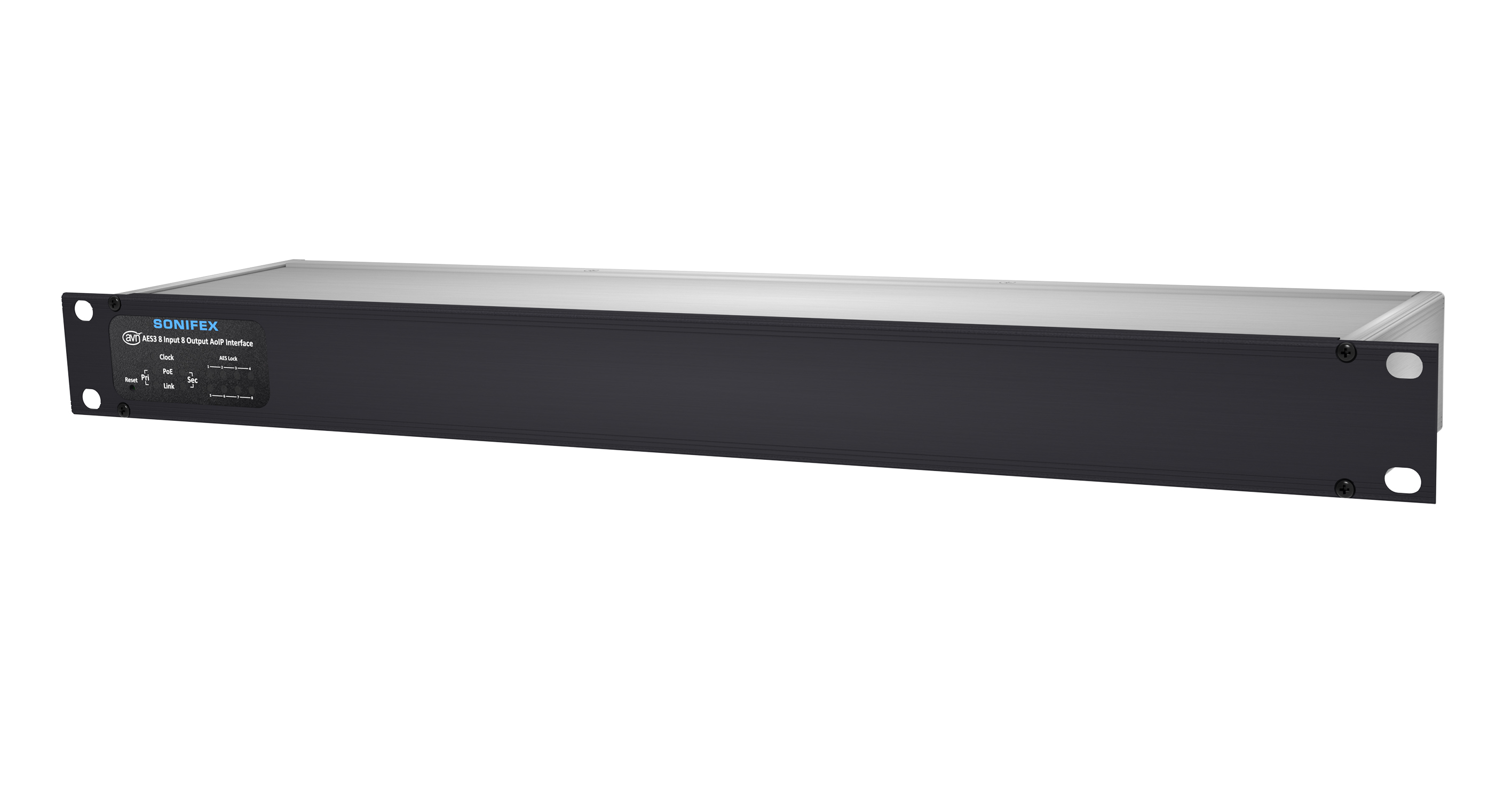

Designed for broadcast, live production, and professional AV environments, the AVN-AESIO8-T-DNT provides a cost-effective and dependable solution for transporting low-latency audio between AES3 and Dante network domains.
Product Features
- Dante AoIP.
- 8 x balanced digital stereo AES3 inputs on terminal block connectors, supporting input rates of 32kHz – 192kHz.
- 8 x balanced digital stereo AES3 outputs on terminal block connectors, output matches Dante system sample rate.
- 2 x RJ45 connectors (1Gb/s Ethernet Port) allowing the unit to operate in redundant or switched modes.
- PoE and link LED status indicators for each ethernet port.
- Front panel clock, PoE and link LED status indicators.
- Front panel AES3 lock LED status indicators for each input.
- Powered by PoE on either (or both) ethernet ports, offering power supply redundancy.
- Alternative USB-C DC power input, when PoE is unavailable.
- Configuration using Dante Controller.
- Dante Domain Manager compliant.
- AES67 operation.
- 1U 19″ rack-mount aluminium chassis.
Specifications
- Dante Ch: 8x8
- Bit Depth: 16-bit, 24-bit, 32-bit
- Sample Rate: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
- AES67 Enabled
