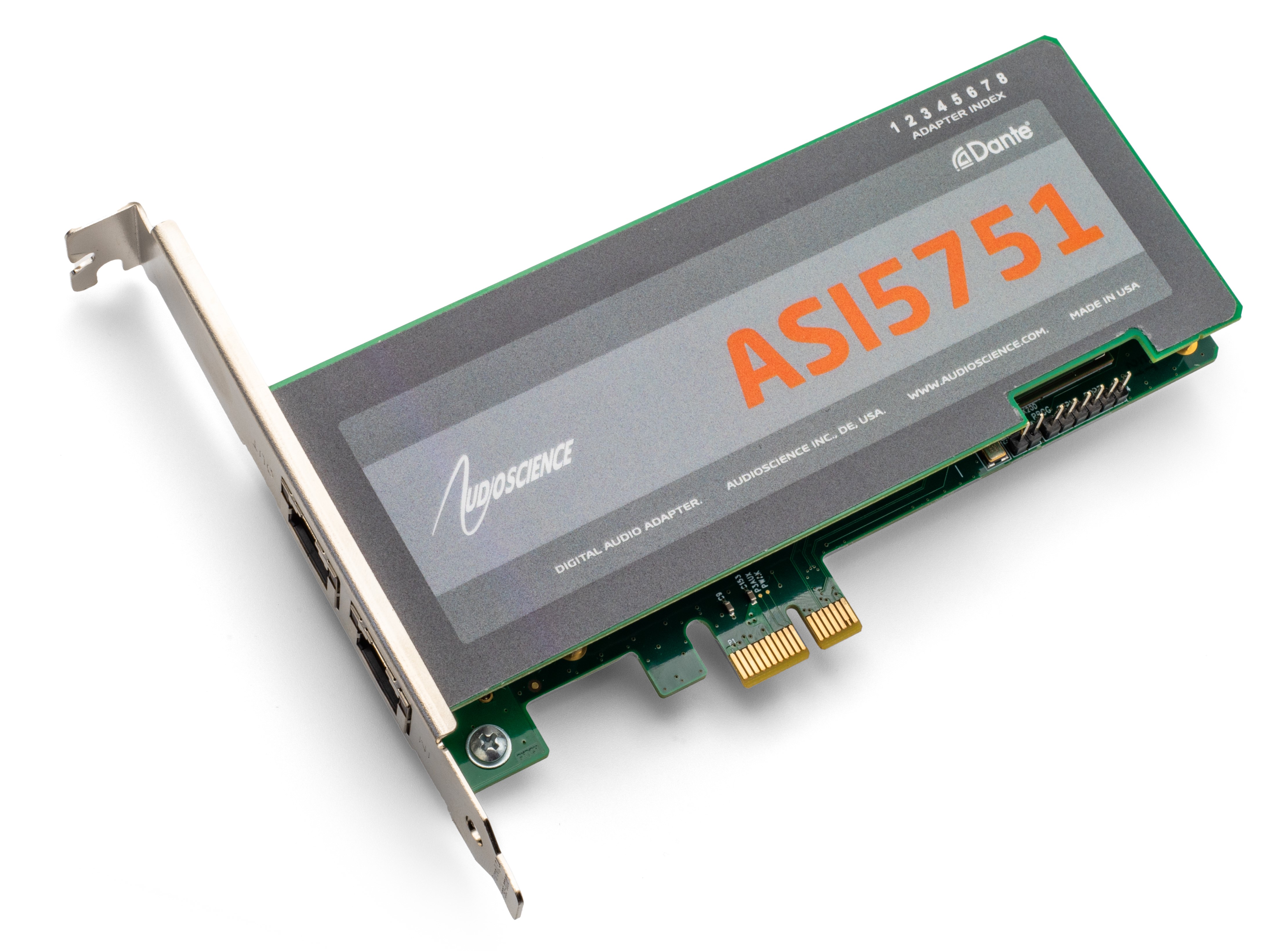

ASI5751 Dante sound card

Product Information

The ASI5751 and ASI5752 provides Dante inputs and outputs on Gigabit Ethernet in a small form factor half height PCIe card. They support both Windows and Linux operating systems with the ability to have up to 8 cards in 1 system to maximize capacity.

The ASI5751 provides either 16 Play/Record Stereo or 32 Play/Record Mono streams of PCM playback and record at 32-bit PCM precision with a sample rate of 48kHz. The ASI5751 also features advanced Mixing and Routing: AudioScience’s unique ‘anything to anywhere’ mixing and routing capabilities offer unparalleled flexibility and control, making it ideal for intricate audio workflows.

The ASI5752 is designed for low-latency applications and routes 64 channels of Dante input and output to configurable WDM devices that can be set as 1,2,4 or 8 channels, giving you a flexible design and increased capacity for demanding applications while streamlining the signal flow for simpler operation.

For complex or simple audio setups, the ASI5751 and ASI5752 provide unparalleled flexibility and performance. This makes them exceptional choices for broadcast, installation, and live sound applications.

Digigram – LX-Dante

The PCIe LX-DANTE sound card bridges professional audio software applications to Dante networks. By supporting 128 x 128 redundant channels, and providing extremely low latency, LX-DANTE matches all the requirements for high channel density, low latency, and reliability of professional DAWs used for high quality recordings, processing, and multi-channel playout over Dante networks. The PCIe LX-DANTE sound card bridges professional audio software applications to Dante networks. By supporting 128 x 128 redundant channels, and providing extremely low latency, LX-DANTE matches all the requirements for high channel density, low latency, and reliability of professional DAWs used for high quality recordings, processing, and multi-channel playout over Dante networks.

Soundcards - physical / virtual

See the product

miniDSP

Flex 8N

The Flex EIGHT-N joins the miniDSP Flex family as a Dante‑capable audio processor that natively streams Dante/AES67 audio. It delivers eight Dante/AES67 AoIP channels plus four analog outputs for seamless, low‑latency multi-channel distribution within any Dante ecosystem.

Featuring multiple digital inputs, eight digital outputs and four analog outputs, the Flex EIGHT-N can drive active speakers up or be set up as a multi-zone processor via our flexible routing. Every output has miniDSP’s full processing suite: parametric EQ, IIR and FIR filters, configurable crossovers, advanced biquad programming and precise delay.

Digital inputs include USB, S/PDIF (RCA and optical) and Bluetooth (LDAC/aptX). An OLED front panel and encoder/volume knob provide local control, and firmware supports upgrades such as Dirac Live room correction.

In short, the Flex 8N is a compact, Dante‑ready powerhouse for modern active speaker and subwoofer systems, offering direct network streaming and sophisticated loudspeaker processing.

Soundcards - physical / virtual

See the product

Focusrite

Focusrite – RedNet PCIeR

RedNet PCIeR combines extremely low latency with Ethernet redundancy, offering the best possible system performance coupled with exceptional reliability. RedNet PCIeR combines extremely low latency with Ethernet redundancy, offering the best possible system performance coupled with exceptional reliability. The card requires a standard PCIe slot in a Windows or Mac computer and delivers up to 128 channels I/O with under 3ms latency*. Dual RJ45 Gigabit Ethernet connectors switch automatically according to network availability and link the audio computer to the rest of the network. Key Features and Performance

Dual Ethernet ports for full redundancy
128 channels in and 128 channels out at 96kHz and below
64 channels in and 64 channels out at 176.4kHz and 192kHz
Compatible with any Dante network
Up to 192 kHz sample rate
Under 3ms analogue-to-analogue round-trip latency through DAW with Focusrite RedNet A-D/D-A*
ASIO and Core Audio drivers
Thunderbolt PCIe chassis compatible

*Dependent on ASIO/Core Audio buffer size

Where to Buy: Focusrite RedNet PCIeR card

Soundcards - physical / virtual

See the product
