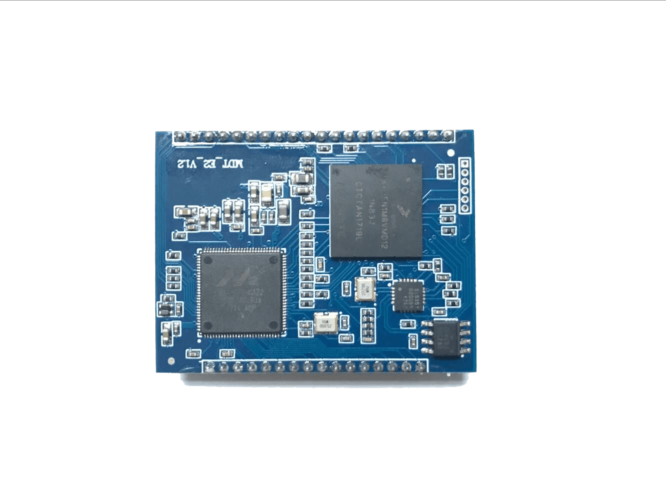

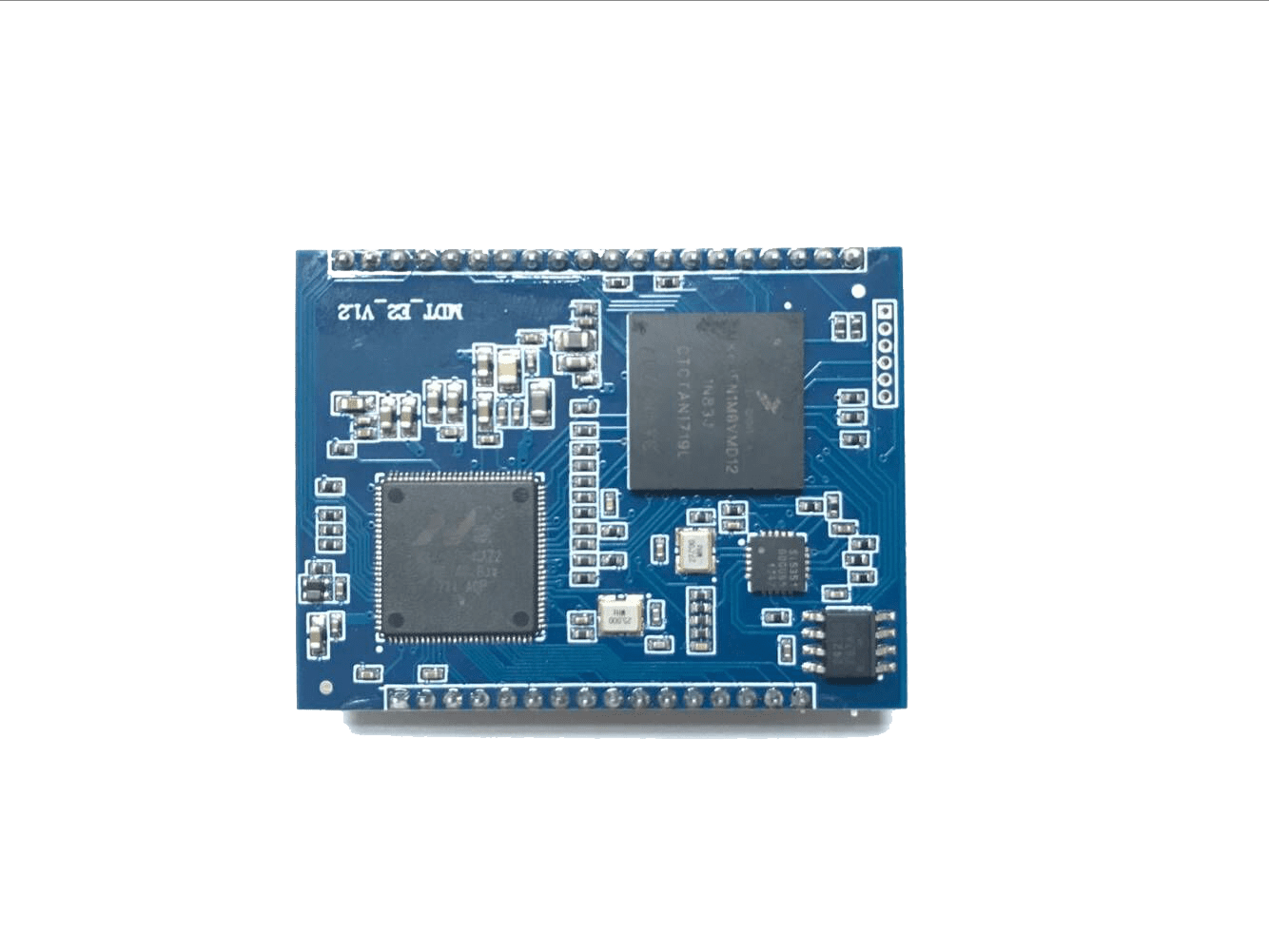

Kingray - MDT22-E2

Kingray – MDT22-E2

More details

Product Information

▲ 2 audio (digital signal) inputs, 2 audio (digital signal) outputs, external GPIO

▲ ARM processor cooperates with embedded operating system to expand Cirrus Logic Audio Codec

▲ 24-bit, Σ- △ AD / DA, 44.1kHz, 48kHz, 88.2kHz, 96kHz sampling rates are optional,

▲ I2S digital audio format

▲ Freely set the sampling rate and equipment name

▲ Network audio transmission and control use standard Category 5 network cable (CAT5)

▲ Supports PCM16, PCM24, and PCM32 encodings, and can also use custom encoding formats
