Product Information

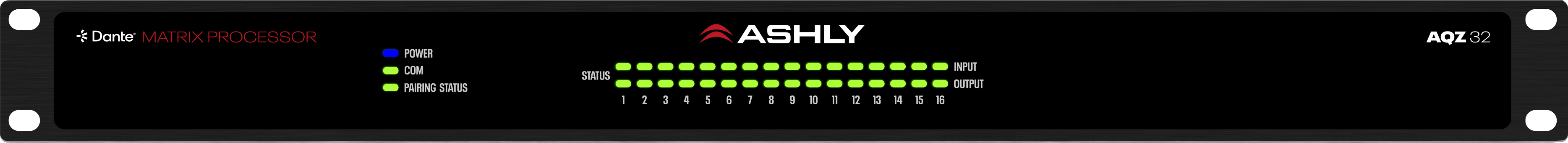

The AQZ32 integrates AquaControl™ with Dante® Embedded technology, significantly enhancing its I/O capabilities making it a versatile addition to any audio setup. Powered by Ashly’s next-generation AquaControl™ DSP engine, the AQZ32 offers an intuitive, web-browser based interface that requires no specialized training, getting you up and running quicker and smoother. It includes 16 analog mic/line inputs each with software controlled 48V Phantom Power and mic gain settings up to 66dB. It also has 16 analog balanced line outputs. Dante inputs 1-16 can be independently selected instead of each corresponding analog input number. So, you can choose if you need processed analog or Dante sources. Dante inputs 17-32 are available on each mixer to expand the mix with these Dante sources. Dante outputs 1-32 allow you to route processed inputs and outputs to amps and other devices. A pair of AQZ32s can be setup to provide a 32×32 audio system.
Specifications
- Dante Ch: 32x32
- Bit Depth: 32-bit
- Sample Rate: 48kHz
- AES67 Enabled
