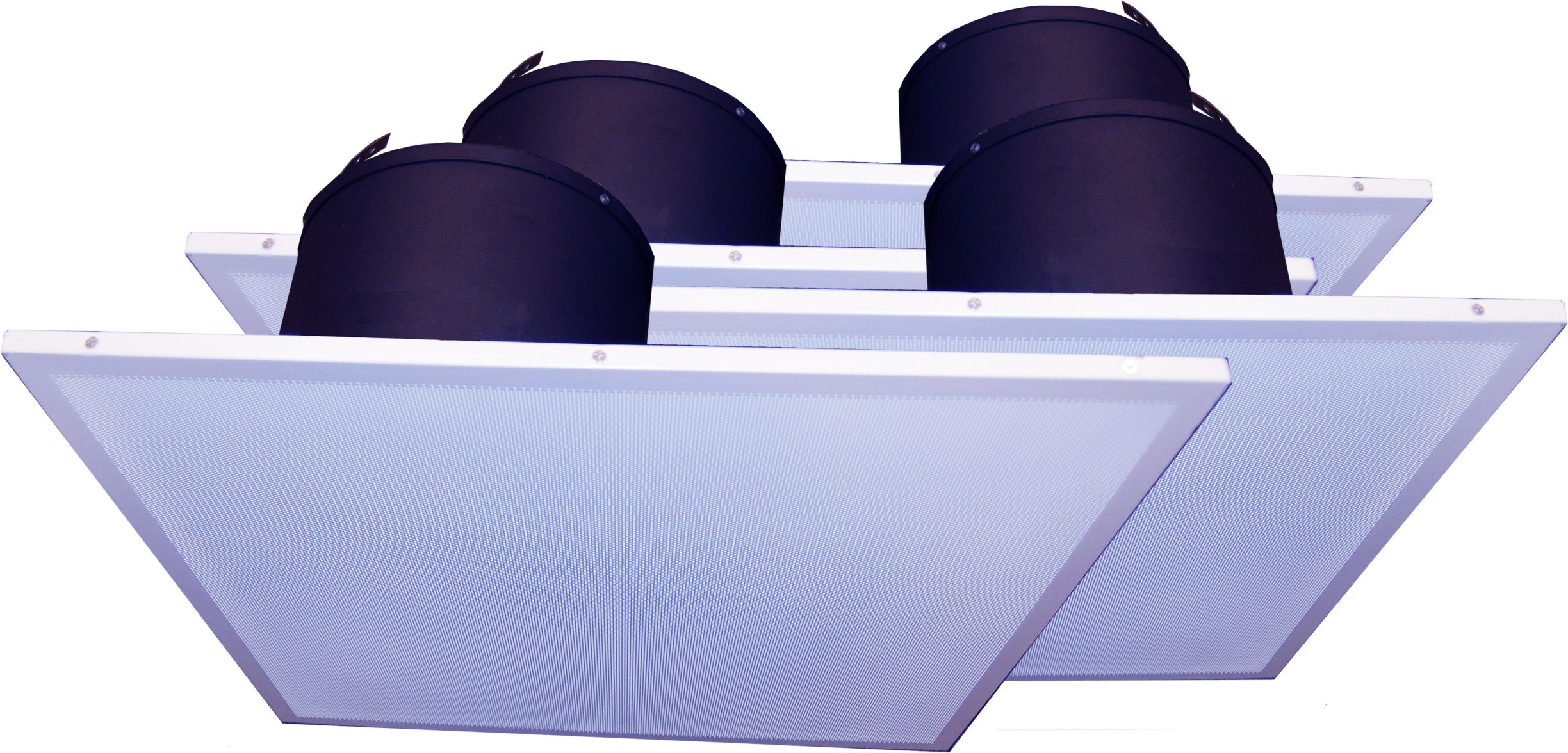

AMK – DT64-B-X

Speakers

More details

Similar Products

CNET8D
  • DMIX

DMIX – CNET8D

Technical parameters：

Speaker model: CNET8D

Speaker type: 8" Active two-division loudspeaker

Unit configuration: 8"(200mm) woofer 1"(25mm) Treble driver

Frequency response: 80Hz-19kHz

Rated power: 100W

Sound pressure level: 115dB

Sensitivity: 92dB

Rated impedance: 8Ω

Directivity (H×V) : 80°×80°

Dante Digital network interface: 2×RJ45 interface

Analog interface: 1×XLR Balanced input，1×XLR Balanced output

Active power amplifier module: 100W

Volume knob control: Yes

Central control interface: RS232

Size (mm) : 250×391×235 (W×H×D)

    Speakers
See the product
pan-acoustics-pb04_0
  • Pan Acoustics

Pan Acoustics – PB 04

Pan Beam PB 04 is a column speakers with a slim, appealing design. The PB 04 can generate an single beam, to set the focus on a listening area. It is possible to modify the beams by means of various optimizers (max SPL, min side lobes). Operated via a user friendly Windows Software, the connection to the computer is made through a RS 485 network. Over the digital signal processing the vertical and the inclination angle, the volume, sound and delay can be entered and controlled. The Pan Beam PB 04 is equipped with four specially- designed 3.5“ chassis, DSP modules and four digital amplifiers offering maximum performance of 80 watts per channel. A single Pan Beam PB 04 can cover a listening area up to 15 meters, with constant speech intelligibility and sound pressure. The DANTE option offers some interesting features, for the active column speakers. The Pan Beam series can be operated with two independent audio streams with a sampling frequency of up to 192 kHz. The priority function in the Pan Beams allows the automatic switchover of the audio source, e.g. switching between programs and massaging signals. DANTE option provides a primary port and a secondary port, which can be used in redundant mode or daisy-chain mode. The daisy-chain enables the connection of another compatible DANTE-devices to the network (such as a digital Stagebox). Pan Beam functions (Setup Beamsteering, EQ, Delay etc.) can be set and monitored via Dante audio network.
    Speakers
See the product
fohhn-DLI-130_1200px|fohhn-DLI-130_1200px
  • Fohhn

Fohhn – Linea Focus DLI-130 DAN

The active, electronically inclinable DLI-130 DAN line source speaker enables intelligent and target-oriented sound coverage in venues that have the most difficult acoustic conditions. Using intuitive software, both the vertical dispersion characteristics and the inclination angle of the loudspeaker beam can be precisely adjusted – in real time – to perfectly suit to the room’s acoustic situation. The Linea Focus DLI-130 DAN is a high performance line source system, which can be electronically controlled and monitored. The system is equipped with eight state-of-the-art Class D amplifiers and DSP technology specially developed for this area of application, plus eight coated 4” long excursion drivers. This perfect balance of amplifier-, digital signal processor- and loudspeaker technology enables a maximum SPL of 124 dB to be achieved. The DLI-130 DAN comes with a digital input interface for DANTE. The loudspeaker’s vertical beam dispersion characteristics can be intuitively controlled – in real time – using FOHHN AUDIO SOFT: The vertical beam width, ranging from 0° to 90°, and vertical inclination angle, ranging from -40° to +40°, can both be adjusted in precise 0.1° increments. This means that unwanted reflections from floors and ceilings can be avoided. The result: optimum levels of speech intelligibility, a pleasing sound image and excellent sound quality – even in the most challenging acoustic conditions.
    Speakers
  • Dante Ch: 8x0
  • 48kHz
See the product
