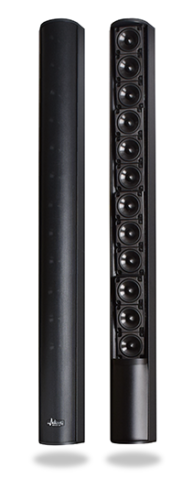

The R110+ is a 110cm active column, which is designed to be mounted vertically.
With a nominal range of 20m, it offers a high-quality alternative for medium sized spaces in airports, train and underground stations, conference rooms, churches or shopping malls when you need to run the audio over a network.
Ray-On+ is reserved for indoor use, it cannot be subjected directly to rain.
Range: 20m at ±5dB
● Model: BR-10D6
● Specification: 6 inch 2 frequency division
● Driver: low frequency 6 inch, high frequency 1 inch
● Power: 80 watts
● Frequency response: 60-18KHz
● Sensitivity (W / M): 94dB
● Scattering angle: 80x60
● Crossover frequency 2.5KHz
● Audio transmission: Dante digital audio transmission card
● Active power amplifier module: Class D power amplifier 200 watts 8 ohms
● Dimension (W * D * H): 205x205x350mm
Dante 4 5” Column Speaker
| Frequency Range | ±4 dB (90 Hz to 19 kHz) |
| Nominal Sensitivity | 96 dB |
| Nominal Coverage Angles (Horizontal×Vertical) | 110°×70° |
| Drivers | Woofer: 4×4 5”, Tweeter: 1×1 35” |
| Interface | |
| Ethernet Port | 1 Dante Audio (RJ-45) |
| Cascade Port | N/A |
| Power | |
| Power Consumption | 60 W, 8 ohms |
| PoE Standard | IEEE 802 3af (PoE), IEEE 802 3at (PoE+) |
| PoE Signaling | Powered Device (PD) |
| PoE Power | 85 W (peak power) |
| Enclosure | |
| Chassis Material | Metal |
| Chassis Color | Black |
| Chassis Dimensions (Hight×Width×Depth) | 750×180×160 mm |
| Environment | |
| Operating Temperature | +32 to +104 °F (0 to +40 °C) |
| Humidity | 10% to 90% RH (non-condensing) |
| Compliance | |
| Regulatory Compliance | FCC, CCC, CE, RoHS |
