Product Information
Features:

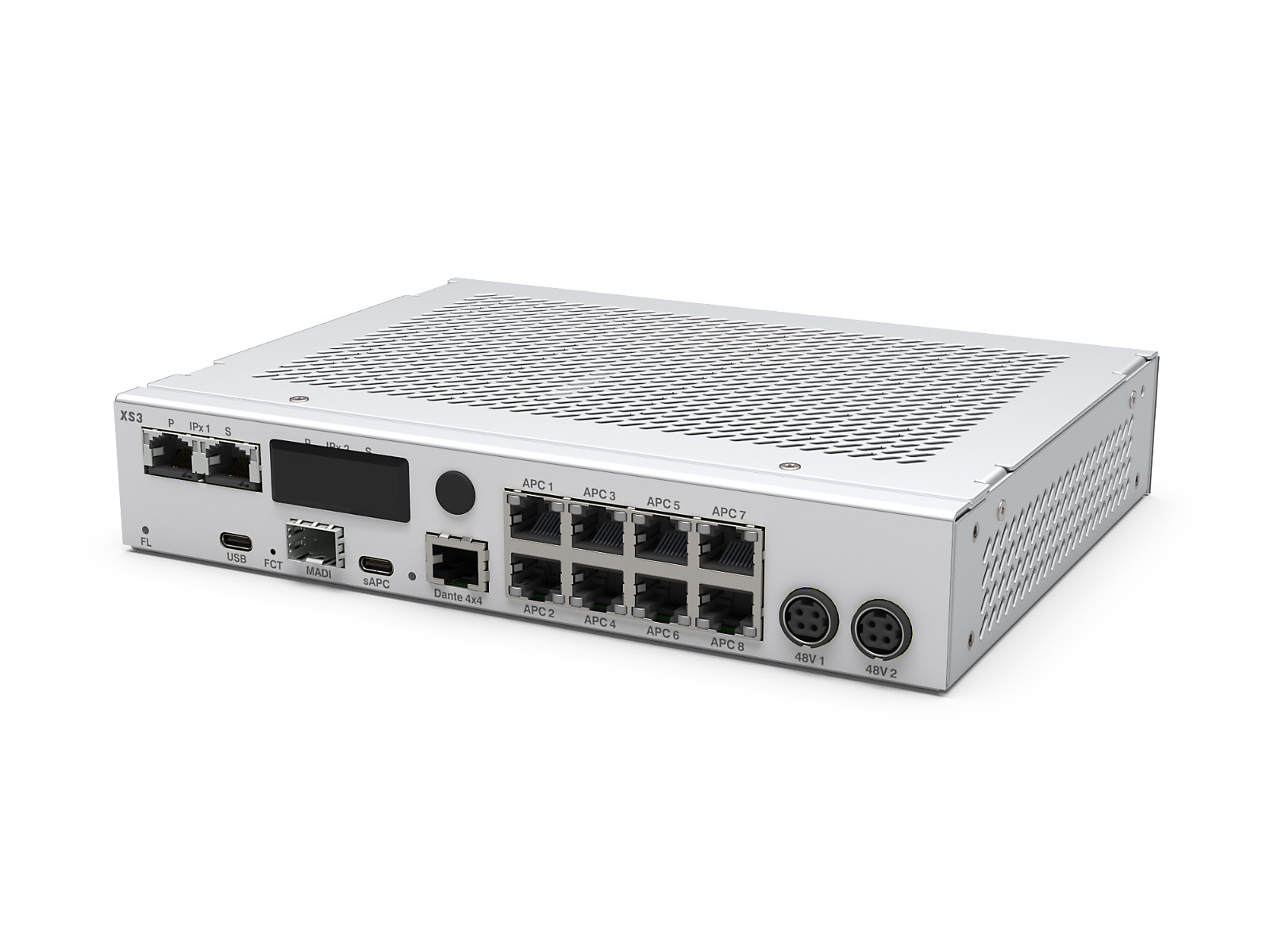

- DSP & Controller for up to 20 faders
- Dante 4×4, 8 APC
- 1 IPx slot for AES67 or Dante
- 1 SFP slot for MADI, USB 16×16
- 2 power in 48V
- SX Config Wizard Software incl.
- optional 52-1950 allows Toolbox
Similar Products
- MC2 Audio
Delta DSP40
Powerful processing features, such as FIR filtering, dynamic eq, and Dante networking (optional), work alongside unique enhancements including 4 local + 4 aux DSP channels (also supplied to the network), meaning a single Delta DSP amplifier can control a stereo 4-way system with no external processing.
Configure and tune using a fast, powerful combination of AudioCore (XTA’s fast efficient control software platform) and DeltaDirect, the bespoke iPad app. Every aspect of a network of amplifiers can be controlled and monitored, wirelessly. USB, direct Ethernet and RS485 control options plus configurable GPIO offer unparalleled flexibility.
All MC² Audio products are covered by a 5 year warranty.
- DSPs (Digital Signal Processors)
- AtlasIED
AtlasIED – BB-816DT
The BB-816DT is a BlueBridge DSP audio processor featuring a 8 Input and 16 Output configuration with Dante™ that features powerful and flexible tools offering mission critical solutions to satisfy the exact needs of any installation.
- DSPs (Digital Signal Processors)
- Magnetic
Magnetic – MA-1616Dante
| Mode | MA-1616Dante |
| Input Channels | 16 |
| Output Channels | 16 |
| Scenem anagement | 8 sets of pre -set scenes |
| Input channel features | Pre-amplification, signal generator, expander,compressor, automatic gain control, 5-section PE Q |
| Output channel features | 8-section PEQ, delayer, frequency divider, high - lowpass filter,lim iter |
| Sampling rate | 48kHz |
| Dynamic range from input tooutput | >110dB |
| Phantom power | DC 48V |
| Input common-mode reject ion | 75dBu @ +20dBu,60Hz |
| Channel isolation | 105dB |
| Frequency response | 20~20kHz (±0.5dB ) |
| Total harmonic distortion (THD+N ) | ≤0.005% @1kHz,+4dBu |
| Max. input gain | 54dB |
| Input impedance | 2KΩbalance |
| Output impedance | 100 ohm |
| Max. output level | 20dBu |
| Power supply | AC 110V~230V AC, 50Hz /60 Hz |
| Working temperature | 0-40℃ |
- DSPs (Digital Signal Processors)
