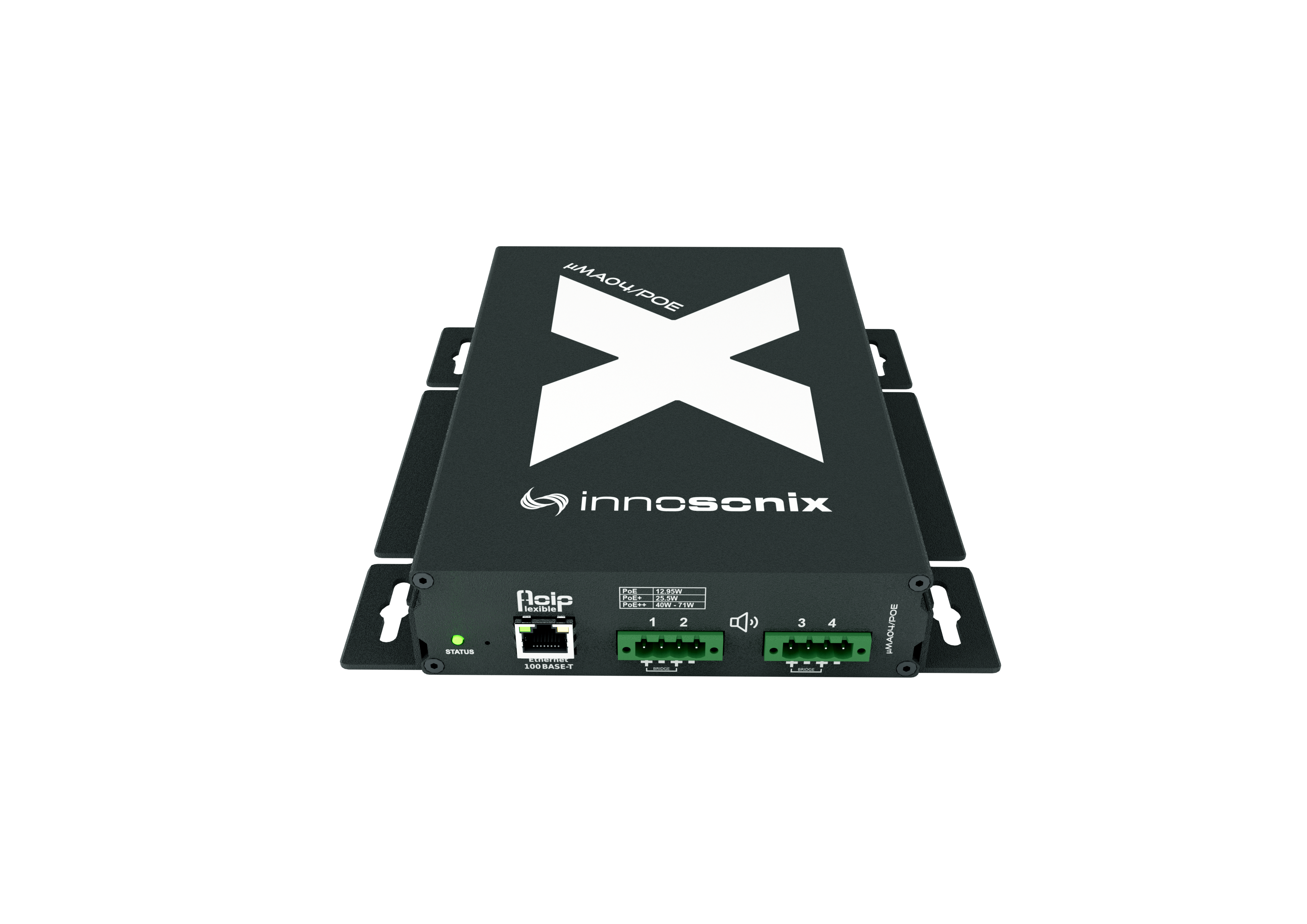

µMA04/POE

Amplifiers

More Details

Similar Products
  • Biamp

Voltera – D-4800-4

4-channel amplified loudspeaker controller, 4800 Watts total power. Key Features
  • Audio DSP and amplified loudspeaker controller plus some headroom for Tesira custom processing and hosting of expanders
  • 4 class D channels sharing 1200 watts
  • Power sharing provides up to 75% of total power or 3600 W through any single channel
  • High peak voltage output capability: 237 Vpk
  • Each channel can drive low impedance (2.7, 4, 8, and 16 ohm), 70V, or 100V
  • Each model supports AVB, Dante, and AES67
  • Accurate raised cosine EQ below 160 Hz
  • Group-controlled raised cosine EQ making it attractive for tuning large systems
  • Comprehensive amplifier limiter scheme avoids protective mutes and shutdowns
  • Processor can be sustained through POE – no main power required and no reboots
  • Support for failover-to-analog from networked audio input operation
  • 5-year warranty
  • Compliant with the US Trade Agreement Act (TAA)
  • Biamp Workplace Ready
    Amplifiers
See the product
caseries
  • Cloud

Cloud – CA Series

Cloud offers five models in their CA Series - CA2250, CA2500, CA4250, CA6160, CA8125

The New CA Series of Digital Class-D Multi-Channel Amplifiers from Cloud Electronics, provides a range of simple and robust functions for commercial audio installers and users alike. Following Clouds industry renowned build and performance standards the new CA-Series Multi-Channel Amplifiers are designed specifically for commercial use in Retail, Leisure, Hospitality, Commercial and Industrial applications.

Features:

• Digital Class-D Multi-Channel Amplifier Series

• Energy Efficient Switch Mode Power Supply

• Dedicated Amp Modules per Channel

• 4Ω/8Ω or 70/100v Outputs per/Channel

• Power Sharing Capability

• Rear Dip-Switch Configuration of routing, high-pass filters, and 4Ω/8Ω/70/100v line level

• Auto Power Down (selectable)

• Remote Power Down option

• 2U Lightweight Chassis

• Energy Star Compliant (Application Pending)

    Amplifiers
See the product
Revolution-Acoustics-PoELZ220-1024x361
  • Revolution Acoustics

Revolution Acoustics – RevNet LZ220

Now you can power SSP6 Multiducers using audio from your Dante network. The LZ220 amp is a single cable device designed for use in small or medium zones, with no need for a local power outlet. The amp uses a 60W port on a PoE++ switch (or comparable injector) with the convenience of either low impedance or constant voltage speaker outputs. Now you can power SSP6 Multiducers using audio from your Dante network. The LZ220 amp is a single cable device designed for use in small or medium zones, with no need for a local power outlet. The amp uses a 60W port on a PoE++ switch (or comparable injector) with the convenience of either low impedance or constant voltage speaker outputs. Specifications
  • Configurations
    • 4/8/16 Ω
  • Power Output
    • 2 x 20W
  • Control Options
    • Dante®
  • DSP processes/EQ
    • EQ optimized for SSP6
  • Frequency Response
    • 20 Hz – 20 kHz, 4/8 Ω
  • Connectors
    • Input: Dante (RJ45)
    • Output: Euroblock
  • Regulatory
    • UL 2043 listed, CE, RoHS
  • Weight
    • 0.60 lbs (0.27 kg)
  • Dimensions
    • 1.20” H x 6.70” W x 4.31” D (30.4mm H x 170.1mm W x 109.4mm D)
    Amplifiers
See the product
