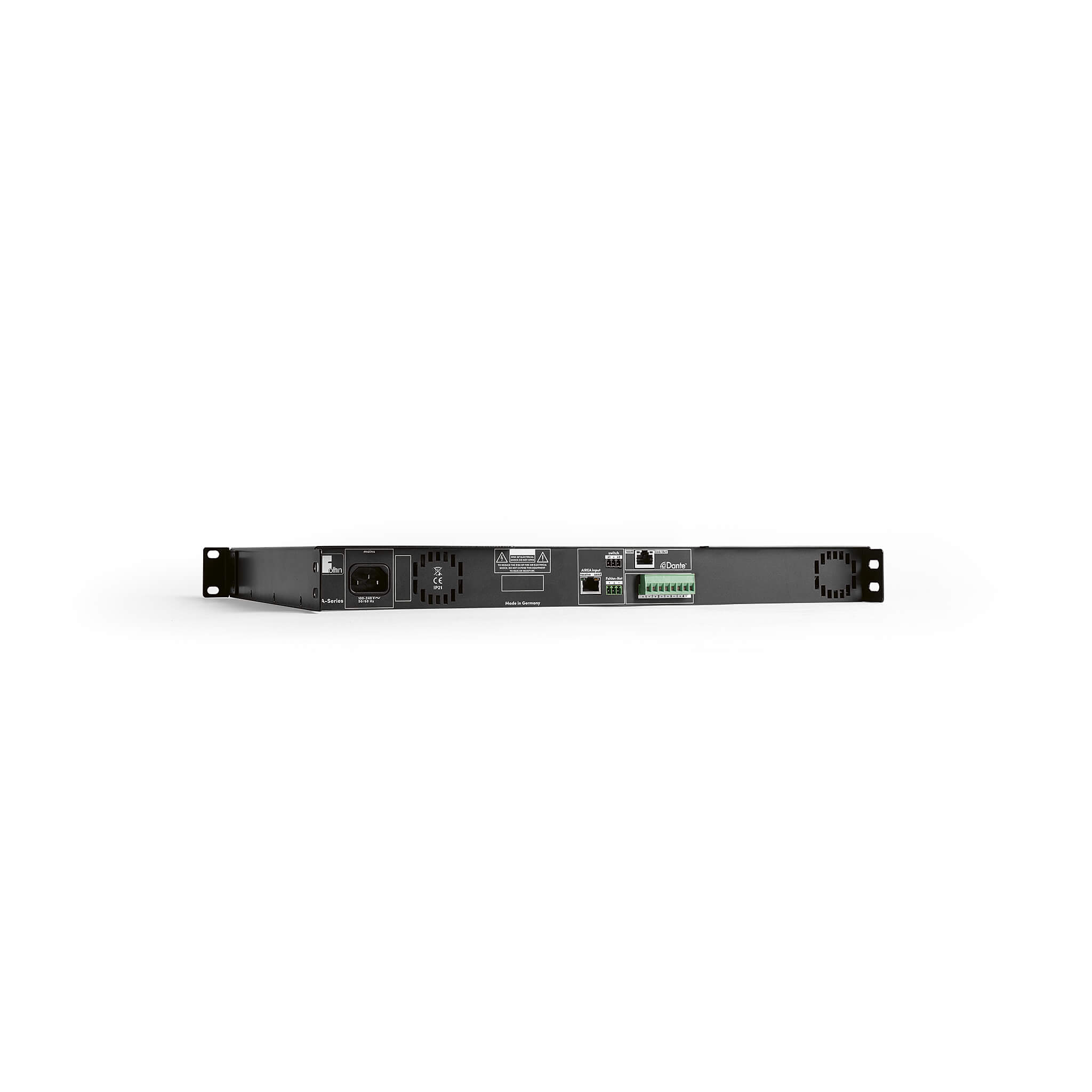

MA-4.600

Amplifiers

More Details

Similar Products

monisms-MNS-AMP30XX-2P
  • MONISMS

MONISMS – MNS-AMP30XXA-2P

The MONISMS Dante Audio Amplifier is a compact power amplifier module that drives small 4-8Ω speakers [Ceiling Speaker, In-wall Speaker, Pendant Speaker Column Speaker etc.] The MONISMS Dante Amplifier Power 30W, 4-8Ω load, This makes the module ideal for powering small areas consisting of only a few low power speakers.
The module's audio input is via an Ethernet audio network, allowing the use of the DANTE/ AES67 audio network protocol.


MNS-AMP30XXA-2P is powered by standard POE+ and has a MAX power of 30 watts. If there is not  POE+  used,  It can used the external 19VDC power supply.
Dante Audio Amplifier  can be mounted on a DIN rail or screwed onto a panel or wall for easy installation in a remote closet near the speaker area.

[Model:MNS-AMP3011A-2P] 1 Channel, 30W Output, [1 Pair Speaker Terminals].
[Model:MNS-AMP3012A-2P] 1 Channel, 2*15W Output, [2 Pairs Speaker Terminals].
[Model:MNS-AMP3022A-2P] 2 Channels, 2*15W Output, [2 Pairs Speaker Terminals].

    Amplifiers
  • Dante Ch: 2x2
  • 16-bit, 24-bit
See the product
fohhn-di-2-2000
  • Fohhn

Fohhn – DI-2.2000

The DI-2.2000 has an output power of 2000 W / 4 ohms per channel, four input- and two output channels. It has a compact 2U / 19“ enclosure and weighs just 9.4 kg. The amplifier works extremely quietly and its fans are not used while idling.  The new DI-Series digital amplifiers have been developed and manufactured in house by Fohhn in Germany. At every stage of development, new intelligent technologies have been implemented. The DSP-controlled amplifiers perform at the highest level and guarantee maximum operational reliability, highest power density and excellent sound. Since 2002, Fohhn has been developing extremely high quality, reliable digital electronics that have been consistently incorporated into the company’s own product lines. The DI-Series amplifiers represent 15 years of know-how in digital electronics, with a great many customer wishes brought to fruition as a result. Developed for mobile sound reinforcement applications and fixed installations, the amplifiers offer all the essential features plus virtually unlimited connectivity with regard to audio signal inputs. Even if you opt right now for an AES/EBU, Dante™, Optocore or Analog option, you are not permanently committed: The optional input interfaces can be changed, as required, customizing your amplifier to suit the relevant digital or analogue network. Extensive DSP input and output processing enables you to intelligently adapt your loudspeaker systems to the particular sound reinforcement situation and room acoustic. All DSP functions can be controlled in real time using FOHHN AUDIO SOFT. The DI-2.2000 has an output power of 2000 W / 4 ohms per channel, four input- and two output channels. It has a compact 2U / 19“ enclosure and weighs just 9.4 kg. The amplifier works extremely quietly and its fans are not used while idling.  Features
  • developed for mobile applications and fixed installations
  • network compatible, remote control, remote monitoring
  • extensive DSP input and output processing
  • input options: AES/EBU (terminal block or XLR), Dante™, Optocore or Analog
  • output options: terminal block or Speakon connectors
  • microprocessor-controlled universal power supply, 100-240 V AC, with Power Correction Factor (PFC) and sensory functions for mains voltage, power consumption and temperature
  • Auto Power Save for fan-free idling, temperature-controlled fans
  • two configurable switching contacts, one fault contact
  • performance presets for all relevant Fohhn loudspeakers
  • up to 10 seconds peak power
    Amplifiers
  • AES67 Enabled
See the product
201982132038
  • BARE

BARE – WD60U

The network audio power amplifier integrates a four-way digital power amplifier module. Signal processing and power amplification are solved on one motherboard, which shortens the signal path and simplifies engineering wiring.

  • Built-in 4 x 600W / 8 Ω ( 800W / 4 Ω) digital power amplifier
  • Professional PC- side control software is easy to use, Ethernet TCP / IP online management, can manage every device in the system at the same time
  • ★ DANTE network audio technology, low latency without interference, without loss of smooth and full sound quality
  • Network dual backup, multiple devices can be connected hand in hand.
  • ★ Automatic or manual network IP configuration, can be named independently for easy identification in the network
  • Automatic protection memory function in case of power failure
Output Power
Output power 8 ohms: 4x600W
Output power 4 ohms: 4x800W
Bridge mode 8 ohms: 2x 1600W
Power amplifier
Maximum efficiency of 90%, two-channel digital power amplifier
Frequency Range
20Hz-20kHz
Signal to noise ratio
100dB / 95dB
Sensitivity
26dB / 1.4V / 32dB
Crosstalk
＞ 90dB
Damping coefficient
＞ 500
Voltage gain
40dB
Total harmonic distortion
＜ 0.1%
Voltage conversion frequency
＞ 70
Conversion time
<1.5
Features
Input: 2 DANTE signal inputs
Protect power
Single channel: short circuit, DC output, low impedance; equipment: ultra low / high voltage, temperature, overload
Operation mode
Stereo, mono, bridged
interface
Input: 2 x RJ45 Output: 4 x XLR (up to)
Unit delay
<1.5ms
sampling
48k
Dimensions (WxHxD) mm
485x90x320mm
Weight (kg)8kg
    Amplifiers
See the product
