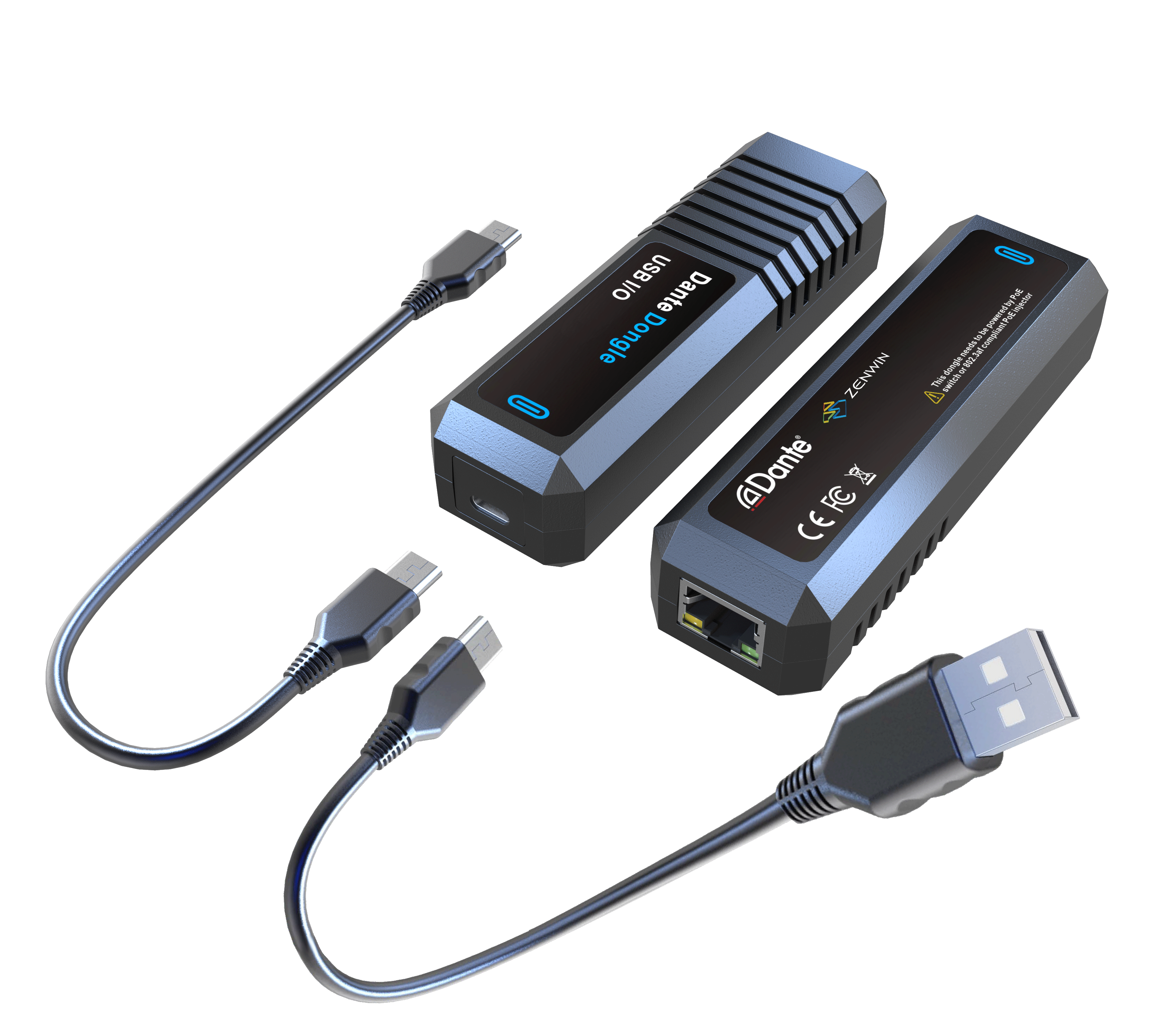

ZW-D1

Audio Embedders & De-Embedders

More Details

Similar Products

williams-sound-wave-cast
  • Williams AV

Williams Sound – WaveCAST Dante

WaveCAST is a Wi-Fi platform designed for pro-audio applications where high-quality sound is required. Hearing assistance can be optimized for hearing loss, music can be optimized for high-fidelity playback, and voice can be set for maximum speech intelligibility. Custom pre-sets can also be established for specific performance applications.

Professional audio inputs on the WaveCAST include 1/4” XLR connectors, phantom power and a line level output jack. In addition to multi-stage gain control inputs, the DSP features include AGC, limiters, high and low pass filter, and adjustable range compressor control.. WaveCAST supports both unicast and multicast network configurations. Up to four WaveCAST systems can be connected to the same Wi-Fi network to provide multiple listening channels -- supporting 45 users in unicast mode or 1500+ users in multicast mode.

The WaveCAST Dante interface is based on the Audinate UXT Ultimo chipset. This chipset supports both AES67 and SMPTE 2110.

    Audio Embedders & De-Embedders
See the product
  • Apantac

OG-DA-SDI-EM-12G-Dante

Model: OG-SDI-EM-12G Description: 12G SDI audio embedder Key Features:
  • OGX/3.0 card-based form factor
  • Dashboard control enabled
  • Supports up to 12G SDI video input and output
  • Embeds up to 8 channels of balanced analog audio inputs
  • Embeds up to 16 channels of balanced/unbalanced AES inputs
  • Built-in pattern generator (color bars)
  • Low power consumption – less than 10 W
  • 5-year limited warranty
Specifications:
  • Video Input: 1 x SDI
  • Audio Input: 8 x balanced analog audio
  • Video Output: SDI with embedded audio
    Audio Embedders & De-Embedders
  • Dante Ch: 16x0
See the product
ZW-D1
  • ZenWin

ZW-D2

Features
  • It can display the current IP and other settings.
  • Gain and other parameters can be set in the software
  • Connect directly to the network using Ethernet cables
  • Dante devices can be controlled in remote mode
  • Dual port backup, PoE power supply, and independent external power supply
  • 4 microphone/line input with phantom power supply, 4 line outputs
  • The entire scalable Dante system has 512 bidirectional audio channels
Technical specifications:
  • Frequency response 20-20kHz
  • Input impedance of 2k ohms (microphone); 68 ohms (line)
  • Output impedance of 100 ohms (microphone); 100 ohms (line)
  • High pass filtering at 80 Hz, 18 dB/octave
  • Sampling rate 48K
  • Power consumption less than 5w
  • Total harmonic distortion<0.01%
Interface:
  • (Input) Balanced audio, quick connect to 4 header ports
  • (Output) Balanced audio, quick connect to 4 header ports
  • 1 independent power interface
  • 2 Dante network interfaces
  • Phantom power supply+48V
  • Power supply requirement+48V DC or IEEE802.3af PoE
  • Dimensions 44mm x 210mm x 166mm
    Audio Embedders & De-Embedders
  • Dante Ch: 0x2
  • 24-bit
See the product
