Yamaha - Rio3224-D2

Yamaha – Rio3224-D2

Product Information

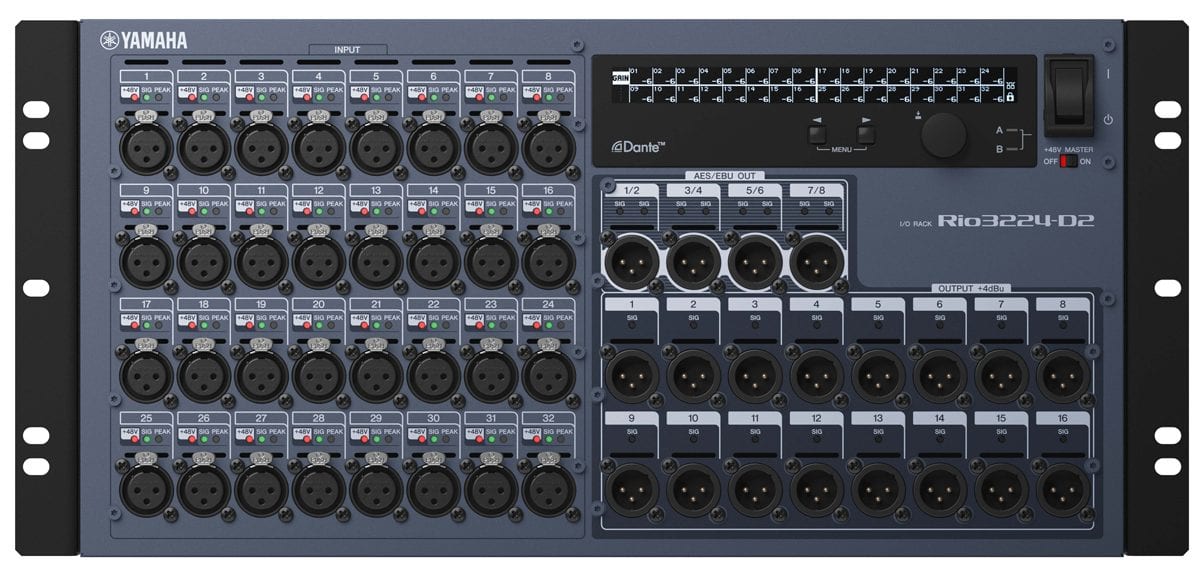

The Rio3224-D2 I/O rack is compatible with Yamaha CL and QL series consoles as well as the RIVAGE PM series. It features 32 analog inputs, 16 analog outputs, and eight digital AES/EBU outputs.

The Rio3224-D2 I/O rack is compatible with Yamaha CL and QL series consoles as well as the RIVAGE PM series. It features 32 analog inputs, 16 analog outputs, and eight digital AES/EBU outputs. The Rio3224-D2 connects directly to Dante digital audio networks, allowing flexible system configuration. Dual power supply units are built in for high reliability, and a character/graphic display offers easy visual confirmation.

32 analog inputs and 16 outputs, and 8 digital outputs.
Redundant connections are supported with primary and secondary connectors. Daisy chain connections are also supported.
Comprehensive display and local control of gain and other parameters.
Dimensions (WxHxD): 480 x 220 x 368mm (18.9″ x 8.7″ x 14.5″)
Net Weight: 13.5 kg (29.8 lbs)

AuviTran – AVBx7

AuviTran Audio ToolBox is a brand new modular audio platform giving access to a large variety of professional audio networked configurations.

With a seven slots 2U-19inch rack unit and several audio interface cards, feel free to build the configuration you need:

DANTE interface
MADI interface
AVB interface
CobraNet interface
EtherSound interface
High quality analog input or output XLR connectors
Analog inputs/outputs Euroblock connectors
High quality mic preamp inputs
AES/EBU inputs/outputs
GPI/GPO interface

AuviTran Audio ToolBox is available in installation mode (Display in front and all connectors in the back) and can be configured as stage-box for live applications (Display, Network and Audio connectors in front, Power supply and GPIO on the back).

Stageboxes

See the product

Allen & Heath

Allen & Heath – iDR-16

This product has reached end of life. Please refer to dLive DM0.The MixRack is the heart of the iLive system, housing the DSP, most of the I/O, networking and control interfaces. The compact iDR0 is just a DSP in a rack, perfect when teamed with a larger MixRack using a digital mic split, for example linked FOH/Monitor systems.

Stageboxes

See the product

Solid State Logic

SSL – SB 8.8

The SB 8.8 is a 2RU unit that offers eight mic/line inputs and eight line level outputs, and features a pair of redundant RJ45 Dante network connections, a pair of network extension connections, GPIO connectivity and redundant PSUs. The SB 8.8 is a 2RU unit that offers eight mic/line inputs and eight line level outputs, and features a pair of redundant RJ45 Dante network connections, a pair of network extension connections, GPIO connectivity and redundant PSUs. It has individual signal present, phantom power and local attention LEDs to provide intuitive front panel feedback. The SB 8.8 features inbuilt limiters and SSL’s innovative AutoPad system that automatically applies a Pad according to gain setting. The AutoPad is applied if the gain is set at a low value that would require a pad to achieve making the entire possible mic gain range seamlessly available at all times. An Audition feature provides an automatic gain reduction when checking mic levels, greatly simplifying pre show mic checks for operators of any skill level.

Stageboxes

See the product
