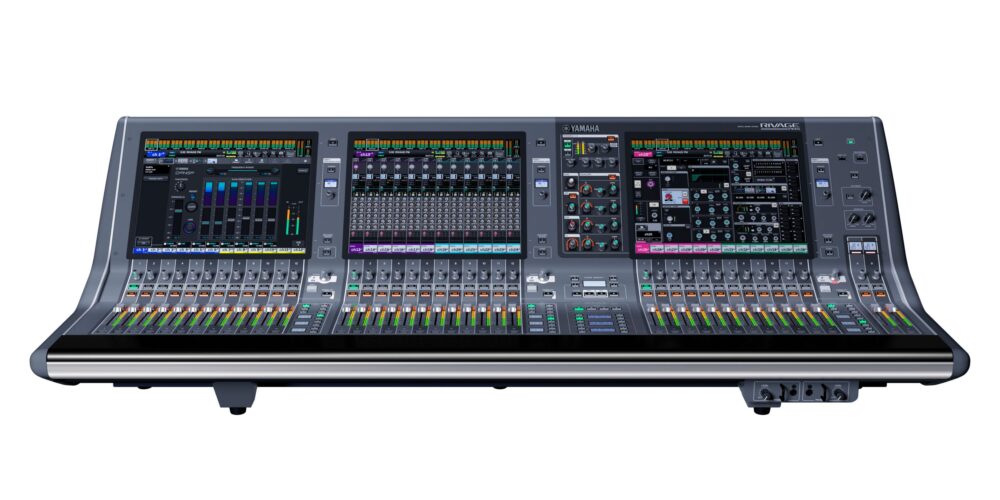

Yamaha – CS-R5

“The CS-R5 control surface is the core component of RIVAGE PM5 system. The console has three touch screens and 12-faders bays for flexible setup and configuration. Touch panels are brought closer to the user, making them easier to reach. The weight is 42 kg which is incredibly light.

Display: 15″ touch panel x 3

Faders: 38 (12+12+12+2)

Custom Fader banks: 6×5 on each bay

User Defined keys: 12×4 banks

User Defined knobs: 3(4×4 banks can be assigned)

Touch and Turn knobs: 3

Analog I/O: 8in/8out

Slot: 2 MY slots

AES/EBU: 4in/4out (with SRC)

Ports: GPI (8in/8out), MIDI In/Out, 5 USB (1 for 2-track recording)

Power supply: Dual redundant power supply built-in

Dimensions (WxHxD): 1,444 x 414 x 643mm (56.9″” x 16.2″” x 25.3″”)

Net Weight: 42 kg (92.6 lbs)”
