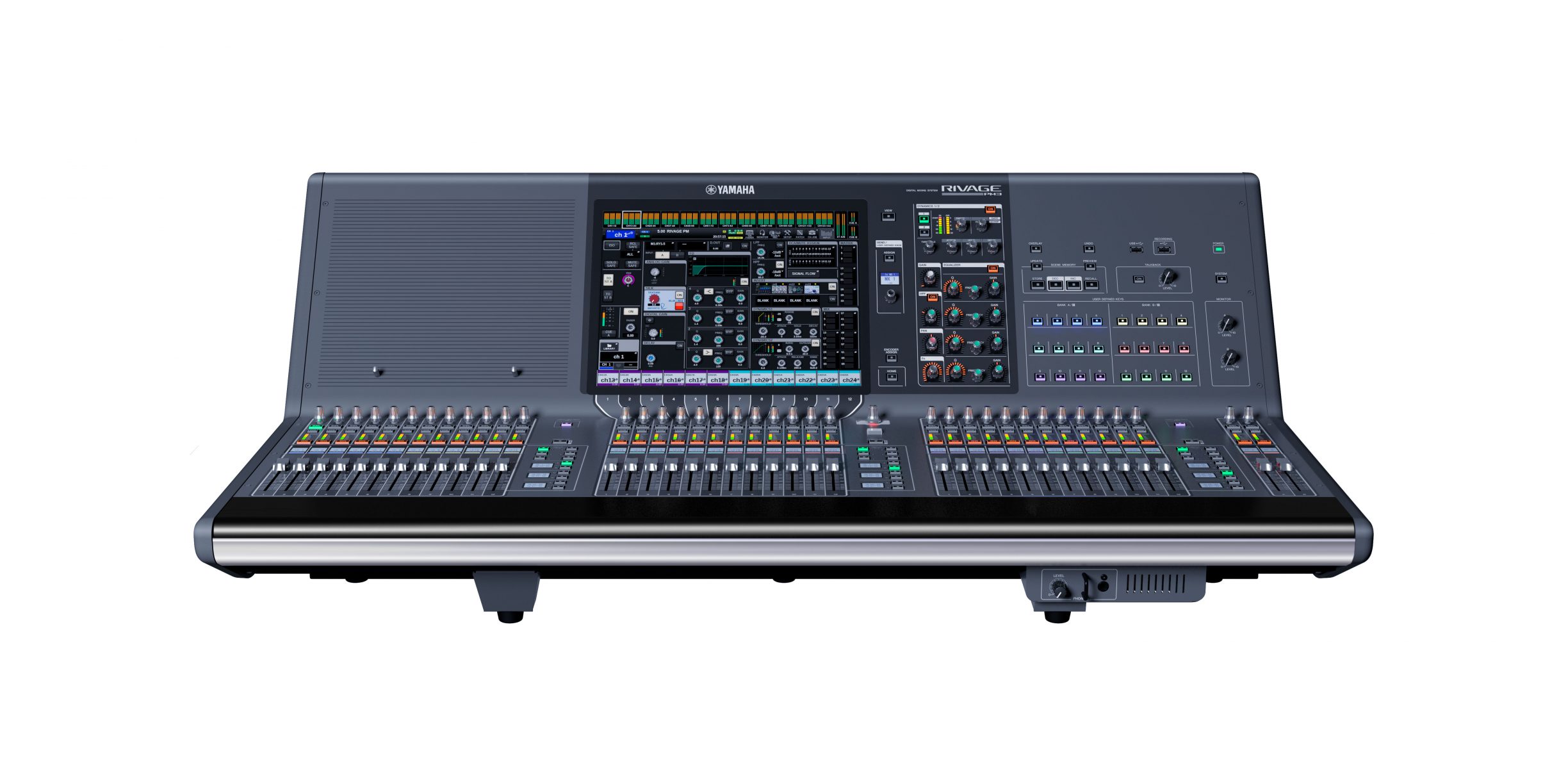

Yamaha – CS-R3

The CS-R3 control surface is the core component of RIVAGE PM3 system. The console is the most compact mixer in RIVAGE PM series regarding its size and weight, though the software and operations are almost the same as other RIVAGE PM series.

Display: 15″ touch panel x 1

Faders: 38 (12+12+12+2)

Custom Fader banks: 6 x 5 on each bay

User Defined keys: 12×4 banks

User Defined knobs: 1(4×4 banks can be assigned)

Touch and Turn knobs: 1

Analog I/O: 8in/8out

Slot: 2 MY slots

Ports: GPI (8in / 8 out), MIDI In/Out, 5 USB (1 for 2-track recording)

Power supply: Dual redundant power supply built-in

Dimensions (WxHxD): 1,145 x 385 x 650mm (45.1″” x 15.2″” x 25.6″”)

Net Weight: 38 kg (83.8 lbs)

More details
