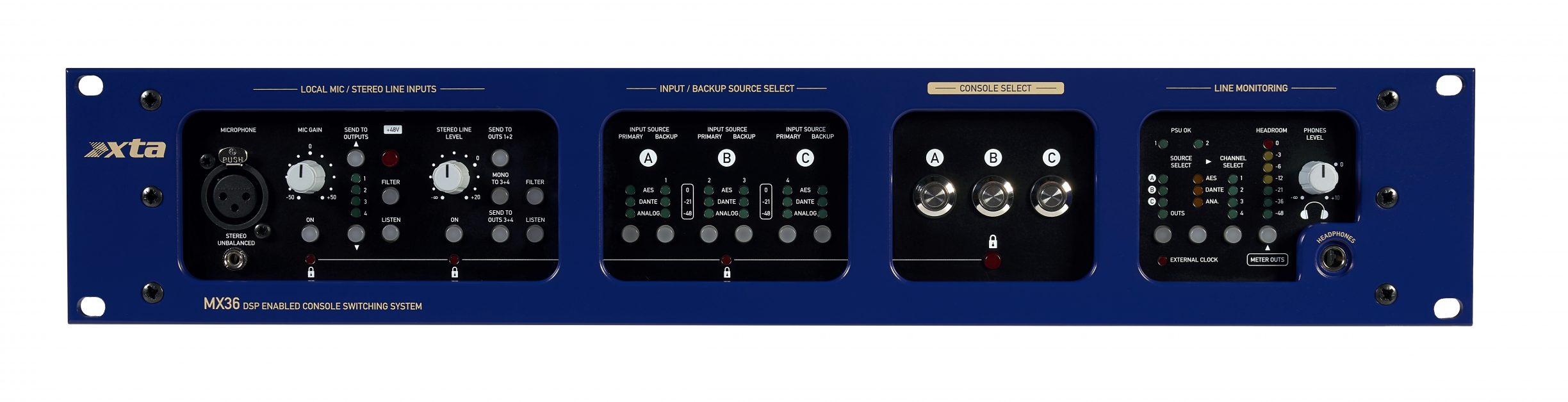

XTA – MX36

The MX36 has been designed to offer a uniquely simple solution to the long-standing problem of routing of multiple mixing consoles outputs to a speaker system / system processor.

Handling 36 inputs in 2U across analogue, AES and Dante networks, these are arranged in sets of four (to typically support Left-Right-Front Fill and Sub feeds from an individual console).  All AES inputs have SRC. There is one set of four outputs, available simultaneously across analogue, AES and Dante networks with Word Clock output sync available on AES.

• Dante Ch: 12x4
• Bit Depth: 24-bit
• Sample Rate: 48kHz, 48kHz, 96kHz, 96kHz
