Product Information

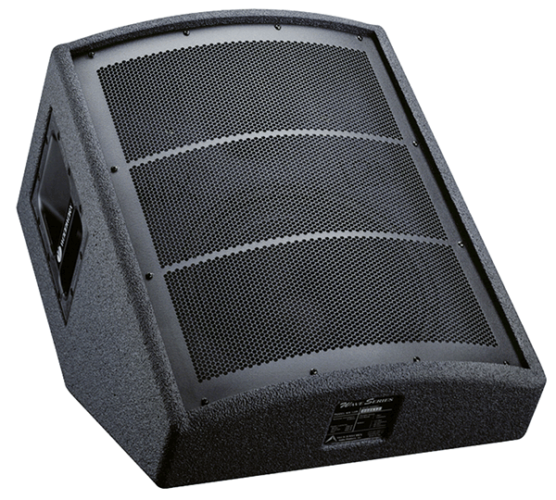

The 12M is a two-way, high efficiency, passive loudspeaker. It is designed as a compact high performance monitor system for the reproduction of speech and music program material.
The 12M is a two-way, high efficiency, passive loudspeaker. It is designed as a compact high performance monitor system for the reproduction of speech and music program material.
The 12M has a one-inch exit compression driver coupled to a 75 X 75 degree wooden waveguide horn reproducing high frequencies, and a twelve-inch cone transducer in a tuned enclosure for the low frequencies. A high quality passive network operates very efficiently, also providing EQ points for a flat frequency response. The sturdy multi-ply plywood enclosure, with a catalyzed polyurethane finish, is designed to withstand the most demanding portable applications. A perforated, powder coated steel grill with a high transmission ratio offers excellent protective properties.
The 12M can be purchased in white, dark gray or unfinished exterior. The monitor configuration has two large recessed handles. The 12M excels in a myriad of diverse applications requiring a compact enclosure with a low profile, and offers extraordinary performance and value.
