Product Information

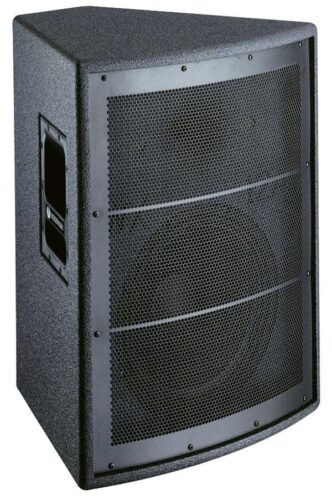

The 12A is a two-way, high efficiency, passive loudspeaker. It is designed as a compact high performance system for the reproduction of speech and music program material.
The 12A is a two-way, high efficiency, passive loudspeaker. It is designed as a compact high performance system for the reproduction of speech and music program material.
The 12A has a one-inch exit compression driver coupled to a 75 X 75 degree wooden waveguide horn reproducing high frequencies, and a twelve-inch cone transducer in a tuned enclosure for the low frequencies. A high quality passive network operates very efficiently, also providing EQ points for a flat frequency response. The sturdy multi-ply plywood enclosure, with a catalyzed polyurethane finish, is designed to withstand the most demanding portable applications. A perforated, powder coated steel grill with a high transmission ratio offers excellent protective properties.
The 12A can be purchased in two versions. The portable configuration has large recessed handles and a stand mount, while the installation version has a standard twelve point flyware system. Both are available in white, black or unfinished exterior. The 12A excels in a myriad of diverse applications requiring a compact trapezoid enclosure, and offers extraordinary performance and value.
