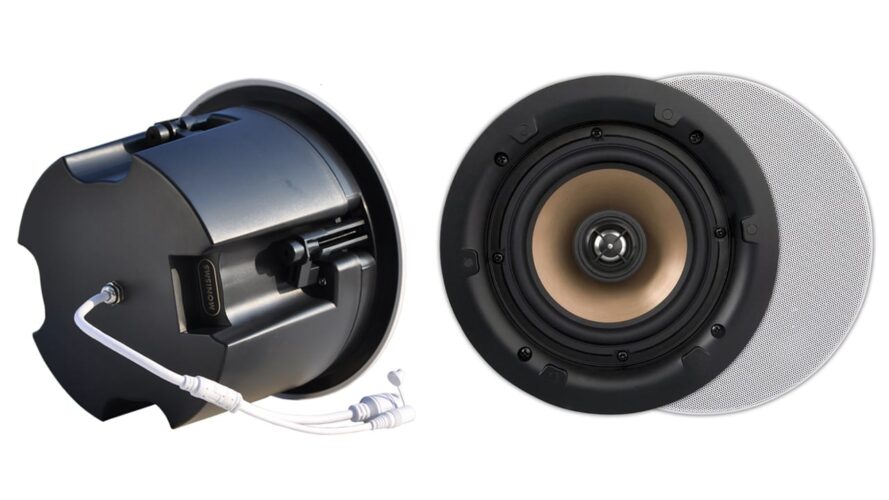

MONISMS – POE DANTE Ceiling Speakers MNS-8A11CS-1P

Speakers

More details

Similar Products

vue-audiotechnik-es-269
  • VUE Audiotechnik

VUE Audiotechnik – es-269

The es-269 compact ACM subwoofer system redefines small subwoofer capabilities by producing high output exceptionally high-quality sound from a very compact dual driver system.  The es-269 compact ACM subwoofer system redefines small subwoofer capabilities by producing high output exceptionally high-quality sound from a very compact dual driver system. With reference quality flat low-end response from 200 to 45 Hz, the es-269 is capable of output levels of systems typically twice the size. The es-269 apples VUE’s patent-pending ACM -Active Compliance Management- technology from the hm-class subwoofers, to a new compact even “mini” subwoofer breaking the normal size ratio to SPL output standards. ACM technology combines both band-pass and vented alignments into a single enclosure. The s-269 places two high performance, 6×9-inch transducers into this configuration, with both woofers sharing a common vented chamber. One woofer’s frontal radiation is direct, while the second woofer’s frontal radiation drives the band-pass chamber. Using sophisticated DSP the two ACM subsections combine acoustically precisely aligning the phase arrivals of the front facing woofer, the common chamber vent, and output of the bandpass chamber vent. The powerful amplifier sends 200W of pure sine wave power (350W “burst”) with a unique optimized signal to each woofer. The combination of 700 watts of burst power produces over 124 dB peak output in a half space environment (ground stacked). The combination of ACM, precision-engineered transducers, and sophisticated electronics allows the s-269 to deliver much higher output throughout its operating bandwidth from a remarkably small enclosure. Features
  • Exceptionally low front profile: Architect-pleasing design with esoteric audiophile quality and professional audio output down to 40 Hz
  • ACM (Active Compliance Management): Patent-pending hybrid design combines both band-pass and vented alignments into a single, compact footprint for more output and definition.
  • Very low distortion with professional sound pressure output
  • Innovative Purpose-designed dual 6×9-inch high output cone transducers
  • Premium birch plywood enclosure with extensive internal bracing and a highly-durable Dura Coat finish.
  • Specially designed for use with the VUEDrive V242 Systems  Engine to provide a new level of sonic accuracy and output
  • Flexible mounting bracket allows fixed installation on the wall or to the ceiling
    Speakers
See the product
VIO-C15-threefourths-left
  • dbTechnologies

dBTechnologies – VIO C15

Upgrading arrayable loudspeaker concept to a brand-new level, dBTechnologies proudly presents VIO C, a complete series of 2-way active line-source speakers for the widest range of venues and applications, from installed PA systems to sound reinforcement for touring.

Designed to create horizontal or vertical line-source arrays and featuring a simple yet rapid rigging system, VIO C offers the most flexible coverage options as well as the powerful and pure acoustic performance that distinguishes all VIO cabinets. The series encompasses 3 enclosures housing premium neodymium components: VIO C12 (1x12”, 3.5” v.c. LF and 1x1.4”exit, 3” v.c. HF), VIO C15 (1x15”, 3.5” v.c. LF and 1x1.4” exit, 3” v.c. HF) and VIO C212 (2x12”, 3” v.c. LF and 1x 1.4”exit, 3” v.c. HF ). The whole series is equipped with latest generation 1600 W RMS Class D Amp module Digipro G4 driving a powerful DSP and allowing each system to deliver impressive SPL (139 dB for VIO C12, 140 dB for VIO C15, and 141 dB for VIO C212).

    Speakers
See the product
FF2470
  • AVE

AVE – Ascolto FF2470

FF2470 performs 24-channel DSP beam filtering to steer the vertical radiation pattern, making column high directive and featuring main propagation lobe less dependent on the frequency.

FF2470 is equipped with 24 high quality, coaxial loudspeakers, each one mounting 4” neodymium woofer + 1’’ dome tweeter, capable to transmit perfect audio.

FF2470 uses 24 x 70 Wrms class-D audio amplifiers with excellent THD+N and high efficiency (90%) and completely protected against thermal over-load.

FF2470 mounts high-reliable, switching power supply (1290 W peak) with universal input (90 – 264 VAC).

FF2470 has analog line input and built-in Dante input both.

FF2470 setup comes easy throughout the AVE Line Array User Control PC software, via RS485 connection.

AVE Line Array User Control includes:
• Beam tilting/broadening control;
• Anti-Reverberation System ARS.
• Delay control;
• 8-biquads user equalizer with high/low shelving and parametric filters;

FF2470 cabinet is aluminum extrusion and it is designed and manufactured in Germany.

    Speakers
See the product
