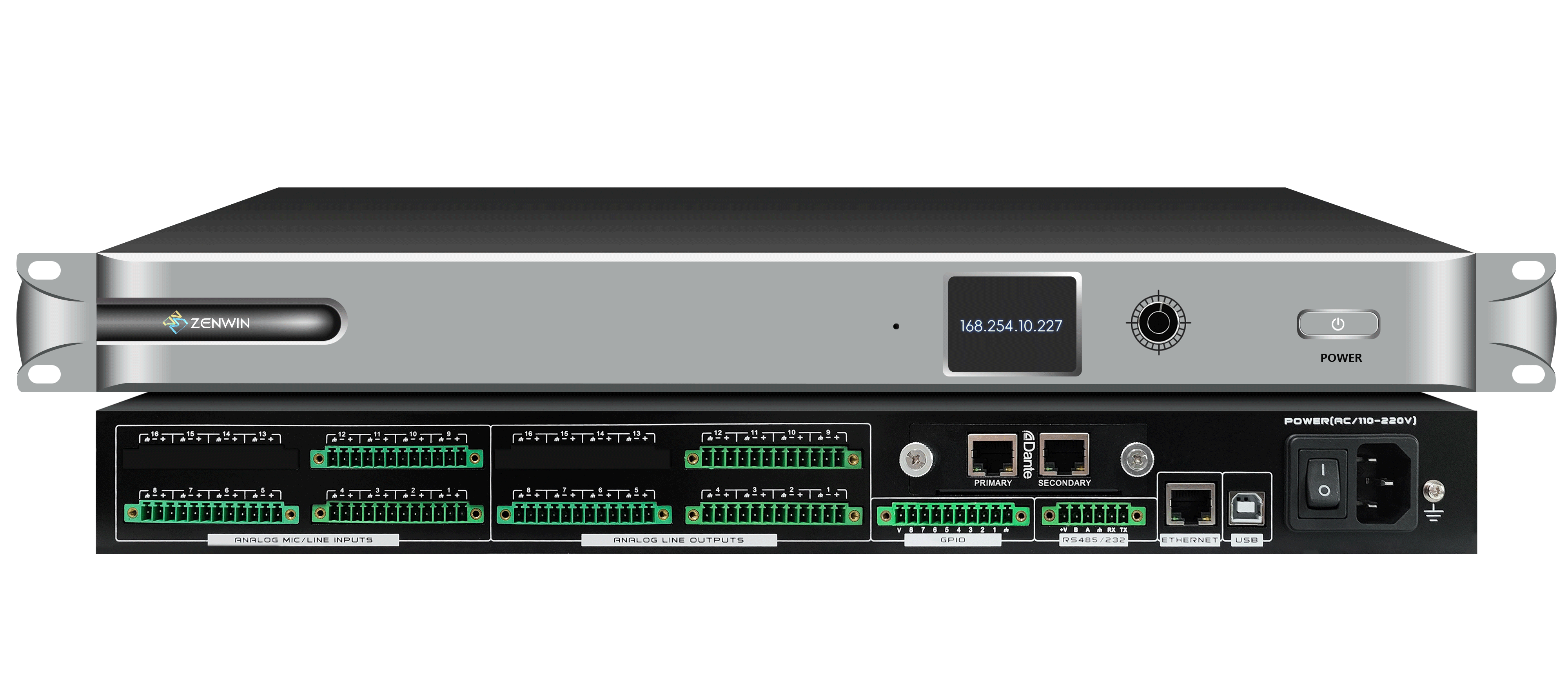

TD-1212D

Digital Matrix Systems

More Details

Similar Products

XTP II CP 4o HD AT 8K

The Extron XTP II CP HD 8K Output boards provide local connectivity for uncompressed 8K HDMI and separate digital or analog stereo audio. These XTP® I/O boards support HDMI 2.1 performance at video resolutions up to 8K/60 at data rates up to 40.1 Gbps. They comply with HDCP 2.3. Independent routing of embedded digital audio signals enables audio breakaway switching. For enhanced system design versatility, output boards provide analog stereo audio outputs. The XTP II CP HD 8K I/O matrix boards deliver a future-proof AV infrastructure that supports convenient growth and upgrade without needing to replace equipment. They are ideal for XTP Systems® that require flexible switching of uncompressed HDMI video and audio signals.
    Digital Matrix Systems
  • 24-bit
  • 48kHz
See the product
TD-0808D
  • ZenWin

TD-0808D

Features:
  • 1.8 mic/line level analog audio input channels and 8 line level analog audio output channels;
  • 8 DANTE inputs, 8 DANTE outputs, using RJ45 network interface;
  • Customize operating software to make configuration changes more flexible and control DSP of different specifications;
  • The built-in USB sound card can be connected to the computer to achieve audio signal transmission, supporting recording and remote meetings
  • The software has built-in DanteController routing settings, which can be completed with just one software.
  • Provide customized user interface for terminal users to achieve centralized control of multiple devices, which can be controlled by third-party devices through UDP, RS232, RS485 of the local machine;
  • Equipped with AFC (feedback suppression), AEC echo cancellation, ANS (noise suppression), AGC (automatic gain), gain sharing threshold, automatic mixing, dodger and other processing modules;
  • Each channel has independent adaptive feedback suppression, which automatically detects feedback points and suppresses them;
  • It has a 20 x 17 matrix; 10. Full function matrix mixing, adjustable input mixing level;
  • 32 sets of presets, each preset working independently;
  • It has permission setting function, which can set super administrator, general user, and guest permissions;
  • 8 GPIO can independently configure input and output, and can be used as an independent ADC when configuring input;
  • The system supports channel, LINK, and grouping functions, providing the required DSP processing for automatic mixing, paging, routing and allocation, microphone/line processing, automatic gain control (AGC), and room linkage functions
  • Support R232&UDP central control, UDP port can be freely set, and control software code can be viewed;
  • The processor chip adopts ADI architecture, with a minimum of 40 bit DSP floating-point operation engine and free configuration software architecture provided;
  • Dante (redundant): 1000 Base-T Ethernet interface, suitable for redundant Dante network audio.
  • The digital network audio processor uses the DANTE network port to connect to the network switch for network digital audio
  • Intelligent automatic camera tracking function;
  • Fire linkage function; 21. Multiple control methods can be managed through web pages, mobile phones, tablets, key panels, touch panels, and other means.
  • The front panel has a high-resolution OLED display screen, which is used to display system status and audio settings, and can call the scene to switch volume levels
    Digital Matrix Systems
  • Dante Ch: 8x8
  • 24-bit
See the product
TX-1212D
  • ZenWin

TX-1212D

Features:
  • The panel is made of advanced materials, reflecting a grand and high-end atmosphere;
  • The host is equipped with an OLED color screen, displaying the device's IP address and firmware version, and the input and output channels display electric frequency signals;
  • Built in USB sound card, can be connected to a computer to achieve audio signal transmission, supports recording and remote meetings;
  • Provide end user interface to achieve centralized control of multiple devices, which can be controlled by third-party devices through local UDP, RS232, RS485;
  • Each channel has independent adaptive feedback suppression, which automatically discovers feedback points and suppresses them. It also has processing modules such as AFC (feedback suppression), AEC echo cancellation, ANS (noise suppression), AGC (automatic gain), gain sharing threshold, and automatic mixing;
  • Featuring a 32x29 matrix, fully functional matrix mixing, with adjustable input mixing levels;
  • 12 balanced microphone/line input, 12 balanced audio output, using Phoenix plug interface;
  • 12 DANTE inputs, 12 DANTE outputs, using RJ45 network interface
  • Customize operating software to make configuration changes more flexible and control DSP of different specifications;
  • 8 GPIO can independently configure input and output, and can be used as an independent ADC when configuring input;
  • 16 sets of presets, each working independently; 12. Support channel shell, LINK, and grouping functions;
  • Fire linkage function;
  • Support R232&UDP central control, UDP port can be freely set, and control software code can be viewed;
  • The processor chip adopts ADI architecture, with a minimum of 40 bit DSP floating-point operation engine and free configuration software architecture provided;
  • Multiple control methods, which can be managed through web pages, mobile phones, tablets, key panels, touch panels, and other means
    Digital Matrix Systems
  • 48kHz
