Digital Matrix Systems

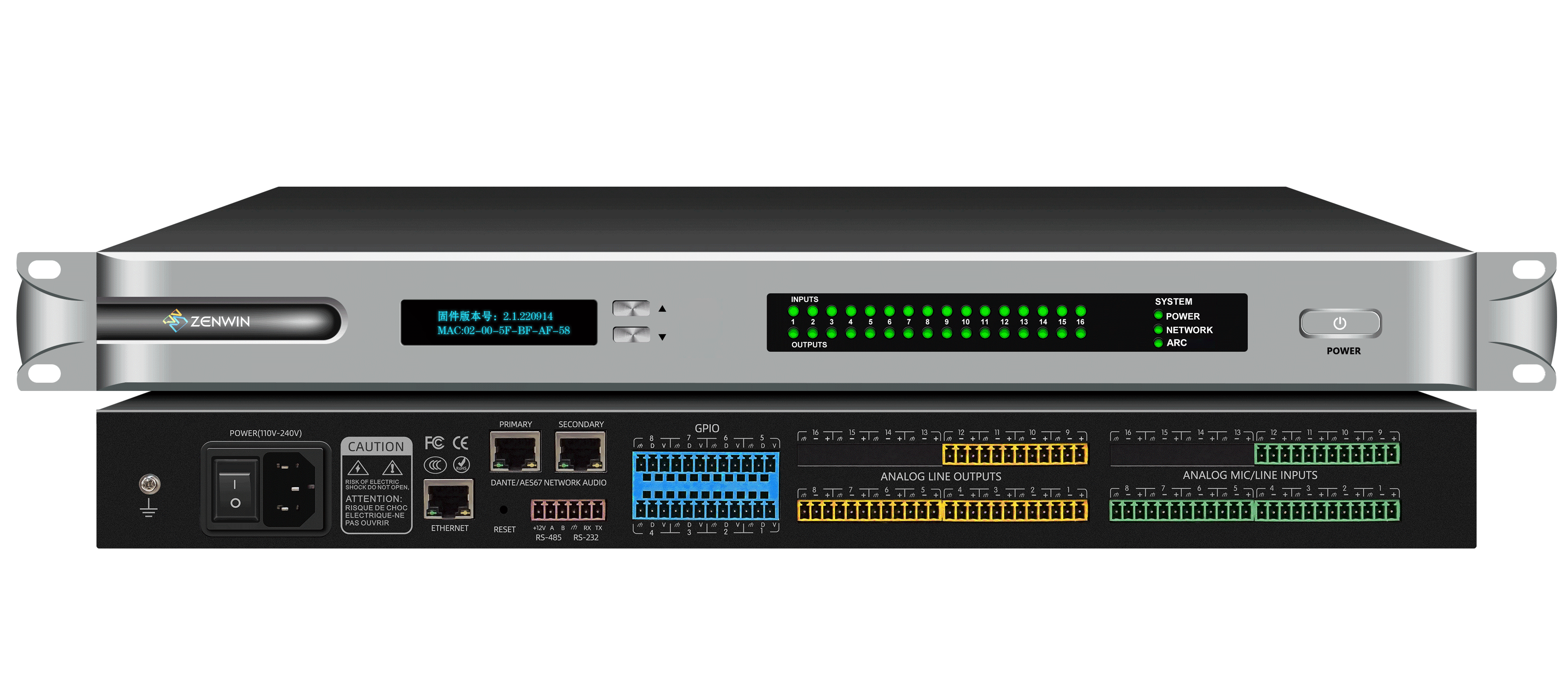

TX-1212D

Features:

• The panel is made of advanced materials, reflecting a grand and high-end atmosphere;
• The host is equipped with an OLED color screen, displaying the device’s IP address and firmware version, and the input and output channels display electric frequency signals;
• Built in USB sound card, can be connected to a computer to achieve audio signal transmission, supports recording and remote meetings;
• Provide end user interface to achieve centralized control of multiple devices, which can be controlled by third-party devices through local UDP, RS232, RS485;
• Each channel has independent adaptive feedback suppression, which automatically discovers feedback points and suppresses them. It also has processing modules such as AFC (feedback suppression), AEC echo cancellation, ANS (noise suppression), AGC (automatic gain), gain sharing threshold, and automatic mixing;
• Featuring a 32×29 matrix, fully functional matrix mixing, with adjustable input mixing levels;
• 12 balanced microphone/line input, 12 balanced audio output, using Phoenix plug interface;
• 12 DANTE inputs, 12 DANTE outputs, using RJ45 network interface
• Customize operating software to make configuration changes more flexible and control DSP of different specifications;
• 8 GPIO can independently configure input and output, and can be used as an independent ADC when configuring input;
• 16 sets of presets, each working independently; 12. Support channel shell, LINK, and grouping functions;
• Fire linkage function;
• Support R232&UDP central control, UDP port can be freely set, and control software code can be viewed;
• The processor chip adopts ADI architecture, with a minimum of 40 bit DSP floating-point operation engine and free configuration software architecture provided;
• Multiple control methods, which can be managed through web pages, mobile phones, tablets, key panels, touch panels, and other means
