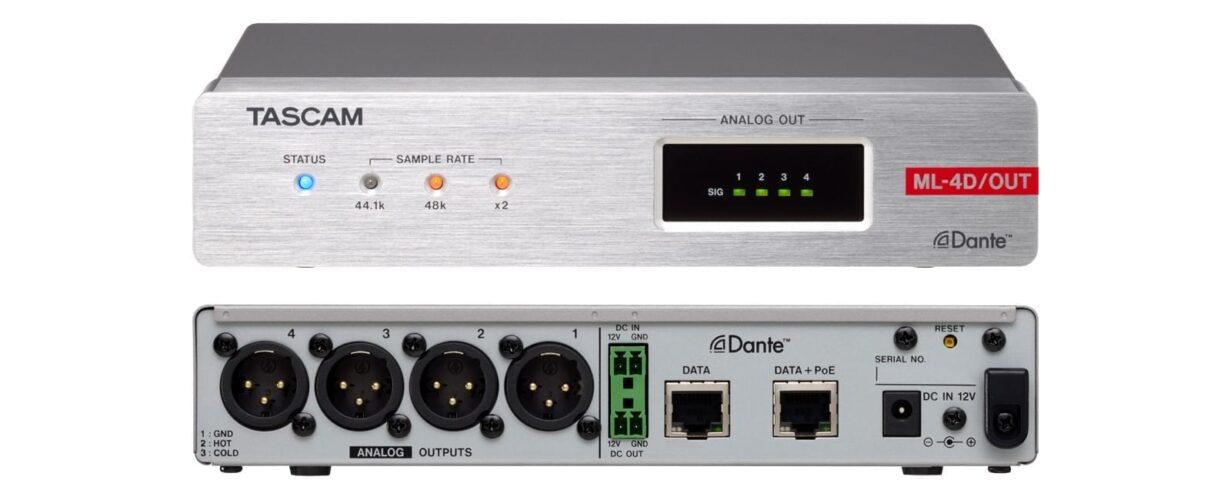

TASCAM – ML-4D/OUT-X

I/O Interfaces

More details

Similar Products

musicrown-df4-4mn
  • Musicrown

Musicrown – DF4.4MN

Musicrown's DF4.4MN is a network digital matrix processor. Musicrown's DF4.4MN is a network digital matrix processor.
  • 32 bit DSP process, 48kHZ sampling rate, 24-bit AD/DA convert.
  • 8X8 core matrix, which includes 4 local input channels, 4 local output channels, 4 Dante input channels and 4 Dante output channels.
  • Dante digital audio 4IN/4OUT Network interface (2xRJ-45), using 24-bit precision, the internal can distribute with the DSP signal’s 4IN/4OUT route.
  • Dante's advanced Network synchronization technology, can provide low latency, low shaking rate and high sampling precision. Can be used in high performance digital media Network audio and video facilities, radio broadcast and sound recording system. It has all advantages of the CobraNet and EtherSound, such as no compress digital audio signal, ensures the good sound quality effect.
  • Each analog input channels with +48V phantom power, MIC/LINE input gain switchable, MIC input sensitivity adjustable.
  • Input including low cut, independent feedback inhibition, 5 band PEQ, noise gate, gain, mute, phase, linkage adjustment and volume adjustment.
  • Output including X-over, 7 band PEQ, Gain, mute, compressor/limiter, phase, delay, linkage adjustment and volume adjustment.
  • All PEQ Gain, bandwidth, frequency continues adjustment. Type can be select by PEAK, H-SHELF, L-SHELF, LOW CUT, HIGH CUT, ALLPASS1, ALLPASS2.
  • All inputs/outputs can do Matrix, and all the input and output channel name can be changed.
  • All the input and output with independent phase curve adjust function, PEQ style choose ALLPASS1 can realize 180º curve adjust, ALLPASS2 can realize 360º curve adjust.
  • All high cut, low-cut filter type can be select by Butterworth, Link witz-Riley, Bessel, slope can be chosen.
  • Noise gate’s threshold, time can be adjustment for inputs, compressor, limiter, ratio, time can be adjustment for outputs.
  • Maximal delay time 680mS for all output channels.
  • Pre setting can copy for every single channel, every channel can do link adjust.
  • Every input and output channel frequency response curve situation can be found when you are in any input and output.
  • Intergrated single generator (pink, white noise and 20-20K sine wave, amplitude adjustable).
  • Front panel has level indicator for input/output, USB port, power supply, network indicator light. Plug-in Dante digital audio port at rear panel, can search for all ID in same segment net when connect PC software
  • One-button connection easy for user’s operations.
  • 21 user presets, device and each preset can be save and recall. Password protection function for high level applications.
  • Unique assembly aluminum side plate card slot design, can assemble two identical machines into one standard 1U machine. Also can assemble its side ear to the standard cabinet.
    I/O Interfaces
See the product
721s-MOD-NAMM-Audinate (1)
  • NTP

NTP Technology – PENTA 721s

The PENTA 721s has 1 large user-configurable slot for one of the seven optional I/O cards including a 128 ch Dante interface. There is a slot for the optional Dual MADI Module labeled Optical I/O and includes as standard a Dante/AES67 Interface using the two Ethernet ports on the rear.

The large slot can be configured with any one of the seven available analog and digital cards, in addition to the digital interfaces provided on the base unit. Check out the features of each of the available Penta I/O cards here. Signal Routing
PENTA 721s include a 512×512 multiplexer, enabling all analog and digital inputs and outputs to be routed in any combination; this enables the unit to also split signals for advanced signal distribution. The multiplexer can be used to establish the static connections of the signal inputs and outputs, and furthermore, it incorporates soft switching with a fade down and fade up the functionality of the signal level. Soft switching ensures that setting or changing a signal path can be made without any audible click or artifact.

    I/O Interfaces
  • Dante Ch: 64x64
  • 24-bit
See the product
TASCAM_-_MM-4D-IN-E
  • TASCAM

TASCAM – MM-4D/IN-E

Built-in DSP 4 mic/line input Dante converter to respond to various needs of contractor market and professional audio scene. Built-in DSP 4 mic/line input Dante converter to respond to various needs of contractor market and professional audio scene. The MM-4D/IN-E is a compact converter that converts 4-channel mic/line input signals into Dante signals. With half the size of a standard 1U rack, the MM-4D/IN-E is suitable for different Dante systems as an exquisite analog output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. MM-4D/IN-E supports up to 96kHz/24bit and uses Euroblock connectors for analog mic/line input.
    I/O Interfaces
  • Dante Ch: 4x4
  • 16-bit, 24-bit
