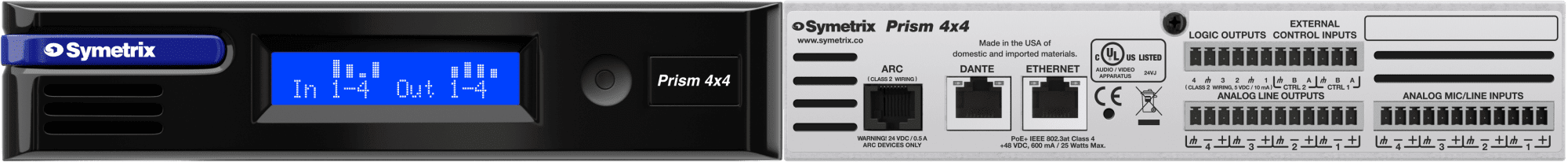

Symetrix – Prism 4×4

DSPs (Digital Signal Processors)

More details

Similar Products

BLU-326-Reflection
  • BSS

BSS – BLU-326DA

Formerly known as BLU-326 The Soundweb London BLU-326DA offers configurable I/O, Dante / AES67 audio, and a high bandwidth, fault tolerant digital audio bus. The BLU-326DA is configurable through HiQnet™ London Architect. A rich palette of logic objects and a “drag and drop” method of configuration provide a simple and familiar design environment. This processor features Dante / AES67 audio with primary and secondary ports for fault tolerance, with control through a separate Ethernet port. As well, the processor includes support for Dante 4.0 firmware for integration with Dante Domain Manager. The BLU-326DA also features a low latency, fault tolerant digital audio bus of 256 channels which uses standard Category 5e cabling giving a distance of 100m between compatible devices. Fiber optic media converters can be used to increase the distance between devices to over 40km. Four card slots which accommodate analog inputs, analog outputs, digital inputs and digital outputs in banks of four facilitate many different device I/O configurations. Analog Input Cards provide software configurable gain in 6dB steps up to +48dB per channel and software selectable Phantom Power per channel. Digital Input Cards and Digital Output Cards process AES/EBU and/or S/PDIF audio and offer a variety of clocking and syncing options. (Further information about the I/O cards can be found on dedicated datasheets) Phantom Power, Sync, Signal Present and Clip information per channel is easily accessible, without the requirement for a PC, from clear front panel LED indication. Device-specific information such as Device Name, Device Type, Firmware Version Number, Time, IP Address and Subnet Mask is available from the front panel display. A bi-directional locate function allows devices to be identified both from and within HiQnet London Architect. 12 Control Inputs and 6 Logic Outputs allow the BLU-326DA to be integrated with GPIO compatible devices. The Soundweb London Interface Kit, comprehensive documentation which details how Soundweb London systems can be integrated with third party control systems, is included within the installation of HiQnet London Architect. The BLU-326DA and the other members of the Soundweb London family provide the building blocks of the perfectly tailored system solution.
    DSPs (Digital Signal Processors)
  • Dante Ch: 64x64
  • 24-bit
See the product
outline-newton-164|outline-newton-164
  • Outline

Outline – Newton 16+4

Outline's Newton is the next generation in audio system control and networking. Newton advances the management of sophisticated audio systems by combining new filter technology, multi-format audio signal routing, multi-format standards conversion and digital signal synchronisation in a single 1RU networkable chassis. Outline's Newton is the next generation in audio system control and networking. Newton advances the management of sophisticated audio systems by combining new filter technology, multi-format audio signal routing, multi-format standards conversion and digital signal synchronisation in a single 1RU networkable chassis. Each Newton processor combines powerful WFIR filters (unique to Outline), clock management and a very high number of input and output channels (216 x 216). Internal synchronous and asynchronous sample rate converters manage all I/O operations and Newton can be synchronised with any one of the 14 choices of clock sources. Mix and Match Matrix I/O routing allows translation and re-distribution of digital audio over multiple standards simultaneously.  Combining power and flexibility with an easy to use control interface, Newton forms the nucleus of next generation audio systems. Multiple Newton devices are easily interconnected to form a network that is scalable to meet all audio applications. Powerful processing features and multiple audio network standards combine to make Newton the ideal control core for any audio system from Touring to Live Broadcast Events and Fixed Installations. While Newton 16 is an all-digital device, Newton 16+4 adds the useful capability of local analog inputs and outputs.  Newton 16+4 adds 4 auxiliary analog inputs and outputs. Each analog input is also provided with additional processing and matrix allowing inputs to be processed, routed and mixed into the main matrix. All three versions of Newton share the same motherboard and it is possible to upgrade from Newton 16 to Newton 16+4.
    DSPs (Digital Signal Processors)
  • Dante Ch: 64x64
  • 48kHz-96kHz
See the product
nexgentec-product-image-Prism-0x0-Combo-2000x206_Front
  • nexgentec

nexgentec – NGTC-0000

The NGTC-0000 is a DanteTM enabled digital signal processor for the nexgentecTM audio distribution solution

KEY FEATURES

• configurable signal processing
• rich palette of processing and logic objects, nexgentec super modules
• DanteTM audio, 64 x 64 audio
• PoE+ powered

    DSPs (Digital Signal Processors)
See the product
