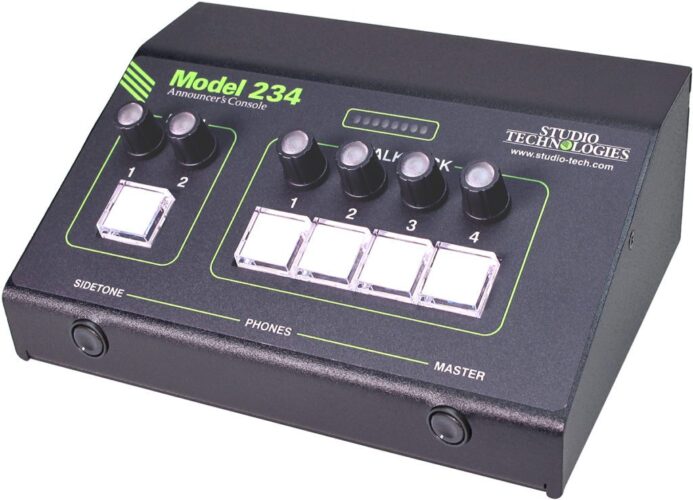

Studio Technologies – Model 234 Announcer’s Console

Commentary Systems

More details

Similar Products

adx2400m-oblique-700
  • Lance Design

Lance Design – ADX-2400M

The ADX-2400M MADI Network Interface accepts a MADI stream as its local inputs, and outputs a MADI stream as its local outputs, making integration with the truck's or studio's audio system fast and simple.

The 24 local inputs and outputs use 24 of the 64 available MADI channels, and may be configured to use channels 1-24 or 33-56. All other MADI channels pass through the unit. This allows two ADX-2400Ms to be used in tandem on a single MADI stream.

Both optical and coax MADI inputs and outputs are available. The optical I/O uses a standard SFP module, so it may be configured for multi-mode or single-mode fiber, with wavelength and power parameters of the customer's choice.

These units may serve as the 'truck end' of ADX networked announce systems, or with other 2400s for transmission or distribution, or to provide a network interface for other vendors' networked products.

    Commentary Systems
See the product
m232_ta_1200-1024x739|m232_ta_1200-1024x711
  • Studio Technologies

Studio Technologies – Model 232 Announcer’s Console

The Model 232 Announcer's Console is designed for on-air and live-event use by announcers and commentators who will benefit from high-performance microphone and headphone audio resources. Supports Dante audio-over-Etherent media networking technology and includes an extensive set of features. The compact tabletop unit uses the STcontroller software application for configuration. Three pushbutton switches allow the user to control three audio output channels: one main and two talkback. Two gigabit (GbE) Ethernet interfaces allow redundant Dante operation. Powered using a Power-over-Ethernet (PoE) connection or an external source of 12 Vdc.

    Commentary Systems
See the product
lance-design-adx-2400D_800px
  • Lance Design

Lance Design – ADX-2400D

The ADX-2400D is the AES version of the ADX system head-end unit. It provides the network interface for 24 channels of AES digital audio in each direction (inputs and outputs). This unit may be used as the 'truck end' of an announce booth system using ADX-120s and ADX-140s, may be used with other ADX-2400s to create a networked transmission system, or may be used stand-alone as a high-quality, compact 24-channel delay unit.

In the Announce Booth mode each ADX-2400D supports up to four remote devices, either the ADX-120s or ADX-140s in any combination.  Multiple ADX-2400s (analog and/or AES) may be operated on the same network to expand system capabilities to meet any required system configuration.
