Commentary Systems

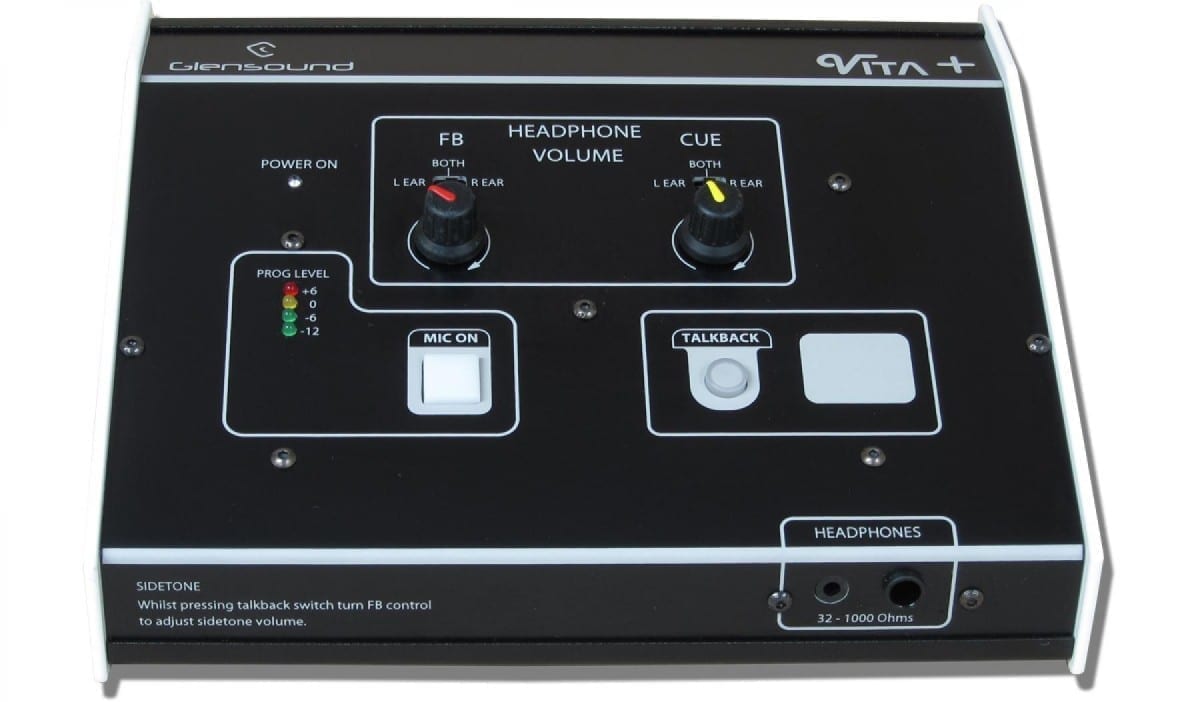

Glensound – VITA PLUS

The VITA PLUS is a very powerful Dante network audio interface, in a traditional desktop style. It has a mic/line input and headphone monitoring connection for a single user, and contains two 4 wire circuits. One of these is typically used as an on air channel, and the other as a talkback channel.

The VITA PLUS is a very powerful Dante network audio interface, in a traditional desktop style. It has a mic/line input and headphone monitoring connection for a single user, and contains two 4 wire circuits. One of these is typically used as an on air channel, and the other as a talkback channel.

The high quality microphone input, with the Glensound Referee compressor, makes the Vita Plus suitable for on air commentary use, perfect for a small OB or in an off-tube booth .

The flexibility of the talk button configurations, means that the Vita Plus can also be used as a talkback unit as part of a Dante network.

The Vita Plus can connect to any Dante network, or to other audio equipment via Glensound’s own Dante interface units.

Features

  • Complete commentary functionality and 4W in a desktop format
  • Dante AoIP network
  • Input is switchable from line, mic, or mic + 48v phantom power
  • Low noise, high headroom mic amplifier
  • 48K 24bit A/D converter
  • Headphone output on 6.35mm jack socket
  • Two outputs: one for main programme audio, one for talk back circuit, are both on the single RJ45/CAT5 network audio connection
  • Independently configurable buttons for both outputs using Config+: latching, momentary or lazy
  • Two inputs for headphone monitoring from network audio connection, both with adjustable level
  • Headphone inputs have left/both/right switching
  • Glensound intelligent headphone amp provides correct output levels into low or high impedance headphones and can also correctly drive mono earpieces with mono jack plugs.
  • Powered via PoE, or internal switch mode PSU
