Commentary Systems

CTP – B-D2020

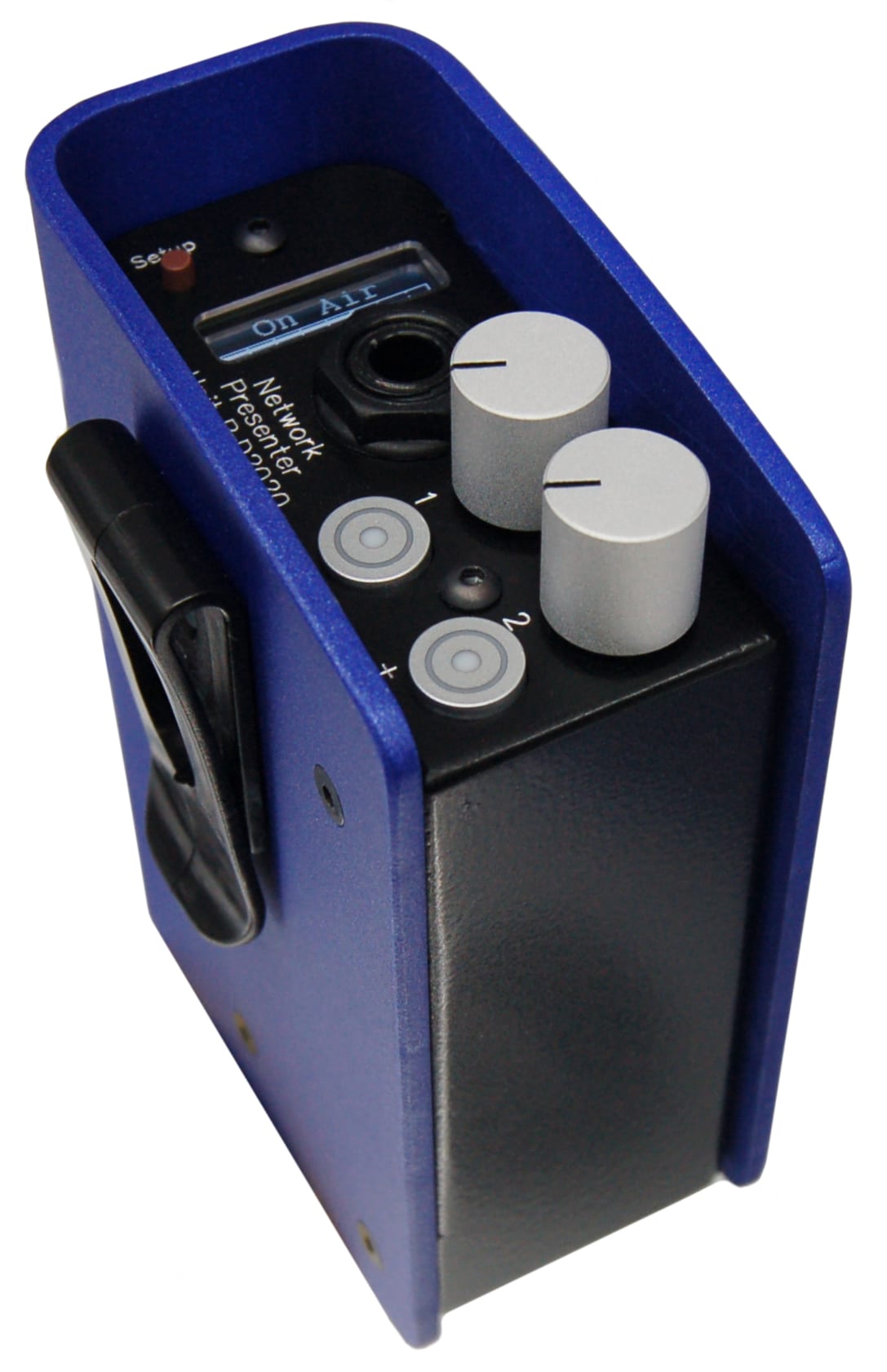

The B-D2020 is a compact, lightweight network presenter beltpack unit designed to fulfill all audio requirements for situations such as pitchside reporting or presenting.

The unit generates a programme sound microphone output with noiseless diversion of that output to two discreet talkback outputs plus a combined feed.

There are two volume controls, each volume control may be fed with stereo or mono audio.

Various talkback key functions, microphone gain, limiter, phantom power and sidetone are all conveniently adjusted using the OLED display. The display also shows on-air or talk status and meters the microphone audio for confidence.

The unit may be operated using Power over Ethernet or via a 12 volt DC adaptor.

Microphone levels may be adjusted in 1dB steps from 0 to +66dB with switchable 48 volt phantom power.
