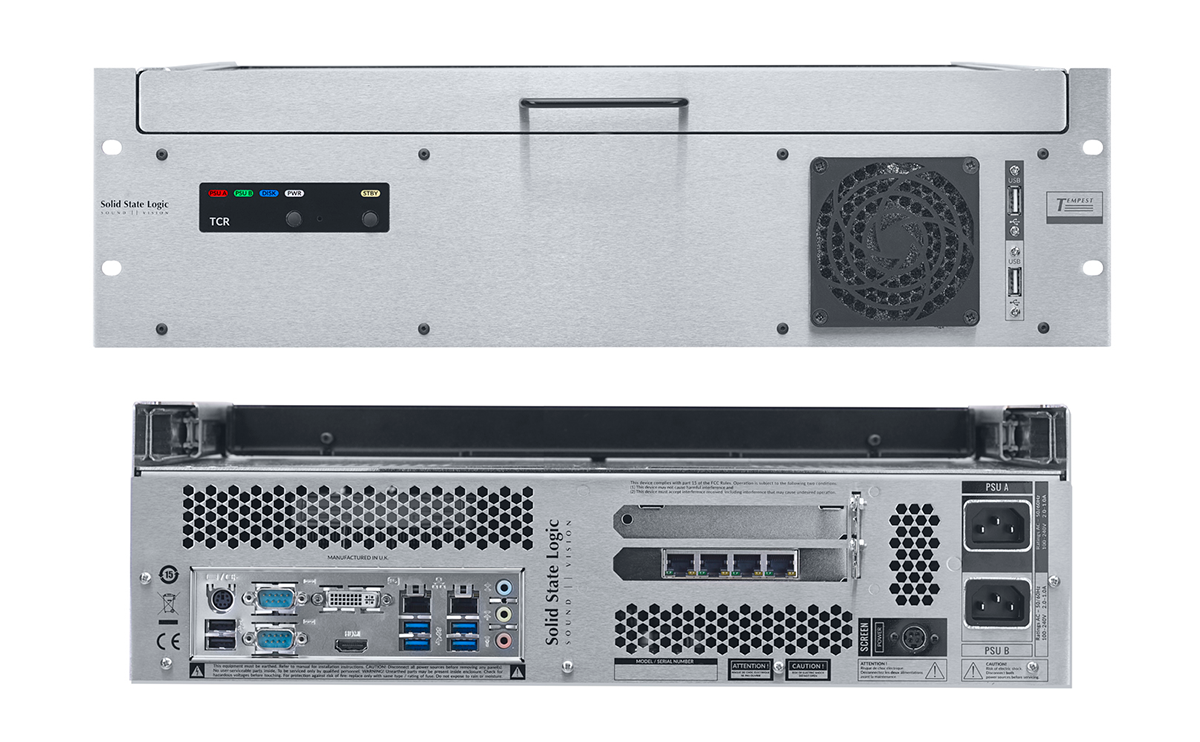

SSL – System T Tempest Control Rack

Mixers

More details

Similar Products

stacks-image-bcc6051-1200x112-1
  • Nixer

Nixer – RL192

A 1U 19inch rack mounted AoIP monitoring and mixing unit.

4 models are available the RL64, RL128, RL192 and RL256 and each unit can be configured at time of purchase to be Dante or Ravenna

RL Series units allows two modes of operation a mixing mode which can mix up to 256 channels at 48kHz (128 channels at 96kHz) plus microphone input (via headphone connector) and AES input to create a 259 into 2 mixer. Alternatively, it can be set into a simple Listen mode where touching a channel instantly routes to the LR output and cancels any previous selection.

The outputs of the LR bus are presented to the user via the inbuilt 4mm x 9mm full range speakers or via the 3.5mm headphone jack. The speakers are automatically muted when a headphone jack is inserted. Simultaneous outputs are also available in the form of the stereo balanced line outputs and AES output accessed via XLR connectors on the rear of the RL Series Unit. The mix output is also routed to the AoIP output.

The RL Series units are operated and controlled via the large letterbox 6.6” diagonal (168mm) 1440 x 240 24-bit colour LCD and capacitive touch panel.

A simple and elegant menu system has been designed to be intuitive to navigate allowing the user to access all the features of the RL Series unit very quickly.

The high-resolution screen is easy to read presenting comprehensive metering, routing and status information to the user.

Firmware updates of the RL Series unit are achieved via a dedicated USB micro AB connector on the front panel. There is also a dedicated 3.5mm jack socket for the headphone output

Stacks Image 30

On the rear of the RL Series unit there are 4x Primary and Secondary ports for up to 4x AoIP inputs. 2x balanced line outputs on 3 pin male XLRs and AES output also on 3 pin male XLR. These outputs can be configured to follow the main volume settings of the speakers/headphones or they can also be set to follow the main Mute control.

Additionally, there is an AES input via 3 pin female XLR connector

The RL Series unit can be powered via either of the two 2.5mm DC input connectors requiring 24V @ 2A. These inputs also have a screw lock to prevent accidental unplugging. Using both inputs provides redundancy.

    Mixers
  • Dante Ch: 192x192
  • 16-bit, 24-bit, 32-bit
See the product
calrec-aretmis-shine-beam-light_1200px
  • Calrec

Calrec – Artemis Beam

The twin sister of Apollo in Greek mythology, Artemis is based on the award-winning Apollo platform. Available in three sizes and utilising the same Bluefin2 and Hydra2 technologies, Artemis has an enormous routing and processing capacity.  The twin sister of Apollo in Greek mythology, Artemis is based on the award-winning Apollo platform. Available in three sizes and utilising the same Bluefin2 and Hydra2 technologies, Artemis has an enormous routing and processing capacity. Bluefin2 gives Artemis Beam 340 channel processing paths, with up to 128 program busses, 64 IFB/Track outputs and 32 auxiliaries. Artemis’ integrated router means all I/O functions can be performed by Hydra2, using the same high capacity cross-point router technology and a variety of I/O units.
    Mixers
  • Dante Ch: 64x64
  • 24-bit
See the product
lawo-mc2-56_600px
  • LAWO

Lawo – mc²56

This 3rd generation of the mc² 56 represents the next step in the evolution of a console that has dominated the audio production industry with hundreds of units in operation around the world. Designed to deliver unrivaled innovation, it provides not just pure and simple access to ultimate performance – it’s a global standard redefined. FUTURISTIC - FLEXIBLE - FORMIDABLE. This 3rd generation of the mc² 56 represents the next step in the evolution of a console that has dominated the audio production industry with hundreds of units in operation around the world. Designed to deliver unrivaled innovation, it provides not just pure and simple access to ultimate performance – it’s a global standard redefined. Our newest version of the mc² 56 incorporates several groundbreaking features from Lawo’s mc2 96 flagship console without sacrificing the identity of its predecessors – retaining virtues like compact size, flexibility and versatile design for applications ranging from broadcast trucks and studios to live performance and recording. For optimized performance within IP video production environments, there is full support for native SMPTE 2110, AES67/ RAVENNA and DANTE, while Lawo’s revolutionary LiveView™ feature enables thumbnail previews of video streams directly in the fader labeling displays. Best-in-class performance in networking applications has been taken to the next level with the addition of unique capabilities such as IP-Share™ gain compensation and DSCA™ Dynamic Surface to Core Allocation. All of this and more, simply reinforces this console’s place as the number one choice within complex IP-based production infrastructures. Push the envelope and take your audio production capabilities even further than you imagined with the new mc² 56. Now more than ever, the global standard in audio production consoles.
    Mixers
See the product
