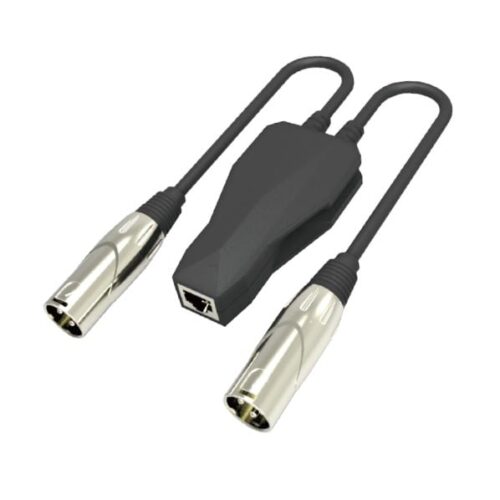

Soundking – CXA036

I/O Interfaces

More details

Similar Products

ies-5400-front-top-angle
  • AtlasIED

AtlasIED – IED5400ACS

The 5400ACS is an integrated announcement controller with built-in message server capability that is the core of an EN 54-16 compliance life/safety emergency notification system. These units contain all of the intelligence to manage an entire system of emergency communication stations, digital zone manager amplifier units, and other network peripherals. The 5400ACS manages the system in compliance with the EN 54-16 standard, performing overall supervision and reporting of equipment faults plus any ongoing alarm conditions.  The 5400ACS is capable of interfacing with GLOBALCOM 1100ACS/1200ACS units when additional non-emergency features or additional peripherals are required in an installation.Announcement Management Features
  • Can handle dynamic requests for live pages, delayed pages, Digital Record and Playback (DRP), prerecorded messages (simple and assembled), and mute actions.
  • Internal message server capable of recording 2 channels of delayed messages while providing 2 channels of message playback; all occur simultaneously in addition to as many live pages that can be supported by Dante on the network.
  • Manages disabled and delayed zones.
  • Network audio using Dante (High Quality Audio over Ethernet).
  • Announcements can be initiated by contact closures, from a microphone paging station, from the 5400ACS front panel, or by a network command from higher level management software such asAtlasIED Director.
  • Messages can be played based on schedules.
  • Fully monitors and supervises all components of the system.
  • Fully customizable and programmable via software tools.
Device Interface/Management Features
  • Provides 8 optically isolated logic inputs for external interfaces including supervision of logic links.
  • Provides 4 Form C relay outputs for external interfaces.
  • Multiple controllers can be used together to create larger systems.
  • Provides two analog audio inputs for such sources as background music or fire panel audio.
  • Provides two analog audio outputs for audio monitor or zone outputs.
  • Manages up to 50 digital microphone stations (5416CS H/G or 5450CS H/G Series) on one 5400ACS.
  • Supervises all associated devices and provides fault status information.
  • Overall Form C fault relay provided.
  • Works seamlessly withAtlasIED5400LL Lifeline Controllers providing hot-standby and individual fail-over support.
  • Interfacing DZMs can allow management for up to 1024 individual zones.(5404DZM/5432DZM).
  • Provides redundant ethernet ports.
Message Server Features
  • Stores up to 250 hours of pre-recorded .wav message files.
  • Delayed messages limited only by disk space.
  • Capable of 2 playback and 2 recording operations simultaneously.
    I/O Interfaces
See the product
auvitran-AVDT-BOB-ADX8IO|auvitran-AVDT-BOB-ADX8IO
  • Auvitran

Auvitran – AVDT-BOB-ADX8IO

AVDT-BOB-ADX8IO is a compact Dante analog break-out box with embedded Digital Signal Processing. It provides two state-of-the-art analog microphone preamplifiers inputs and two analog line outputs on XLR connectors, plus stereo AES/EBU input/outputs and four GPIOs on DB25 connector. AVDT-BOB-ADX8IO is a compact Dante analog break-out box with embedded Digital Signal Processing. It provides two state-of-the-art analog microphone preamplifiers inputs and two analog line outputs on XLR connectors, plus stereo AES/EBU input/outputs and four GPIOs on DB25 connector. Embedded DSP allows for full mixing of the four Dante inputs/outputs, the two analog inputs/outputs and the four AES/EBU inputs/outputs plus effects like parametric equalization, dynamic compression and fine pitch digital gain adjustment. Four analog/digital GPIOs allows for hardware remote control of the device (e.g. volume control via potentiometer). Three Gigabit switched ports allows for daisy-chained/star connection without any bandwidth bottleneck. Neutrik port provides Power-Over-Ethernet for direct power supply. SFP ports accept multi-mode or single-mode fibers, allowing to link devices on distances up to 20km. The embedded dual core processor runs a Web 2.0 server with user-friendly interface for multiplatform remote control over IP (iOS, Android, Windows, Mac OS, Linux). Accessories like long-ears kit allows for mounting of up to three AVDT-BOB on 1U 19” rack.
    I/O Interfaces
  • Dante Ch: 4x4
  • 24-bit
See the product
just-add-power-vbs-hdip-767dss
  • Just Add Power

Just Add Power – VBS-HDIP-767DSS

The Just Add Power 3G+ Dante® Sound System Transmitter adds compatibility with Dante® and AES67 audio networks to the UltraHD over IP system.

Input up to 8 channels into the Dante® network. Extract up to 8 channels from the Dante® network, embed onto the HD over IP signal, and distribute across the Just Add Power network. Mix-and-match! The 3G+ Dante® Sound System Transmitter is fully compatible with all 2GΩ/3G and 3G devices. Not just for Dante®. AES67 compatibility for interoperability with other leading audio-over-IP technologies.
