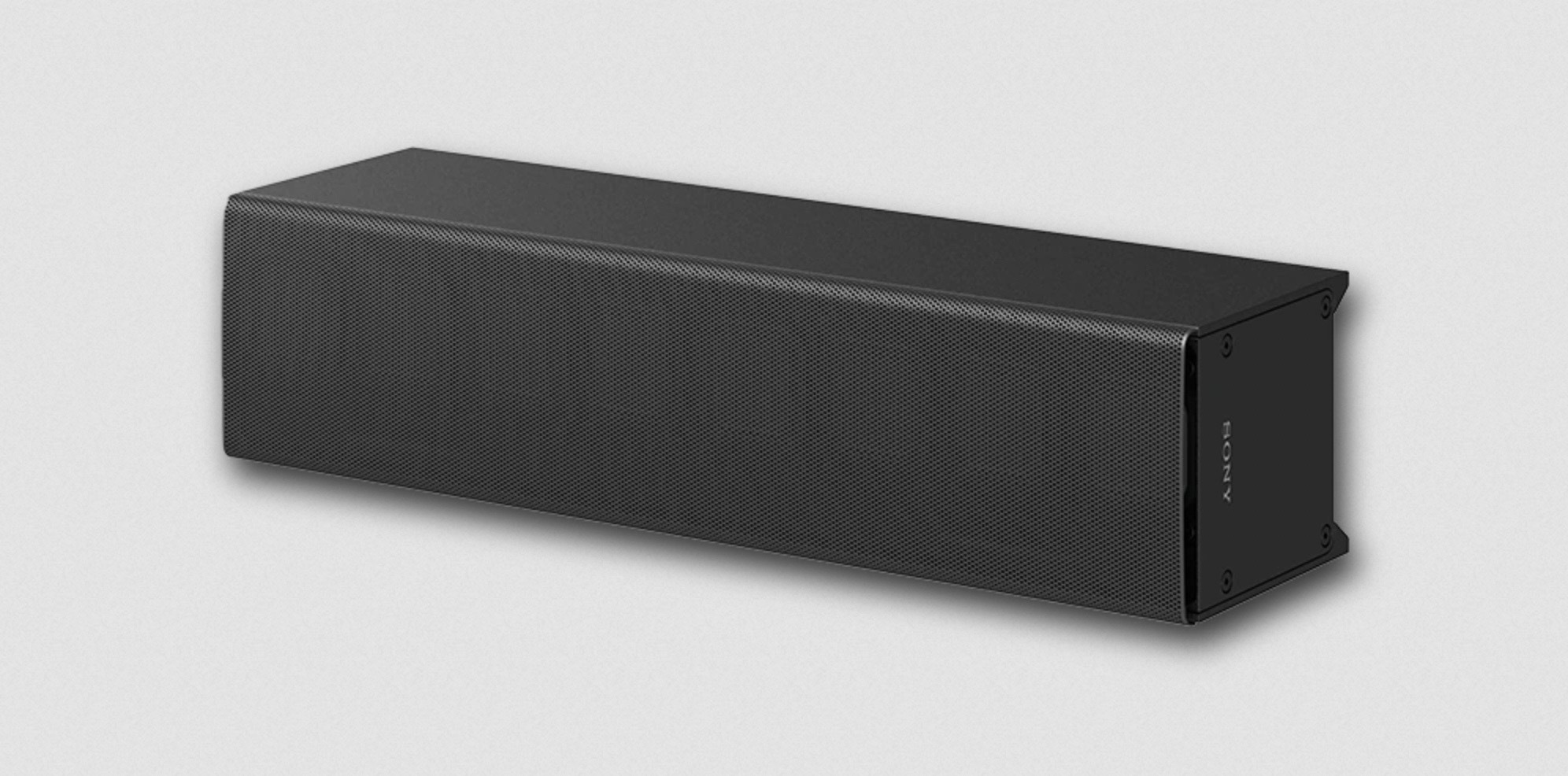

The SLS-1A features eight full-range driver units mounted in a line array configuration, supplemented by a powerful integrated multi-channel amplification system. Sound is delivered with remarkable richness, accuracy and presence in any listening environment.
Dante Network Transmission
Dante is used for audio transmission to achieve digital and network transmission management. Dante is based on layer 3 IP network technology and adopts Zeroconf protocol to simplify the network operation mode. It can realize long-distance transmission of two-way high-quality big data and perfect synchronous playback with low delay. The device is plug and play, system construction has no topology limitation, installation and configuration is convenient, and wiring is simple and easy.
PoE power supply
Ethernet power supply and audio and data transmission are integrated, simplifying cable layout and meeting Ethernet engineering specifications. PoE network cabling uses 50V dc power supply for bearing Ethernet cables, without restrictions on high-voltage ac cabling, and better meets site safety and fire prevention specifications.
Technical parameters：
Speaker model: CS-4D
Unit configuration: 4"(100mm) Speaker unit
Frequency range: 125Hz-20kHz
Rated power: 30W
Sound pressure level: 108dB
Sensitivity: 91dB
Coverage Angle: 100°×100°
DSP processing: 1 DSP, with gain, equalization, voltage limit, noise gate, mute control adjustment
Connection mode: RJ45 interface
Product size (mm) : 204×185 (Ф×H)
Opening size (mm) : Ф169
The CP124 beam forming array module with internal passive crossovers between LF and HF way. It is intended as basic beamforming column loudspeaker for the CADAC product range. The combination of mapping optimization and direct array definition is the most comprehensive and powerful loudspeaker management system on the market. The CP124 is a self-powered 2-way high-end beam forming array loudspeaker, which features 12 x 4" wideband woofers and 12 passive crossovers, for 36 x 1" dome tweeters. Due to the fully integrated connection hardware, the column can be stacked to realize larger systems with up to 14 meters of acoustic length. Internally, one CP124 has 12 amplifier and 12 DSP channels. The CADAC DSP-core module platform is integrated with the amplifier section into the loudspeaker. Cabinets are electrically connected by the CADAC C-Link audio and command interface. The CCP control and prediction software can connect to the array via LAN for command and control, Auto-EQ and to calculate sound prediction on listener areas. With the CMAP (mapping optimization mode), the vertical dispersion can be adjusted and optimized according to the listener area.
