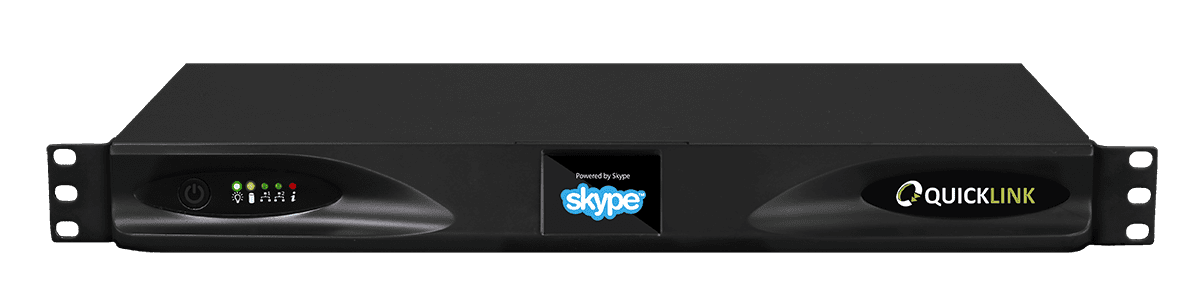

Quicklink – TX DUO

I/O Interfaces

More details

Similar Products

focusrite-rednet-D16R_600px_0|focusrite-rednet-D16R_600px_0
  • Focusrite

Focusrite – RedNet D16R

RedNet D16R AES is a 1U, 19in rack-mount Dante interface featuring 16 channels of AES/EBU connectivity to and from the Dante audio network. RedNet D16R AES is a 1U, 19in rack-mount Dante interface featuring 16 channels of AES/EBU connectivity to and from the Dante audio network. Perfect for bridging between digital consoles, power amplifiers or any other AES3 equipped audio equipment and any Dante network, RedNet D16R has SRC (Sample Rate Conversion) on each input pair allowing plug-and-play operation with any AES3 source. Word Clock I/O and DARS (Digital Audio Reference Signal) connections allow synchronisation with a wide range of external sources and hardware, while S/PDIF I/O allows the integration of equipment such as CD or solid-state recorders/players. Key features
  • 16 Channel bi-directional RedNet AES3 Interface for Dante Networks.
  • Power supply and Ethernet redundancy with auto switchover in case of failure, and locking etherCON network connectors.
  • Sample rate conversion allows external equipment to run at any sample rate.
  • Compact 1U chassis allows maximum functionality in minimum rack space.
  • Two 8-channel AES59 combined I/O DB25 connections, plus a pair of XLR3 connectors duplicating channels 1 & 2.
  • Rear panel XLR input connector either be used as a DARS input or as a traditional AES3 audio input.
  • S/PDIF input and outputs provided on RCA connectors; ideal for connecting CD players or solid-state recorders.
  • Word Clock I/O on BNC connectors allows synchronisation of the Dante network to house clock, or syncing external equipment to the Dante network.
  • RedNet Control and Dante control software allow routing and control from your audio computer system via a software control panel – no hardware patching required.
    I/O Interfaces
  • Dante Ch: 16x16
  • 24-bit
See the product
ru-mlb4p_400px|ru-mlb4p_400px
  • RDL

RDL – RU-MLB4P

The RU-MLB4 is a high quality mic/line-level bi-directional Dante network interface. The RU-MLB4 converts four mic or line-level audio sources to Dante network channels, and four Dante network audio signals to balanced line level. LED audio signal indicators are provided. Model RU-MLB4P operates from PoE. The RU-MLB4 is a high quality mic/line-level bi-directional Dante network interface. The RU-MLB4 converts four mic or line-level audio sources to Dante network channels, and four Dante network audio signals to balanced line level.  Each input is switch-selectable for mic or line level. In the mic position, the balanced input provides P48 phantom to an associated microphone jack. Connection of a dynamic microphone automatically sets the preamplifier gain to 60 dB. Connection of a condenser microphone automatically sets the gain to 40 dB. The automatic gain setting is always active so that no user adjustment is required when changing microphones. The RU-MLB4 is also available in a PoE version (RU-MLB4P). If PoE power and an external 24 Vdc supply are both feeding an RU-MLB4P, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external supply.
    I/O Interfaces
See the product
monacor-dadc-144dt
  • Monacor

Monacor – DADC-144DT

Monacor's DADC-144DT is a 4-channel Dante® transceiver. Monacor's DADC-144DT is a 4-channel Dante® transceiver.
  • 4 analogue XLR audio inputs
  • 4 analogue XLR audio outputs
  • 4-channel Dante® input/output (EtherCon/RJ45)
  • Analogue input and output levels can be adjusted individually via recessed potentiometers
  • 48 V phantom power can be activated as required for each analogue input
  • Mute function for each analogue output
  • Dante® sources and Dante® receiver can be combined via software
  • Encoding/decoding: 16/24/32 bits
  • Sampling rates: 44.1/48/88.2/96 kHz
  • Frequency range: 20-20,000 Hz
  • LED display for indicating signal, peak, network link, network act and power
  • Metal housing
  • 482 mm (19") rack installation, 1 RS
    I/O Interfaces
See the product
