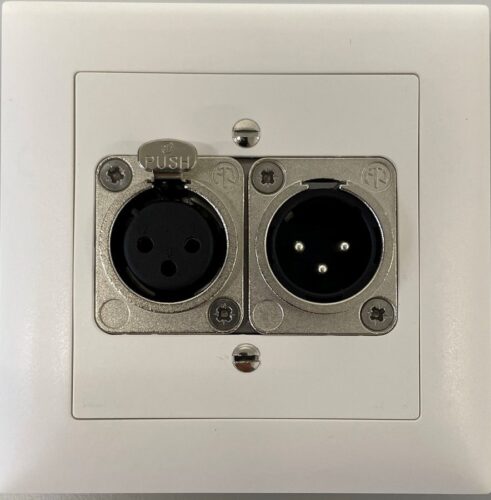

promedias – proDT XI/O UP

I/O Interfaces

More details

Similar Products

digigram-AUDIOWAY-bridge-B3_1200px_0
  • Digigram

Digigram – Audioway Bridge B2

The BRIDGE B2 is an intelligent gateway between MADI digital audio and AES67/Dante™ synchronous audio-over-IP streams. Forming the backbone of your infrastructure, the BRIDGE B2 is the ideal solution to distribute and interconnect your MADI and AES67/Dante mission-critical streams in the studio. The BRIDGE B2 is an intelligent gateway between MADI digital audio and AES67/Dante™ synchronous audio-over-IP streams. Forming the backbone of your infrastructure, the BRIDGE B2 is the ideal solution to distribute and interconnect your MADI and AES67/Dante mission-critical streams in the studio.
  • Stainless steel 1U chassis power consumption <50 W
  • Front panel control interface for rapid overview of current status
  • Dual AC/DC power supply 4 configurable GPIOs Wordclock synchronisation 24-bit audio routing: 44.1 kHz to 96 kHz
  • AES67/Dante interface: 64-in/64-out EtherCON connector AoIP stream redundancy Integrated 4-port switch
  • MADI interface: 1 x optical 64-in/64-out connector 1 x BNC 64-in/64-out connector
    I/O Interfaces
See the product
danacoid
  • Danacoid

Danacoid – DN-210RXC

Video: HDMI v2.0 and HDCP 2.0

Supported resolution: 4096 x 2160 /60P (4:4:4)；

Supports wiring of up to 8 HDMI embedded LPCM digital audio channels, as well as 24bit,192kHz sampling frequency for each sample.

Supports transmission of embedded HBR audio formats: such as Dolby digital true HD and DTS-HD Master Audio.

IP network-based audio, supports transmission of network-based audio via switches

2 * USB ports, supports KVM function

IR Control: Supports bidirectional IR transmission

RS-232 Control: supports bidirectional RS-232 transmission, up to 115,200 baud

HDMI input 1 * 19-pin female HDMI interface

Analog stereo audio: 1 * 3.5mm stereo-mini jack

10GbE and 1GbE ports: 2 * shielding RJ45 interface and LED indicator light

1 * IR input: 3.5mm stereo mini jack

Maximum pixel clock frequency: supports pixel clock frequency up to 594MHz

Switching Plane: independent switching planes supported I/O switch arrays of all connected videos, audios, RS-232 and IR signals

    I/O Interfaces
See the product
